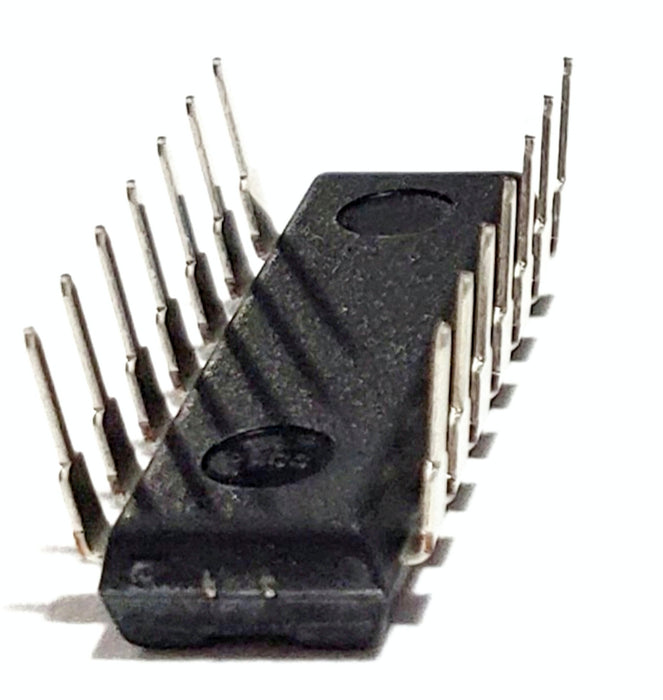

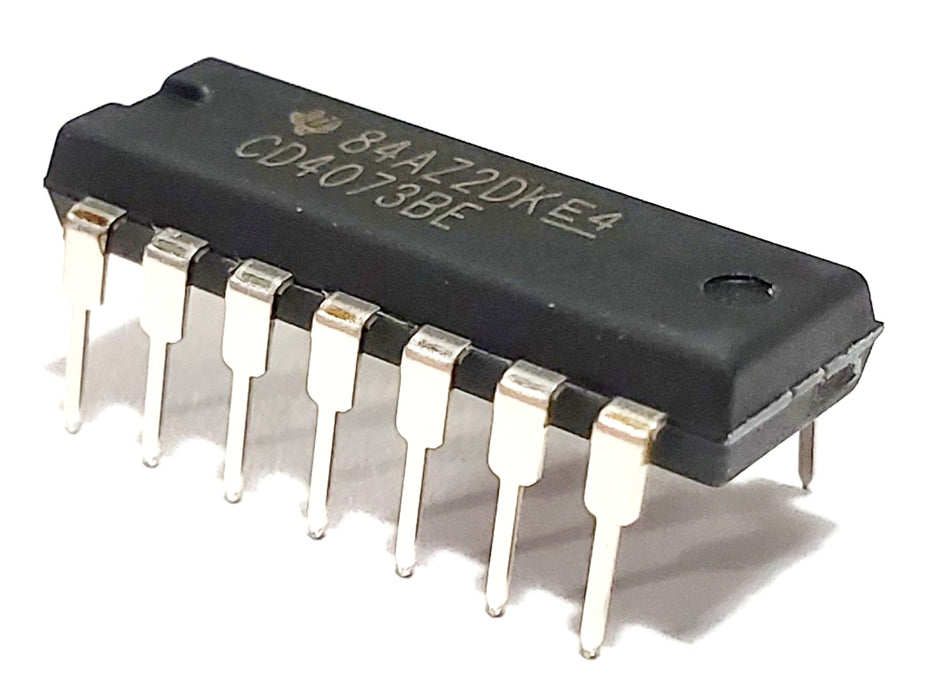

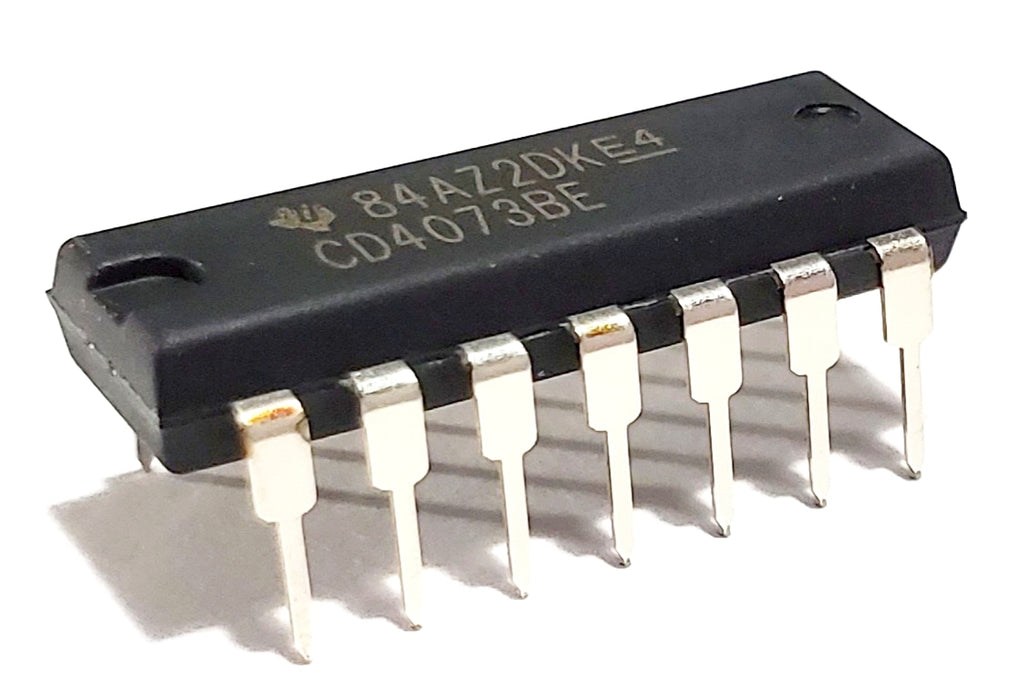

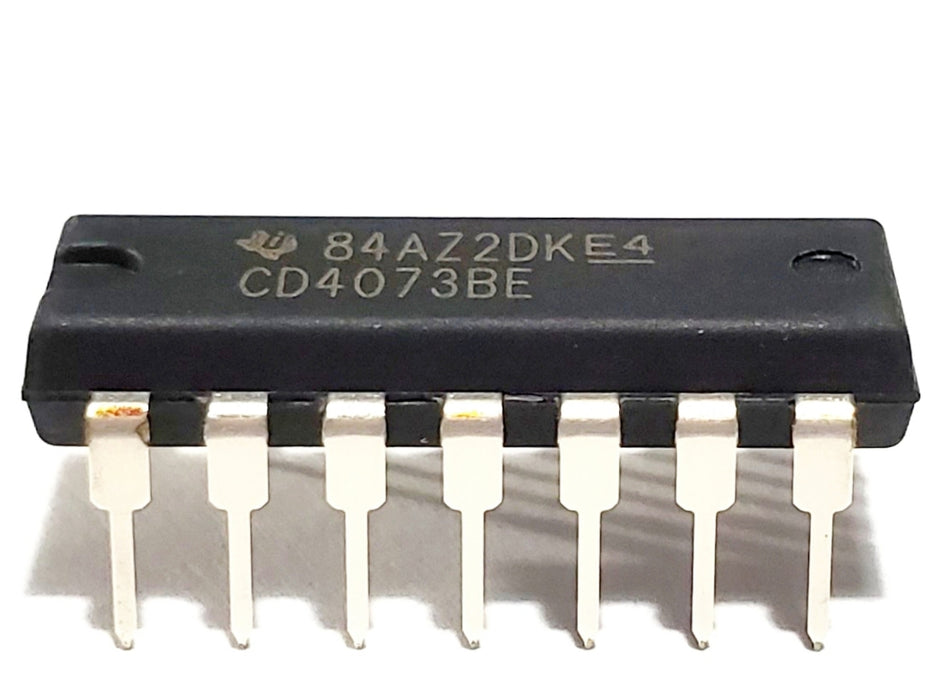

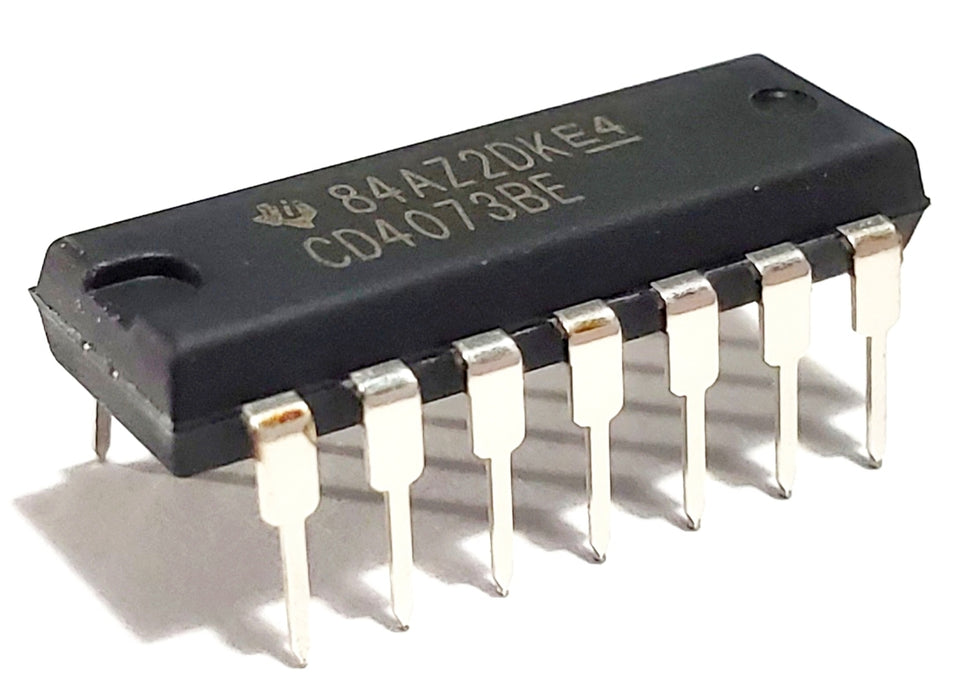

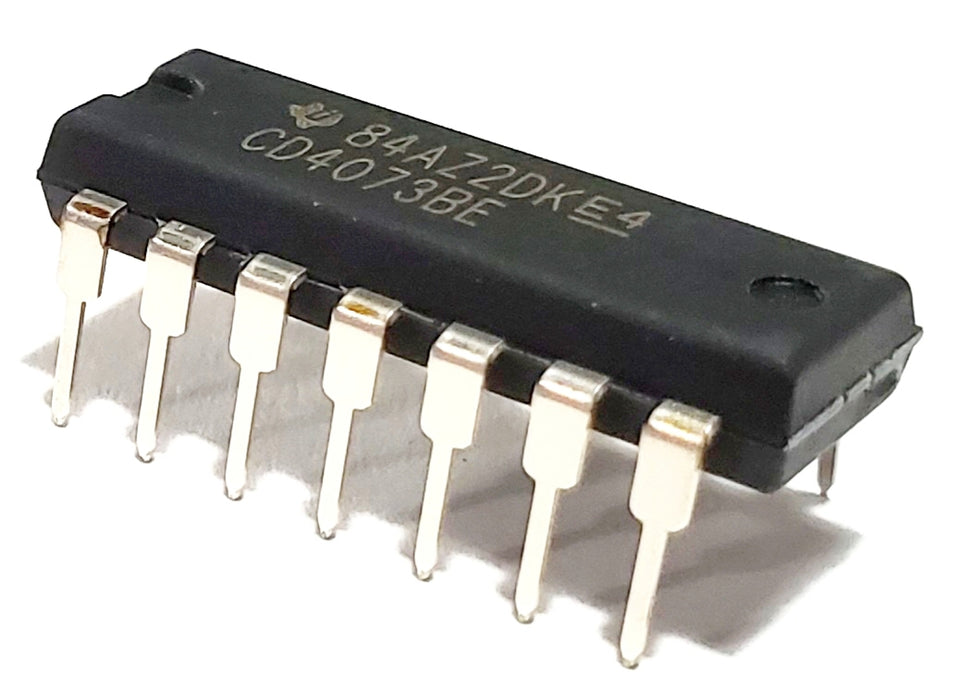

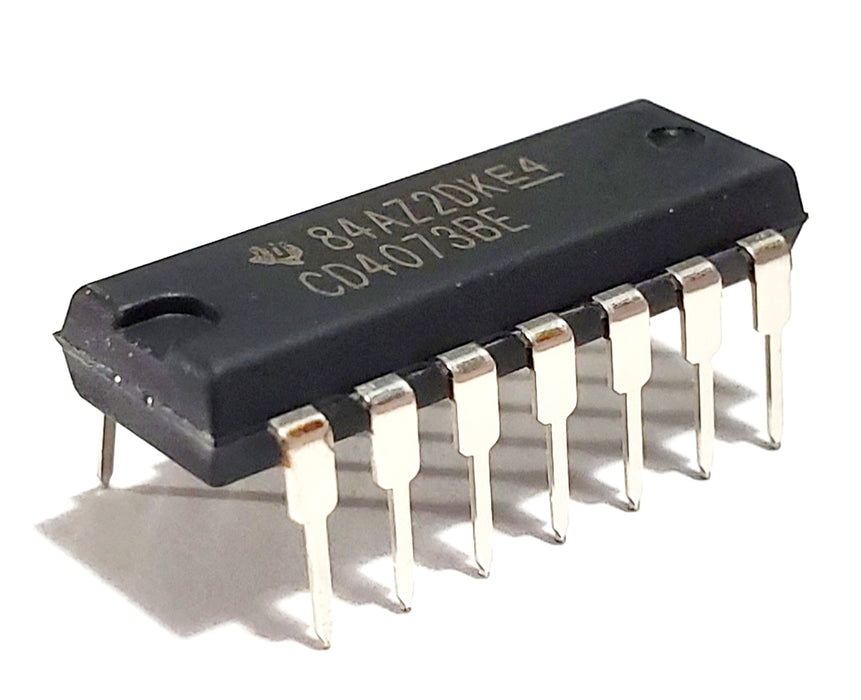

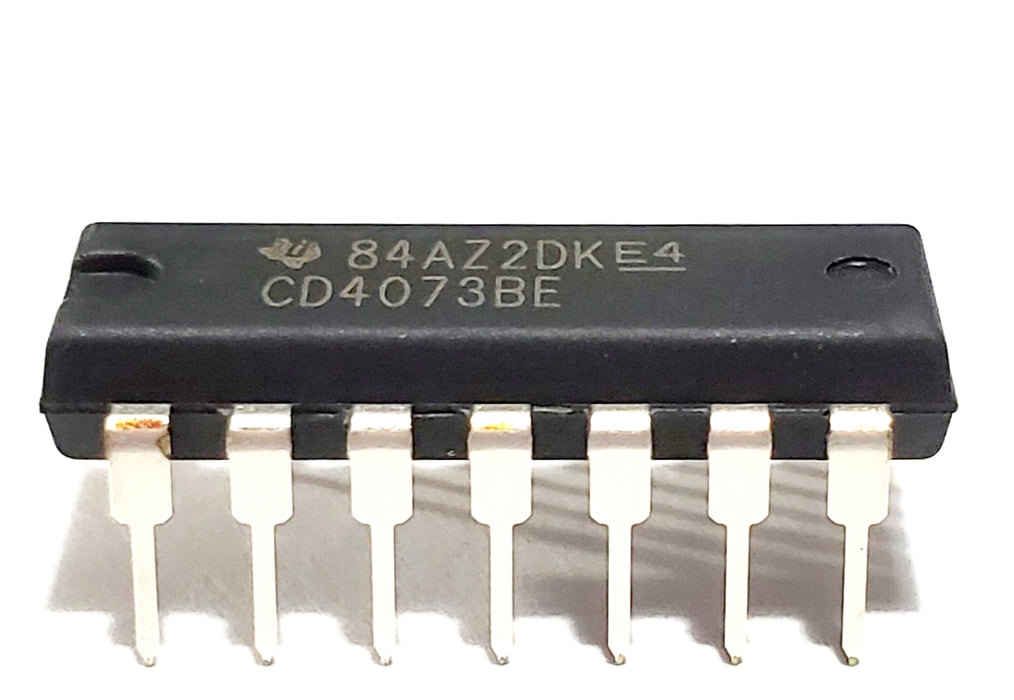

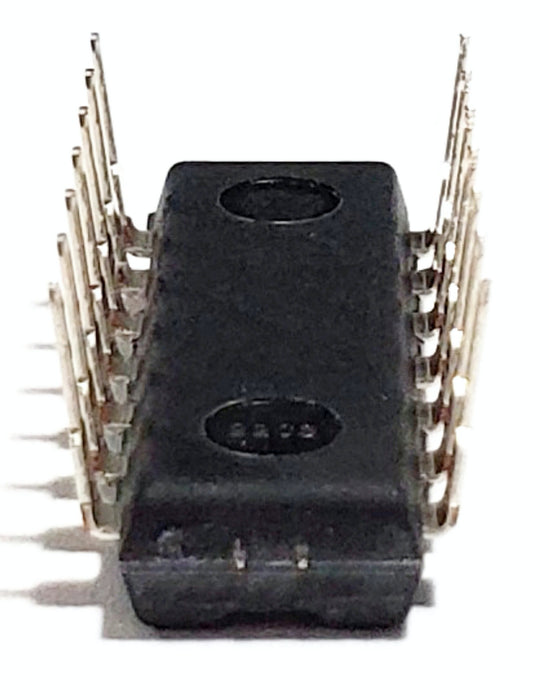

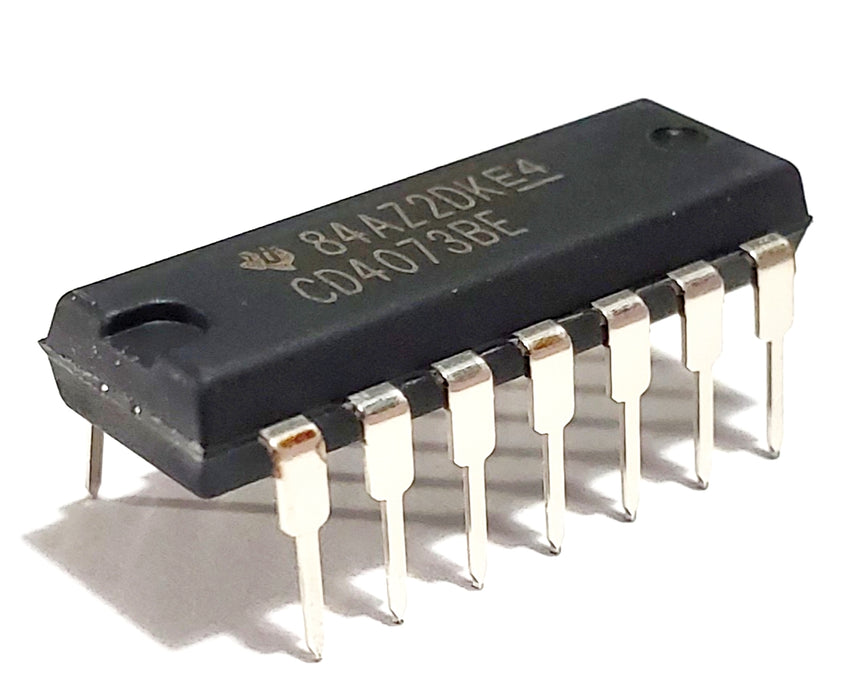

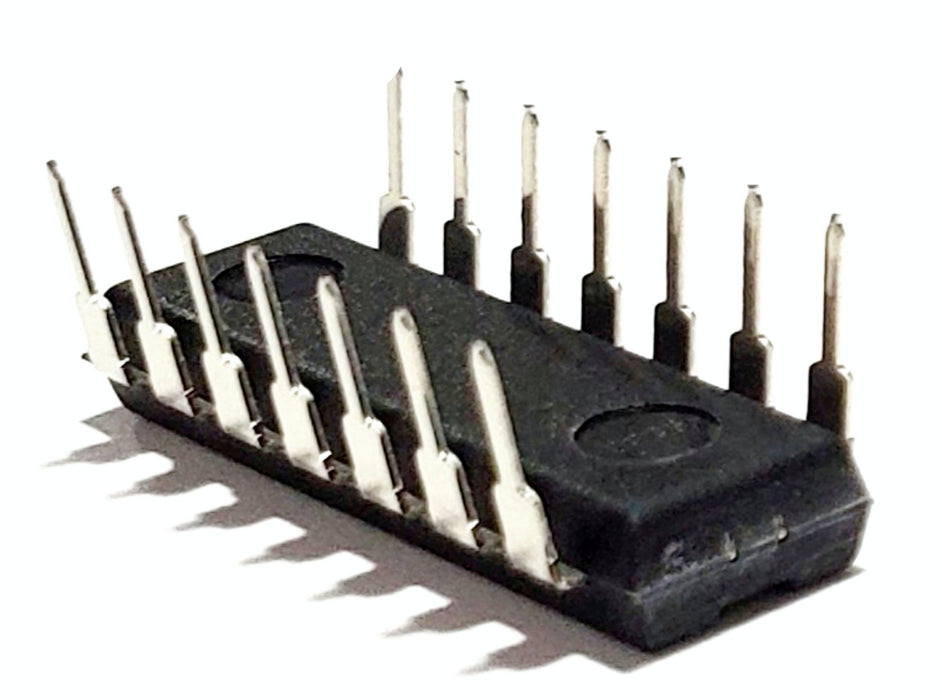

CD4073BE CD4073 4073 CMOS Triple 3-Input and Gate Breadboard-Friendly IC DIP-14

Description:

The CD4073B Triple 3-Input AND gates, provide the system designer with direct implementation of the AND function and supplement the existing family of CMOS gates.

Included:

• CD4073BE

This item features:

• Medium-Speed Operation - tPLH, tPHL = 60 ns (typ.) at VDD = 10 V
• 100% tested for quiescent current at 20 V
• Maximum input current of 1 µA at 18 V over full package-temperature range:  100nA at 18 V and 25°C
• Noise margin (full package-temperature range) =
  • 1 V at VDD = 5 V
  • 2 V at VDD = 10 V
  • 2.5 V at VDD = 15 V
• Standardized, symmetrical output characteristics
• 5-V, 10-V, and 15-V parametric ratings
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"

Condition:

• New and Authentic Component(s) - CD4073BE CMOS Triple 3-Input AND Gate ICs.
• Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
