Description:
The CD4002B NOR gates provide the system designer with direct implementation of the NOR function and supplement the existing family of CMOS gates. All inputs and outputs are buffered.
Included:
- CD4002BE
This item features:
- Propagation delay time = 60 ns (typ.) at CL = 50 pF, VDD = 10 V
- Buffered inputs and outputs
- Standardized symmetrical output characteristics
- 100% tested for maximum quiescent current at 20 V
- 5-V, 10-V, and 15-V parametric ratings
- Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
- Noise margin (over full package temperature range):
-
1 V at VDD = 5 V
2 V at VDD = 10 V
2.5 V at VDD = 15 V
Condition:

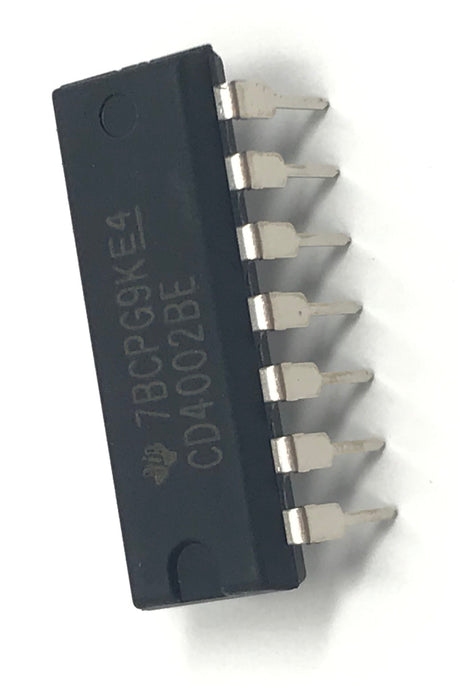

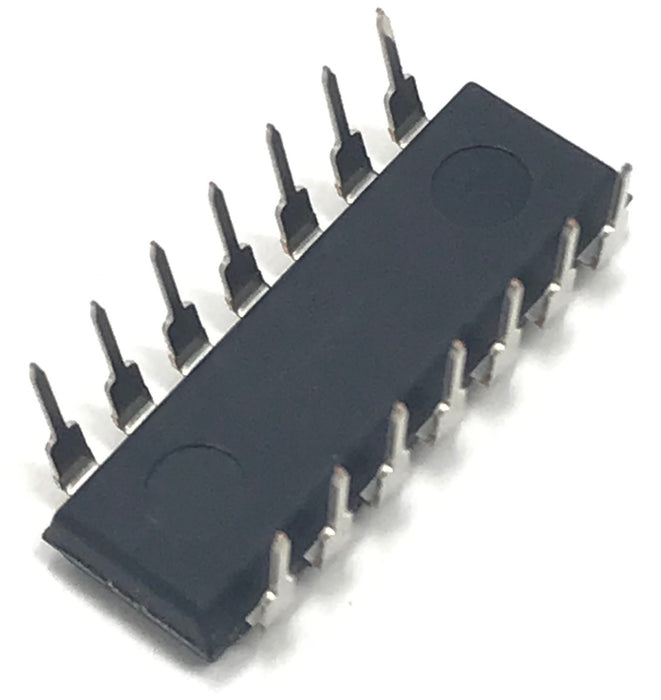

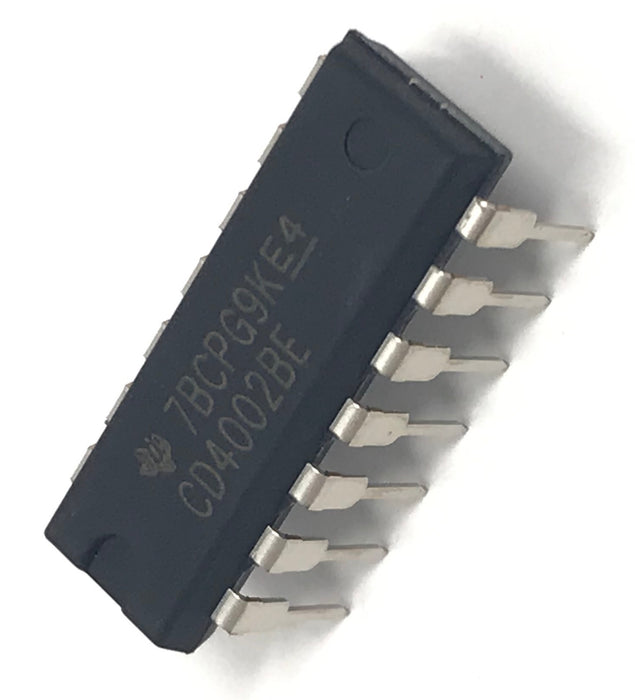

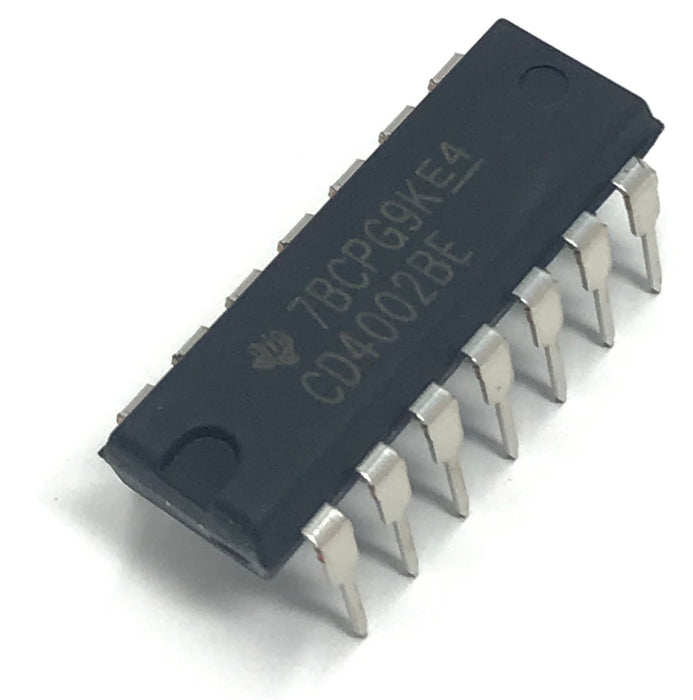

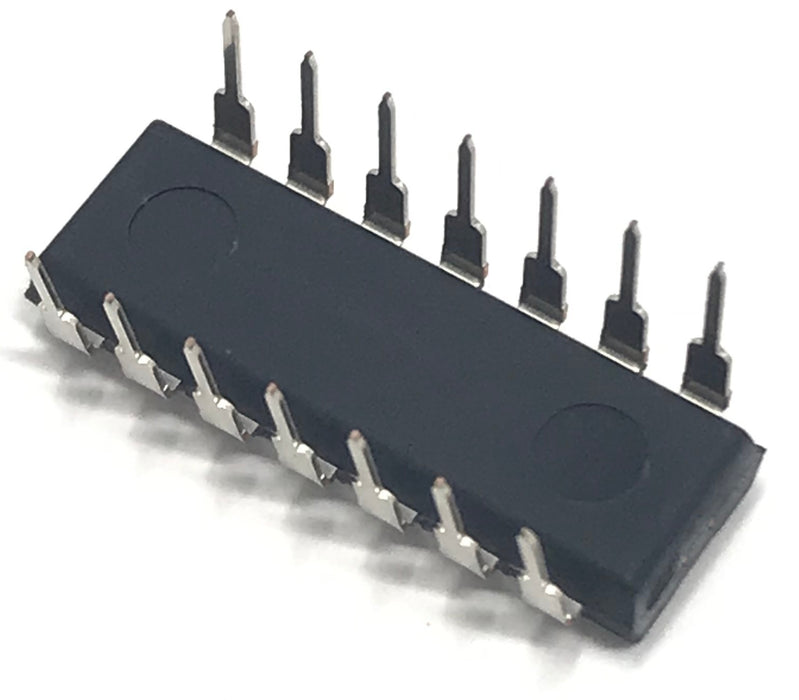

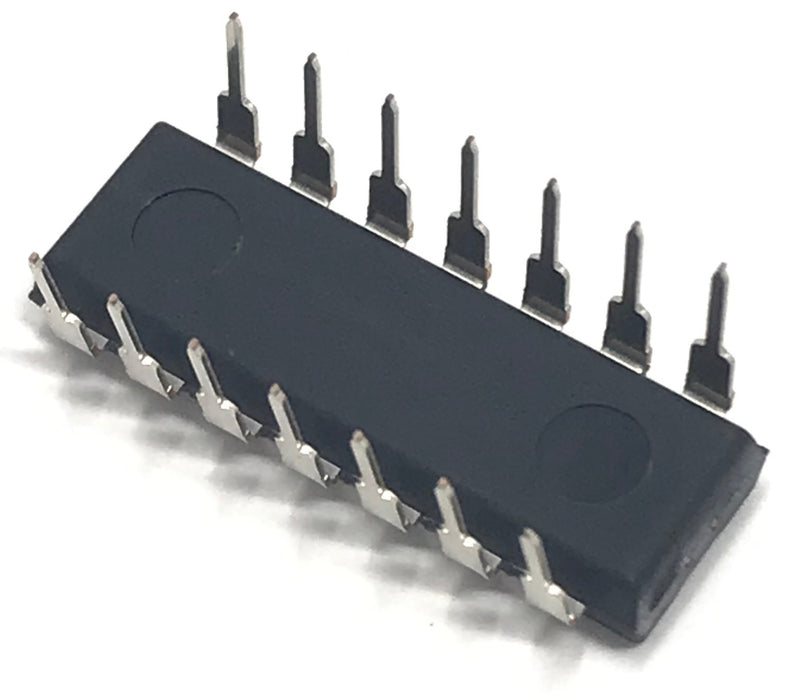

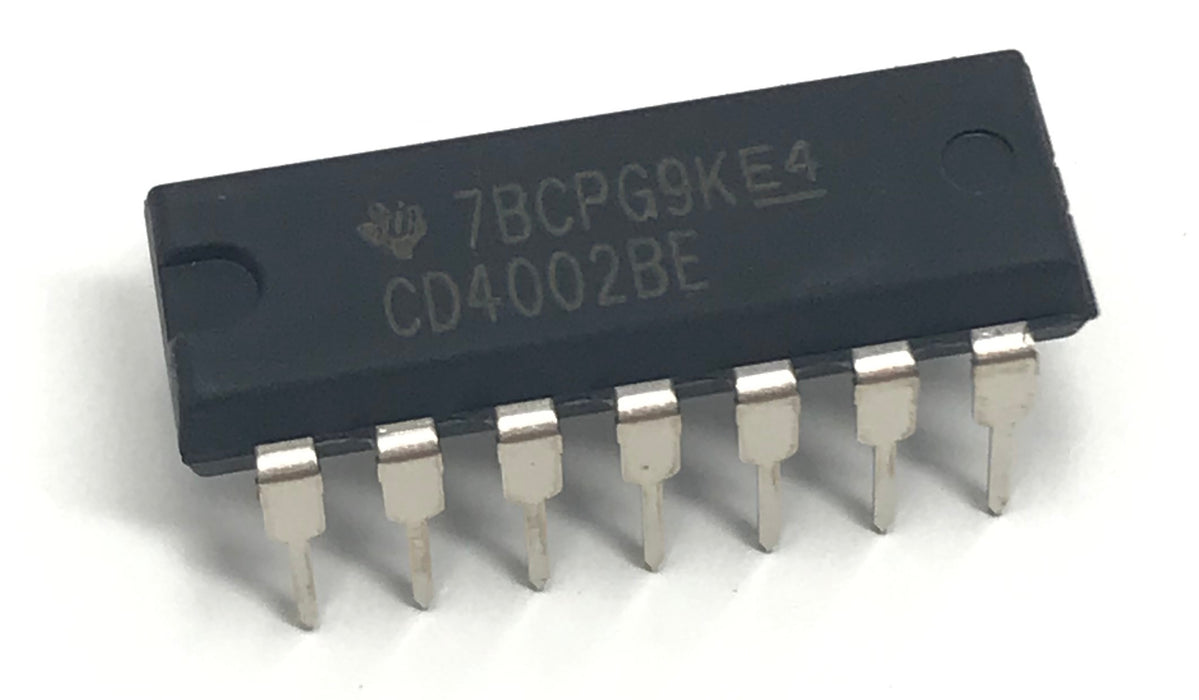

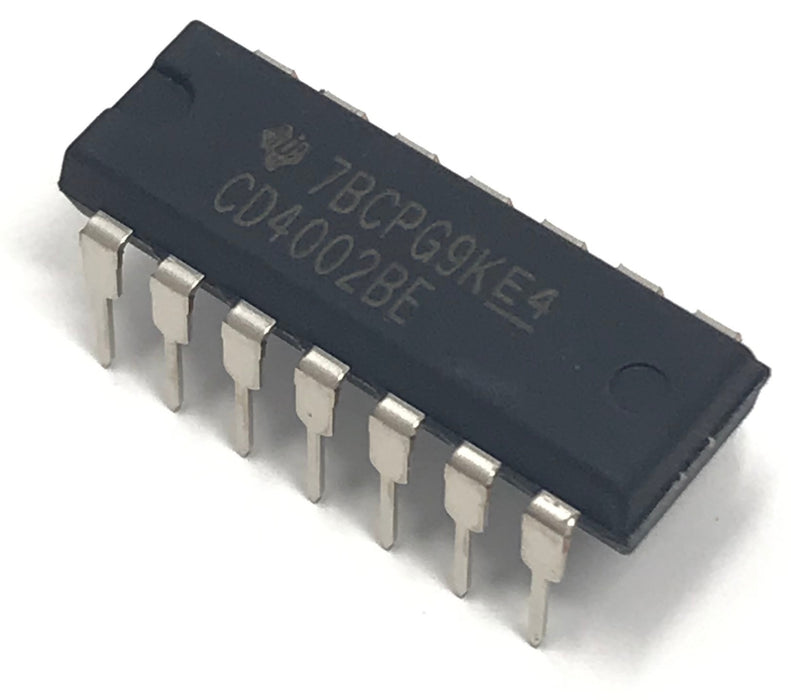

- New and Authentic Component(s) - CD4002BE CMOS Dual 4-Input NOR Gate ICs.
- Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
