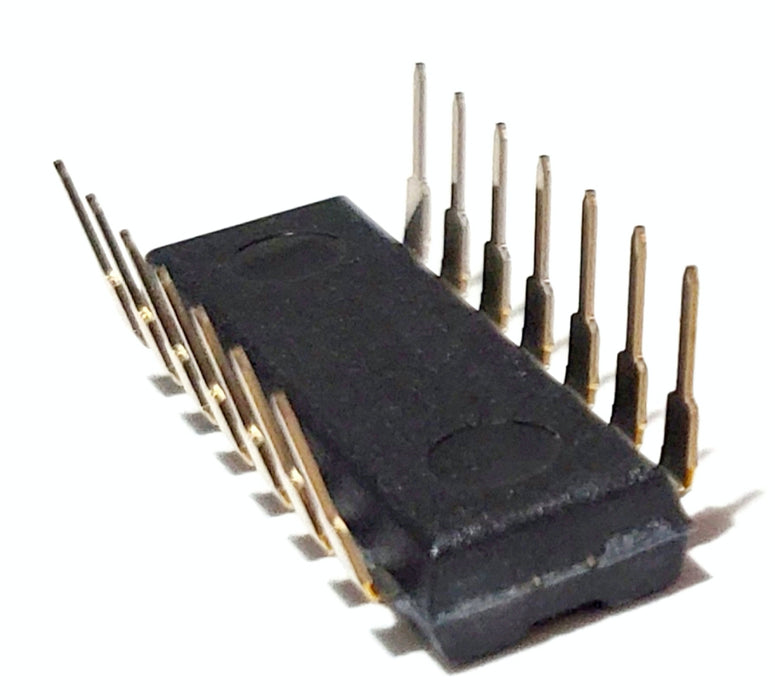

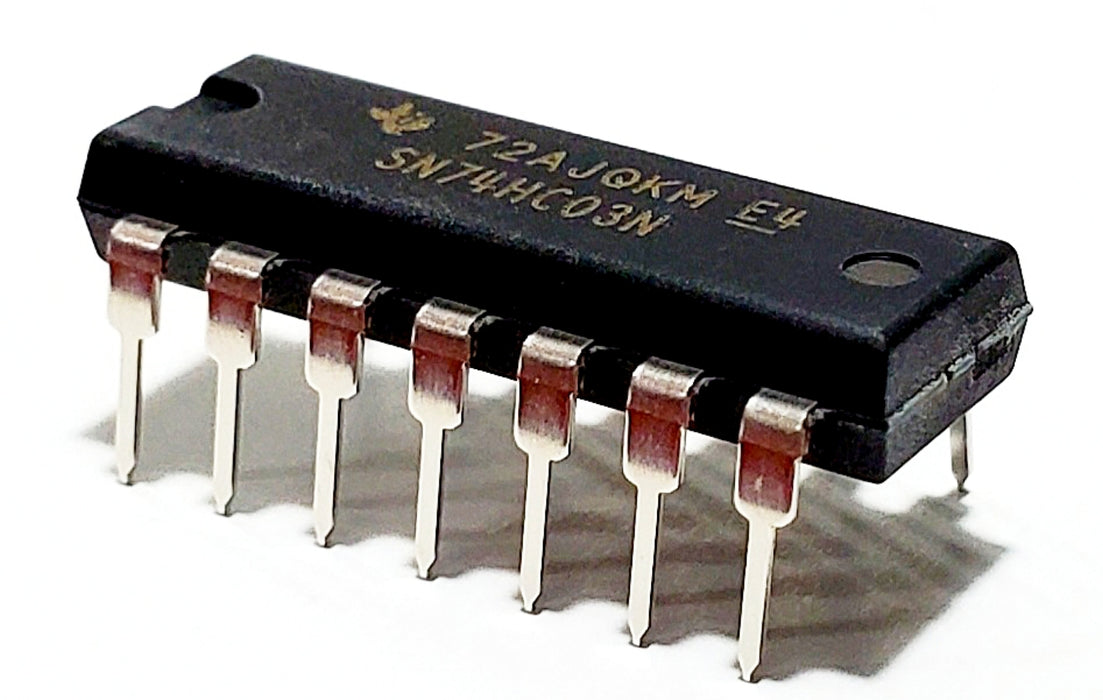

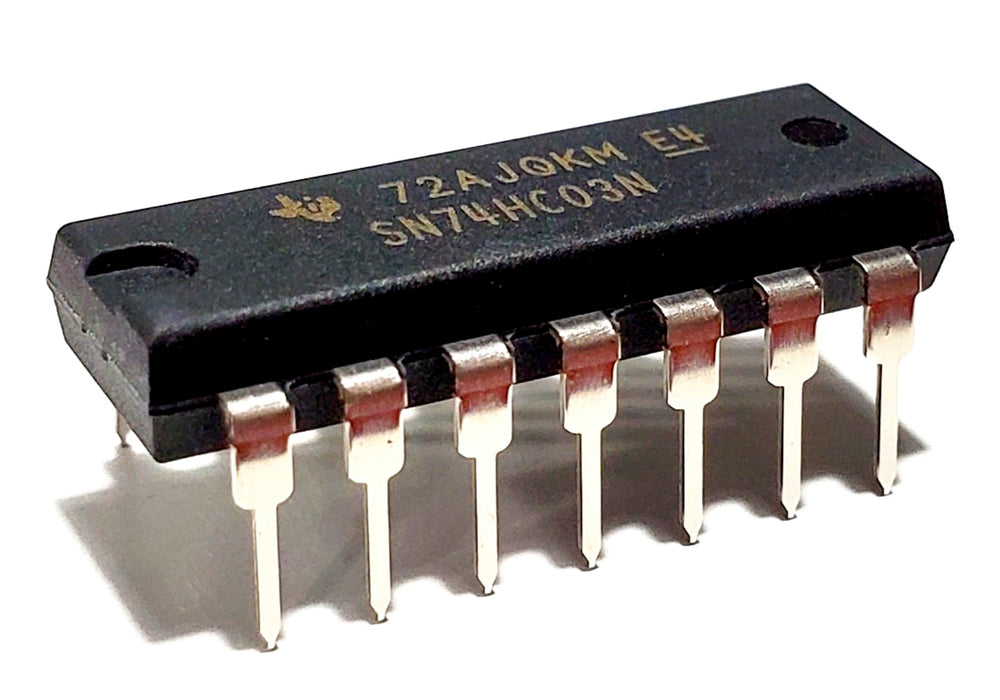

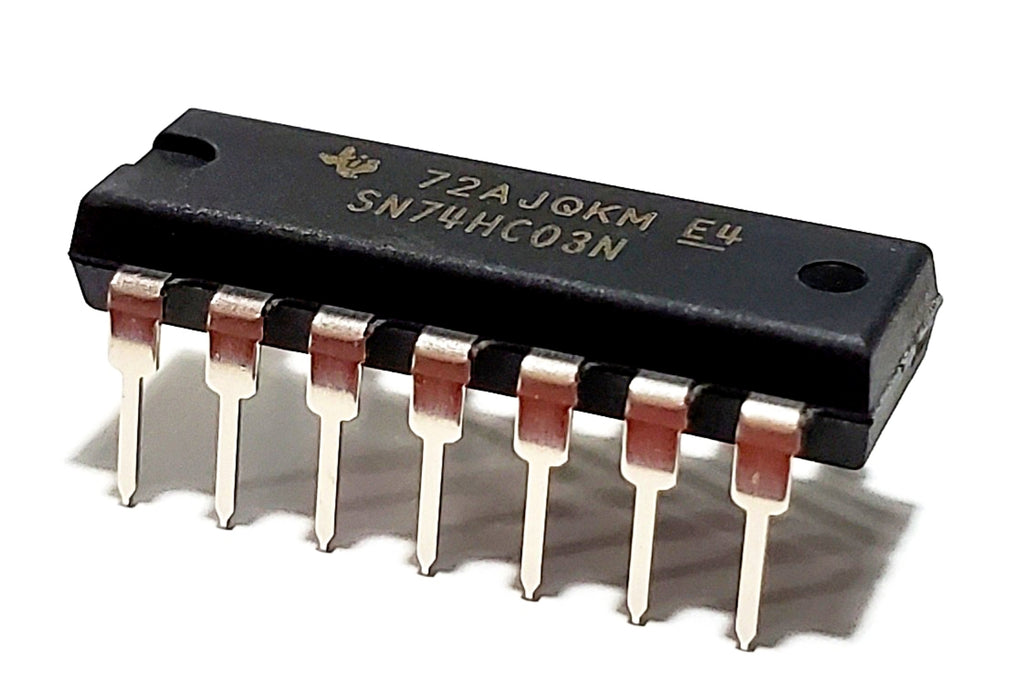

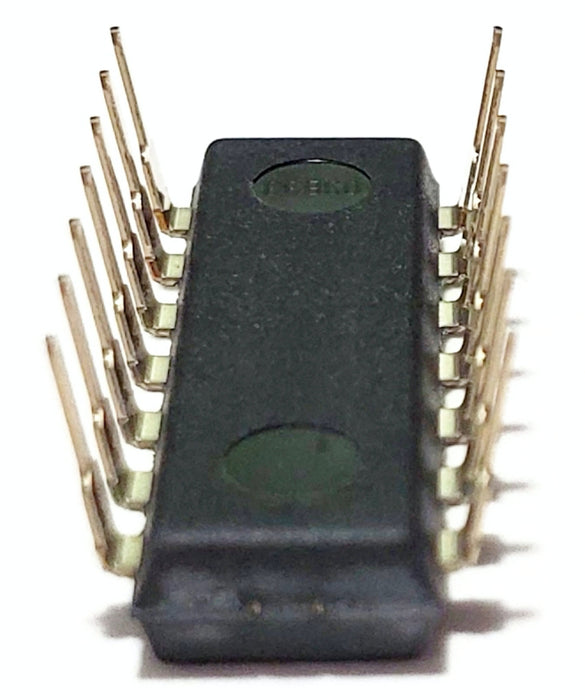

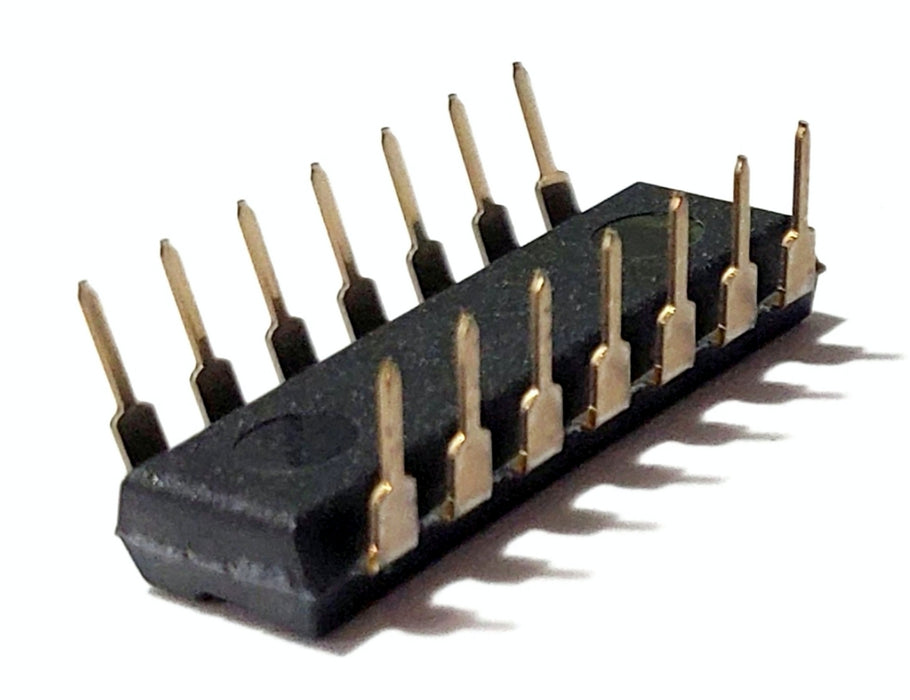

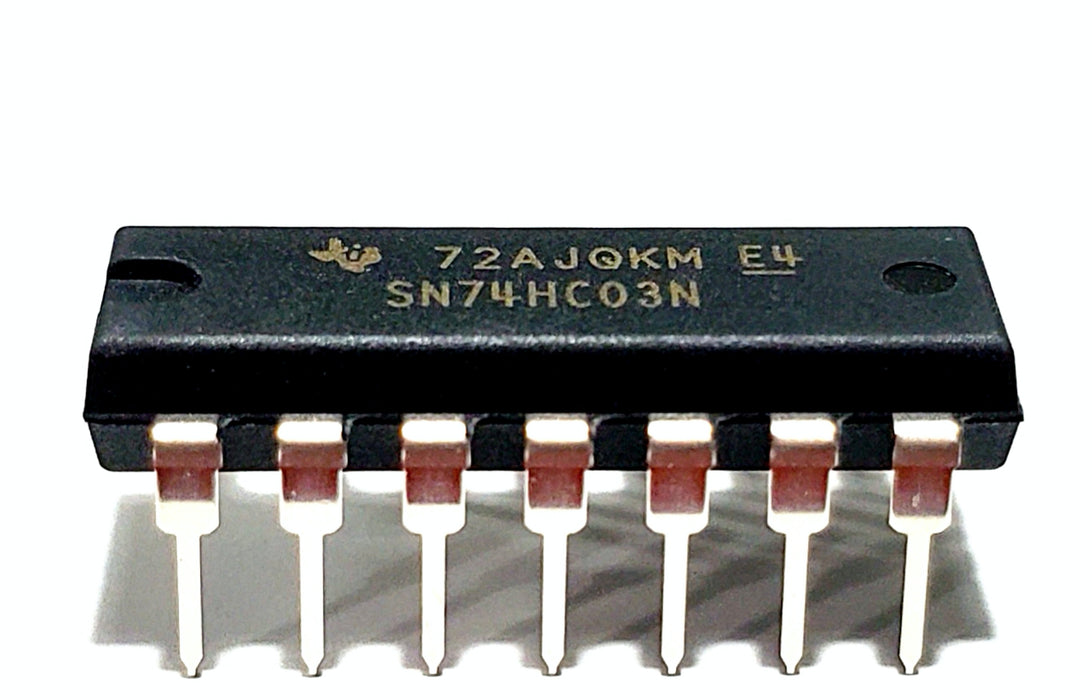

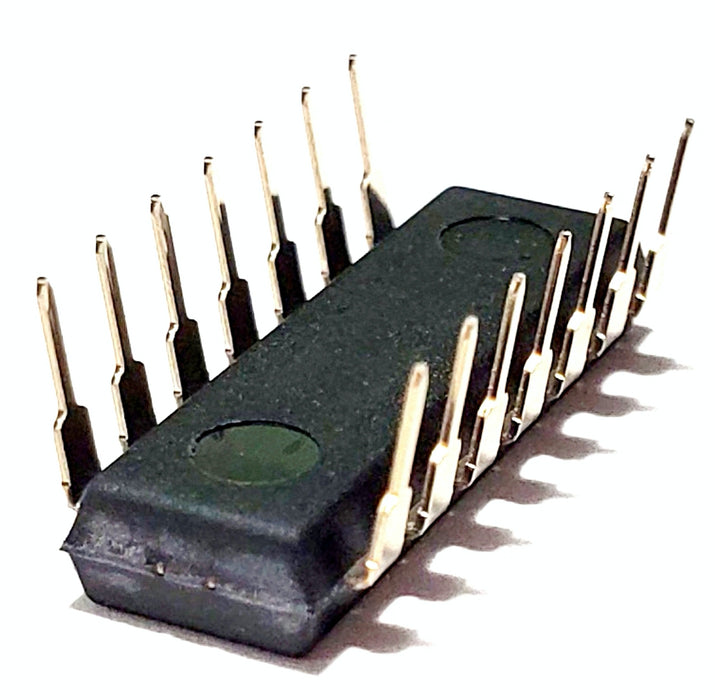

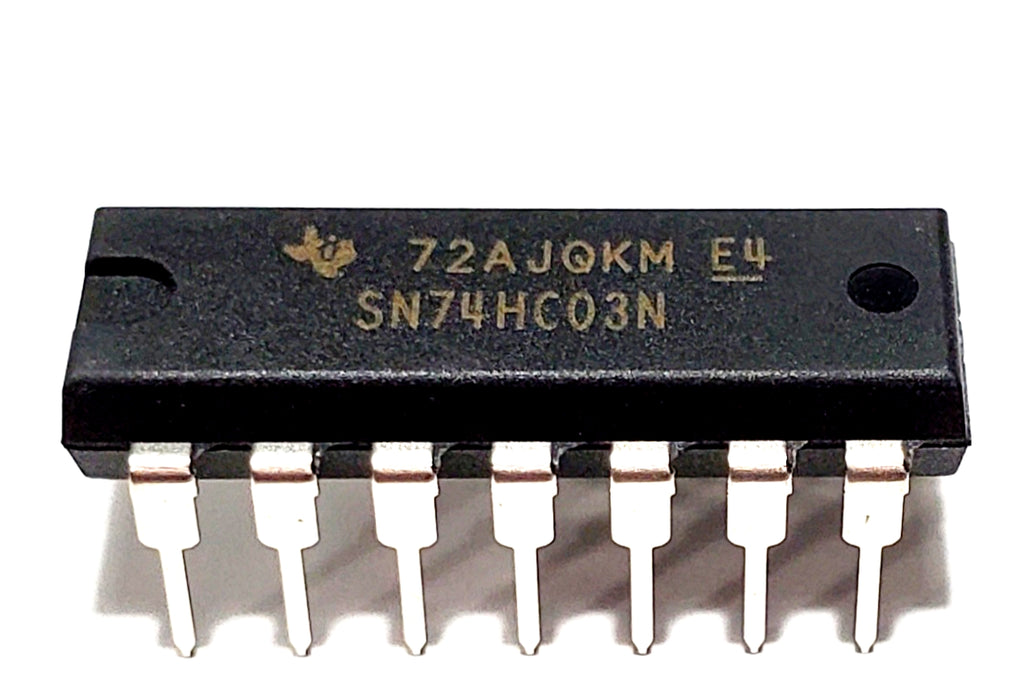

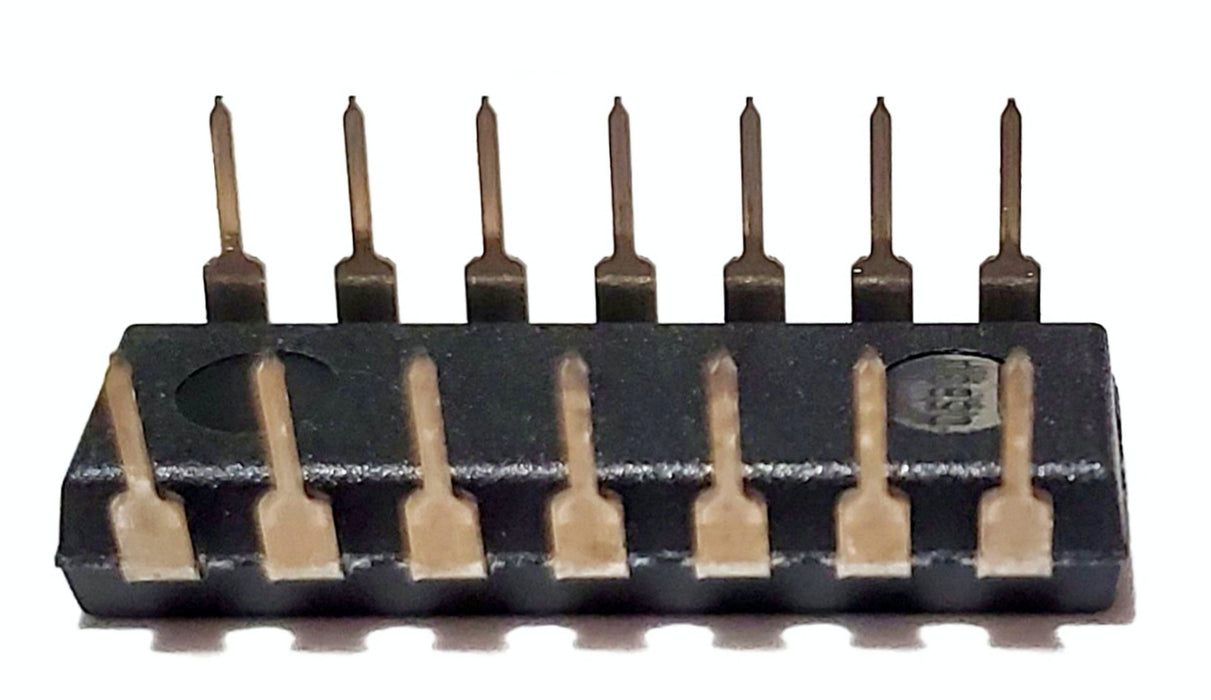

Texas Instruments SN74HC03N 74HC03 Quadruple 2-Input Positive-NAND Gates (Pack of 1)

  • $6.98


Description:

The SN74HC03 devices contain four independent 2-input NAND gates. They perform the Boolean function Y = (A • B)\ or Y = A\ + B\ in positive logic. The open-drain outputs require pullup resistors to perform correctly. They may be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.

Included:

1 X SN74HC03N

This item features:

  • Wide Operating Voltage Range of 2 V to 6 V
  • Outputs Can Drive Up to 10 LSTTL Loads
  • Low Power Consumption: Maximum ICC of 20 µA
  • Typical tpd = 8 ns
  • ±4-mA Output Drive at 5 V
  • Low Input Current of 1-µA Maximum



Condition:

  • New and Authentic Component(s) - Texas Instruments SN74HC03N Quadruple 2-Input Positive-NAND Gates With Open-Drain Outputs ICs.
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.

Shipping and general details:

  • Shipping is free in the United States and shipped via USPS First Class.
  • We do our best to offer you great pricing.
  • Orders are packaged in custom-cut (dependent on quantity of chips ordered) anti-static tubes, providing excellent ESD protection.
  • 30-Day Return Policy.
  • We are expanding on a daily basis. If you do not see the part, or quantity of the part, you are looking for, please, let us know. We will do our best to accommodate you.
