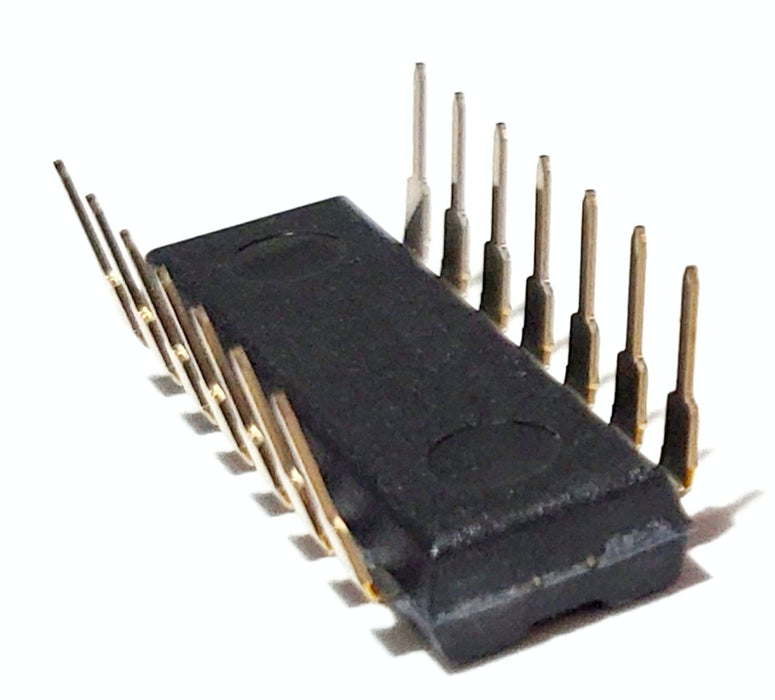

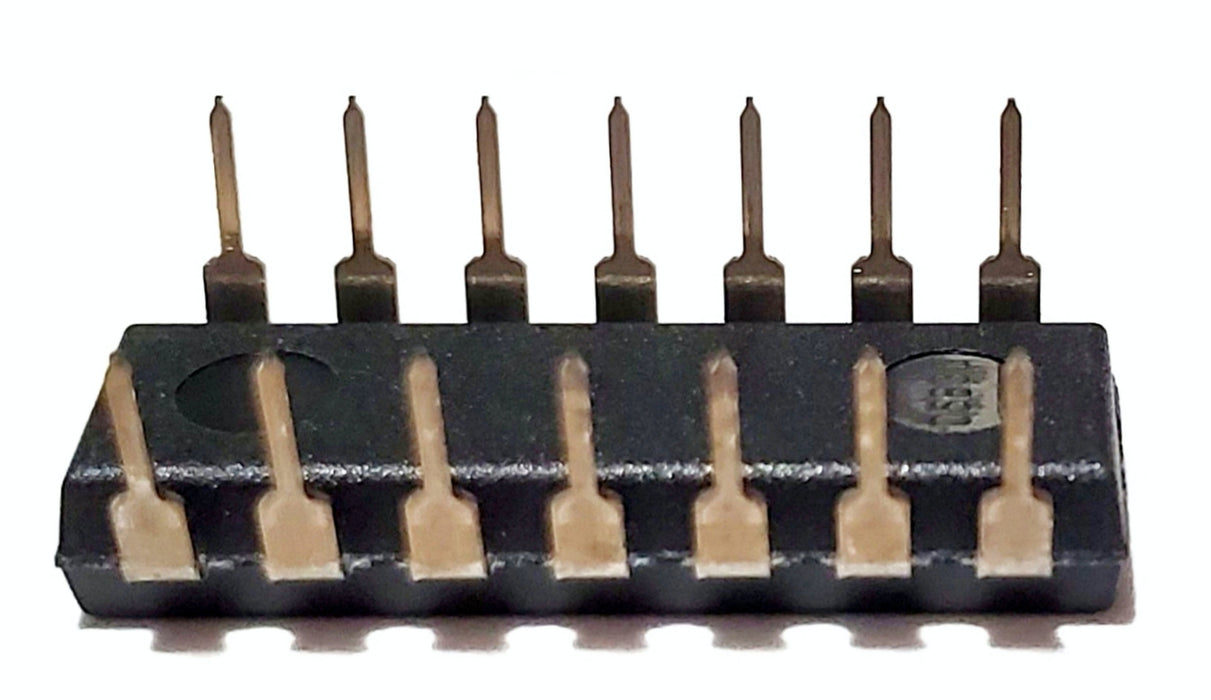

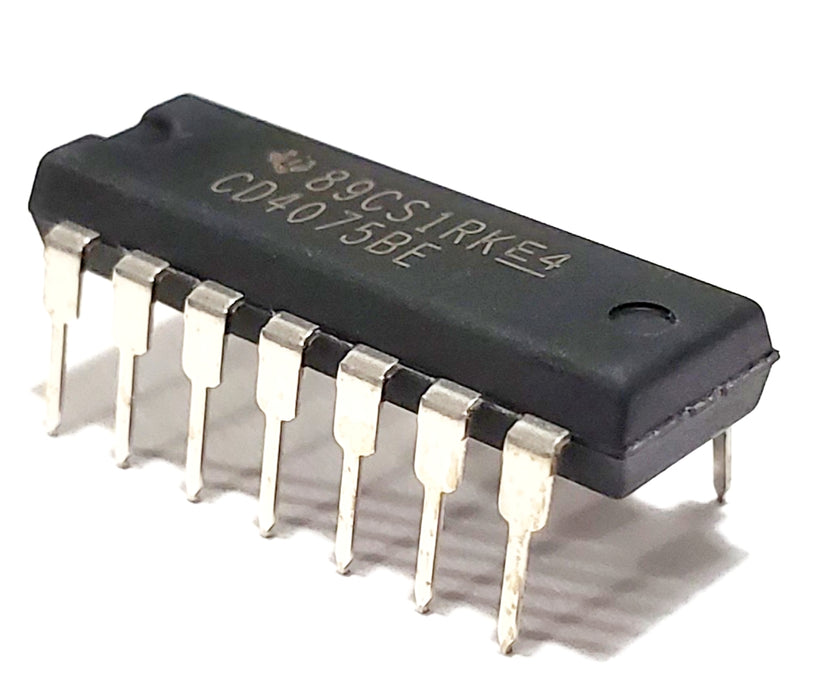

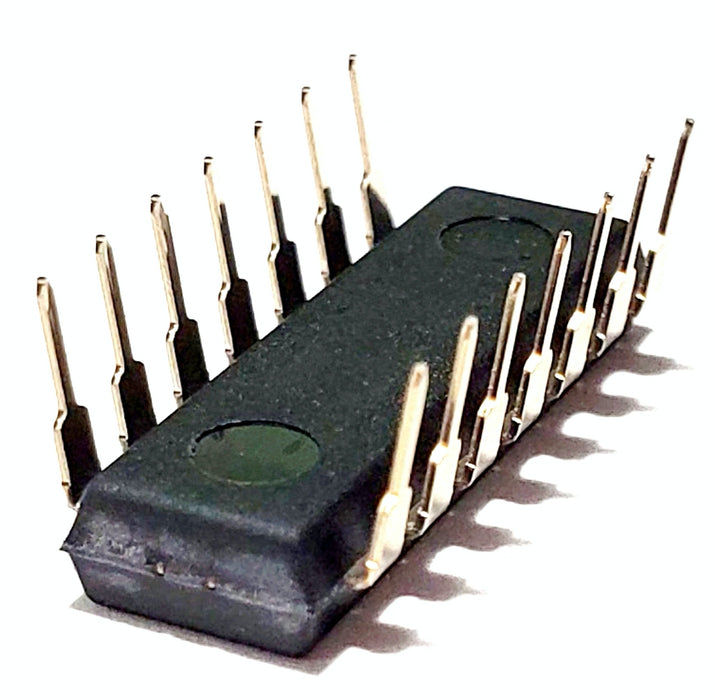

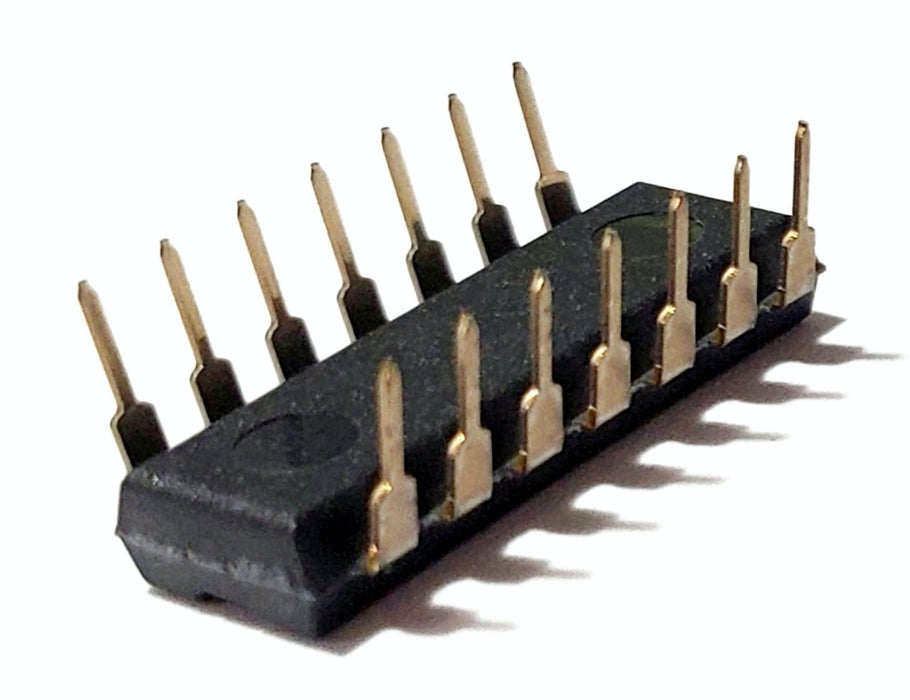

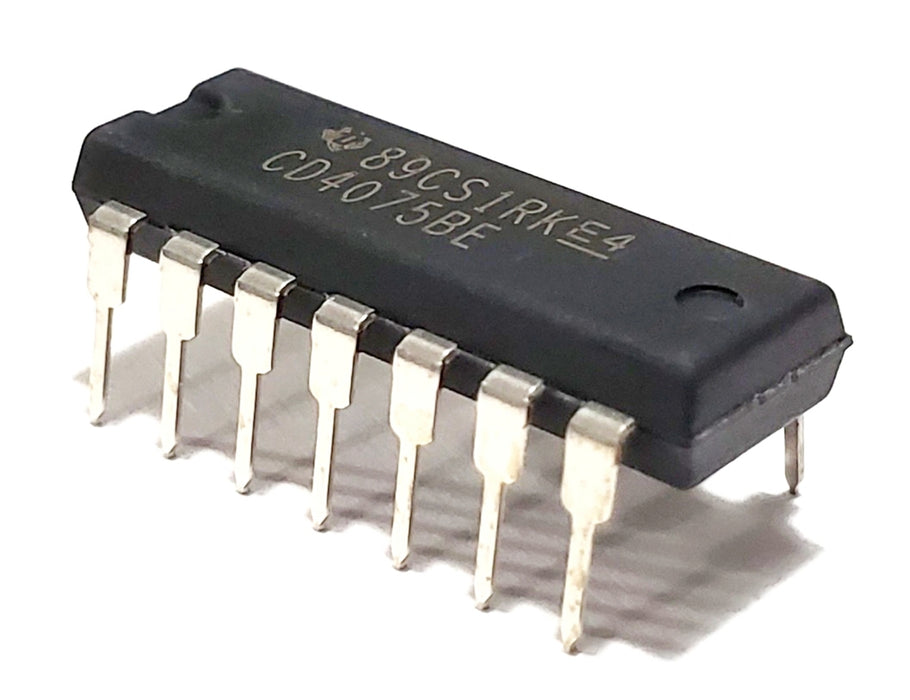

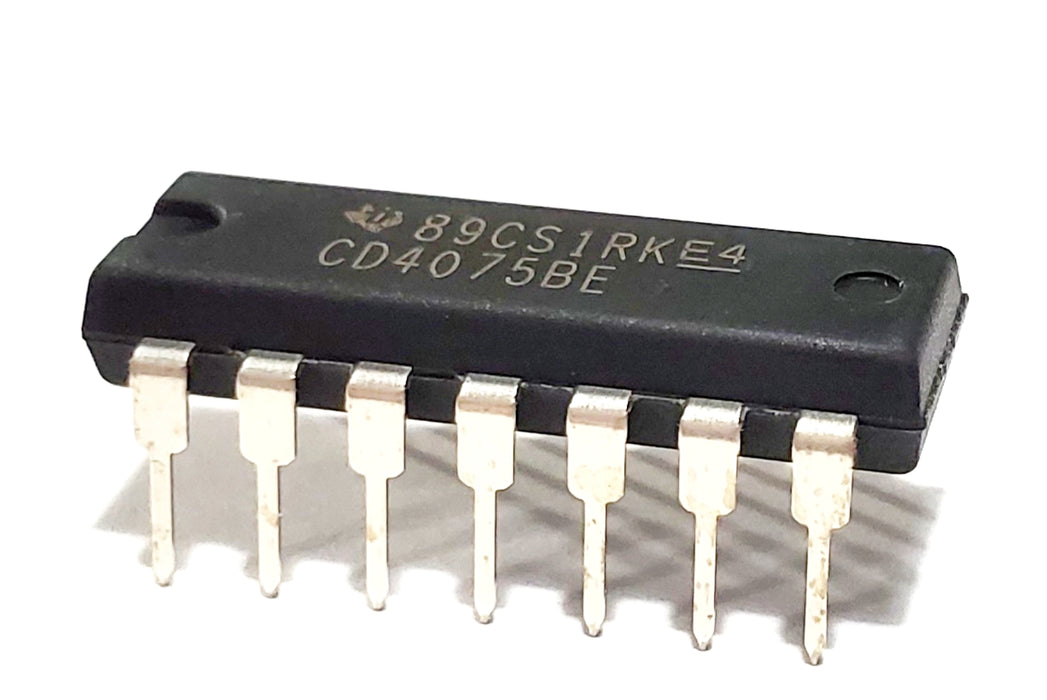

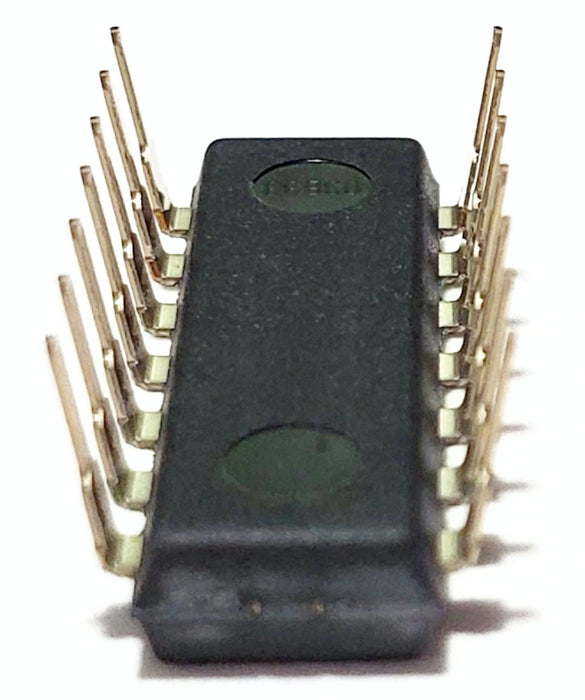

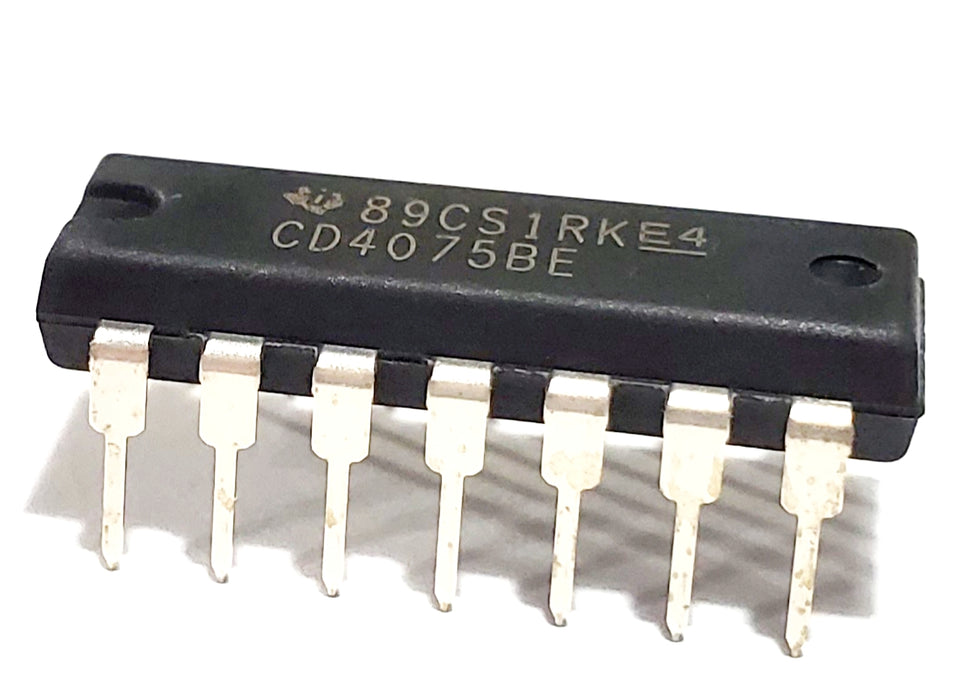

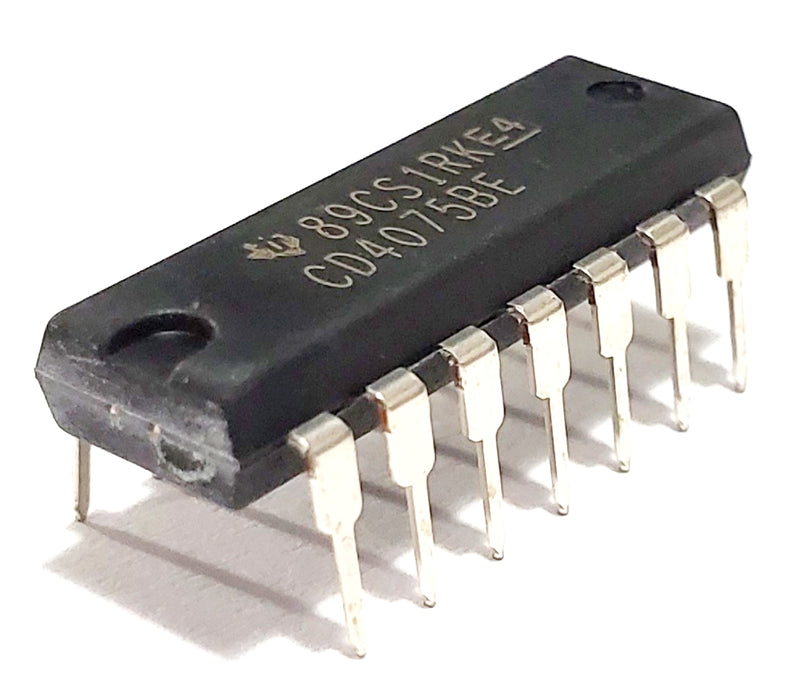

CD4075BE CD4075 CMOS Triple 3-Input OR Gate IC DIP14

Description:

The CD4075BE OR gates, provide the system designer with direct implementation of the positive-logic OR function and supplement the existing family of CMOS gates.

Included:

• CD4075BE


This item features:

• Medium-Speed Operation - t_PLH, t_PHL = 60 ns (typ.) at V_DD = 10 V
• 100% tested for quiescent current at 20 V
• Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
• Standardized, symmetrical output characteristics
• Noise margin (full package-temperature range):
       1 V at V_DD = 5 V
       2 V at V_DD = 10 V
    2.5 V at V_DD = 15 V
• 5-V, 10-V, and 15-V parametric ratings
• Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of âBâ Series CMOS Devices"

Condition:

• New and Authentic Component(s) - CD4075BE CMOS Triple 3-Input OR Gate IC.
• Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.

General details:

• We are expanding on a daily basis. If you do not see the part, or quantity of the part, you are looking for, please, let us know. We will do our best to accommodate you.
