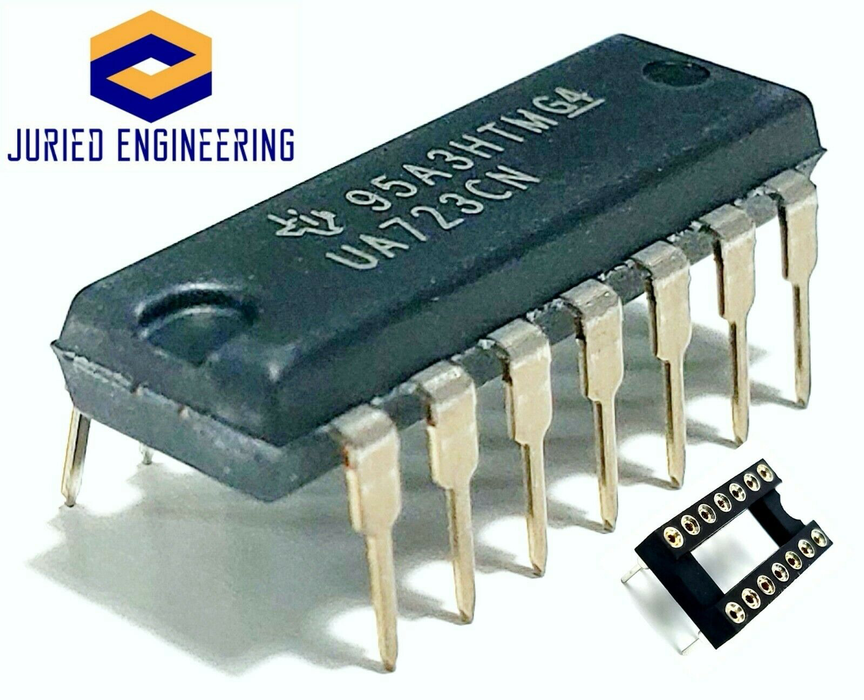

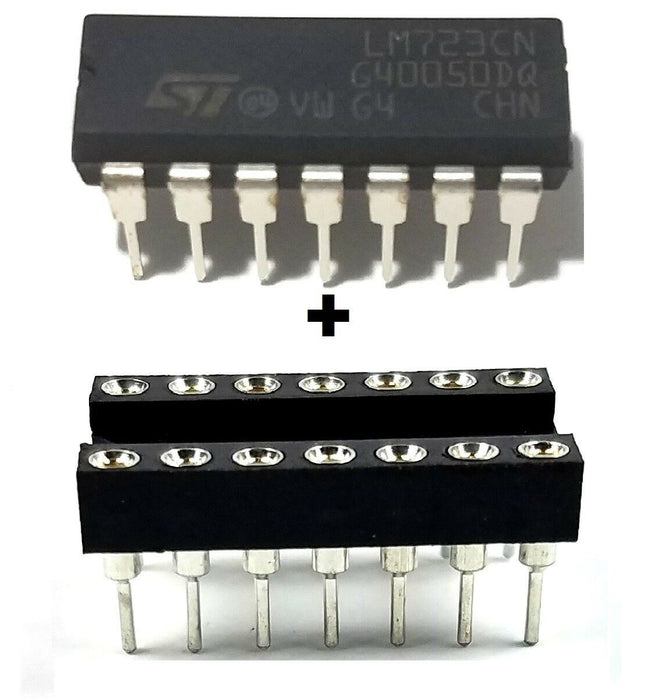

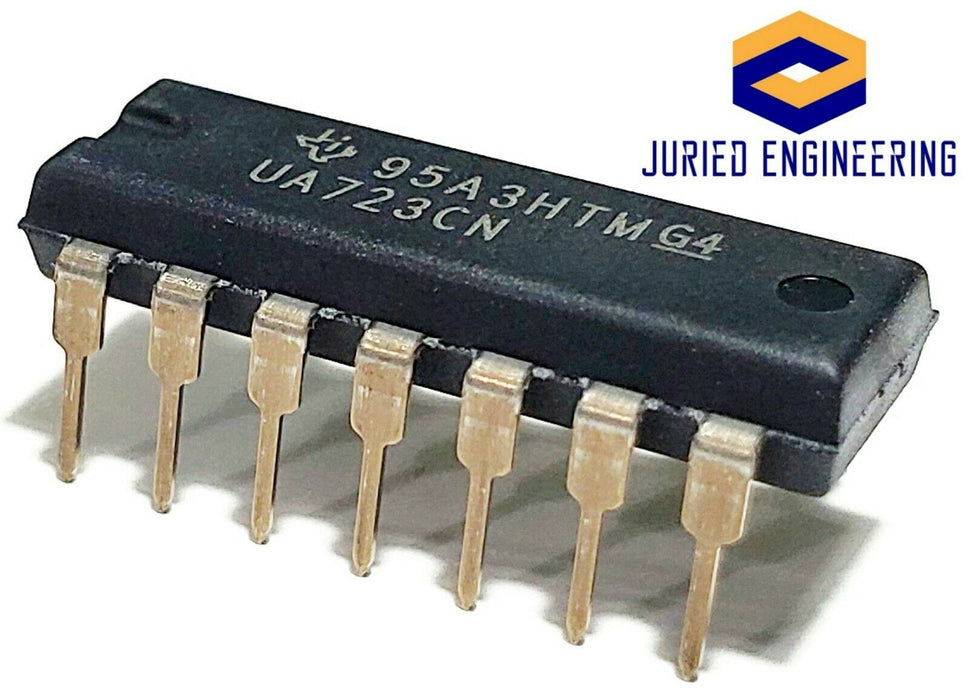

UA723CN UA723 (Direct Replacement LM723CN LM723) Adj. Voltage Regulator IC 2-37V + Socket

Save 58%
$5.99
$2.49

Description:


The UA723/UA723C is a voltage regulator designed primarily for series regulator applications. By itself, it will supply output currents up to 150 mA; but external transistors can be added to provide any desired load current. The circuit features extremely low standby current drain, and provision is made for either linear or foldback current limiting.

The UA723CN is also useful in a wide range of other applications such as a shunt regulator, a current regulator or a temperature controller.

Included:

    • UA723CN

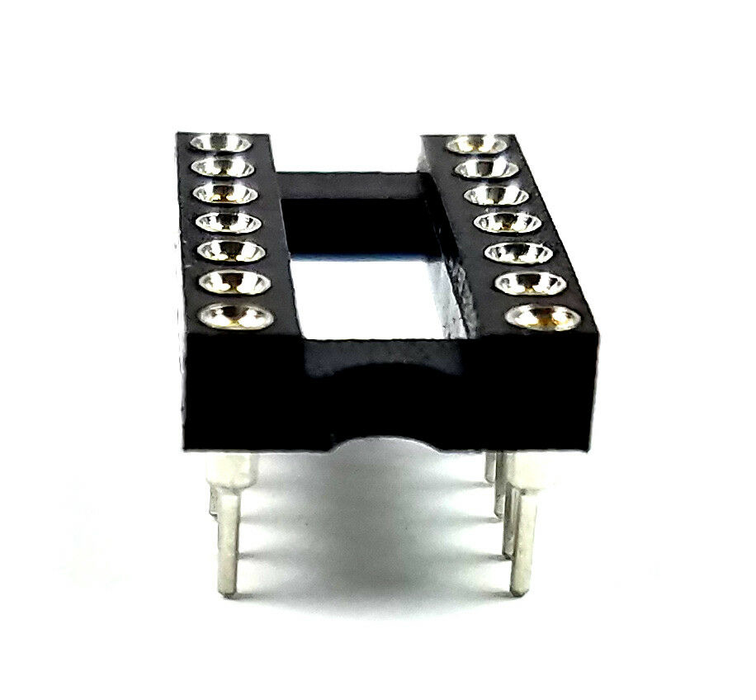

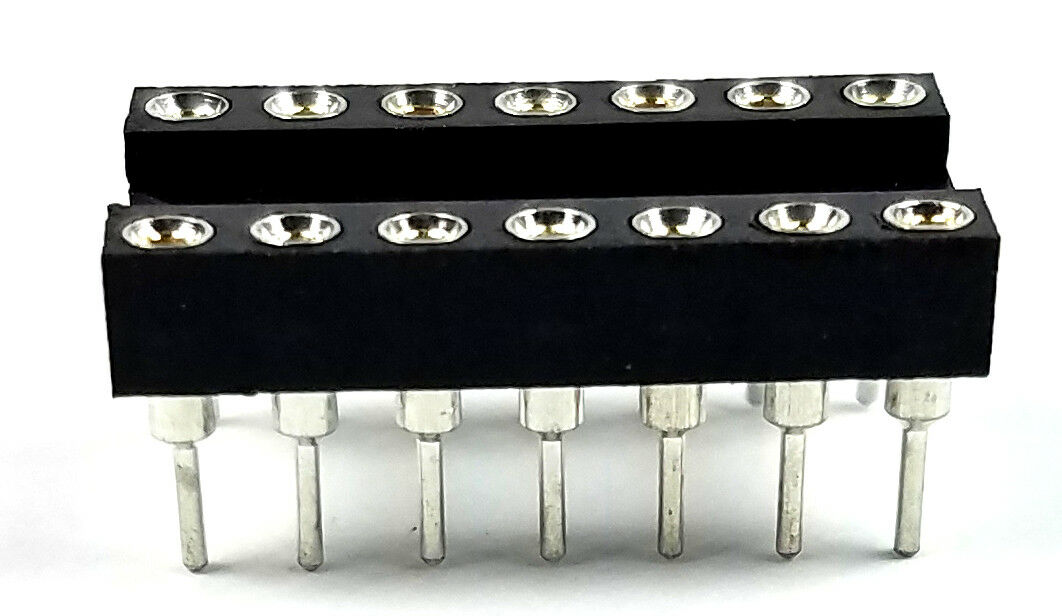

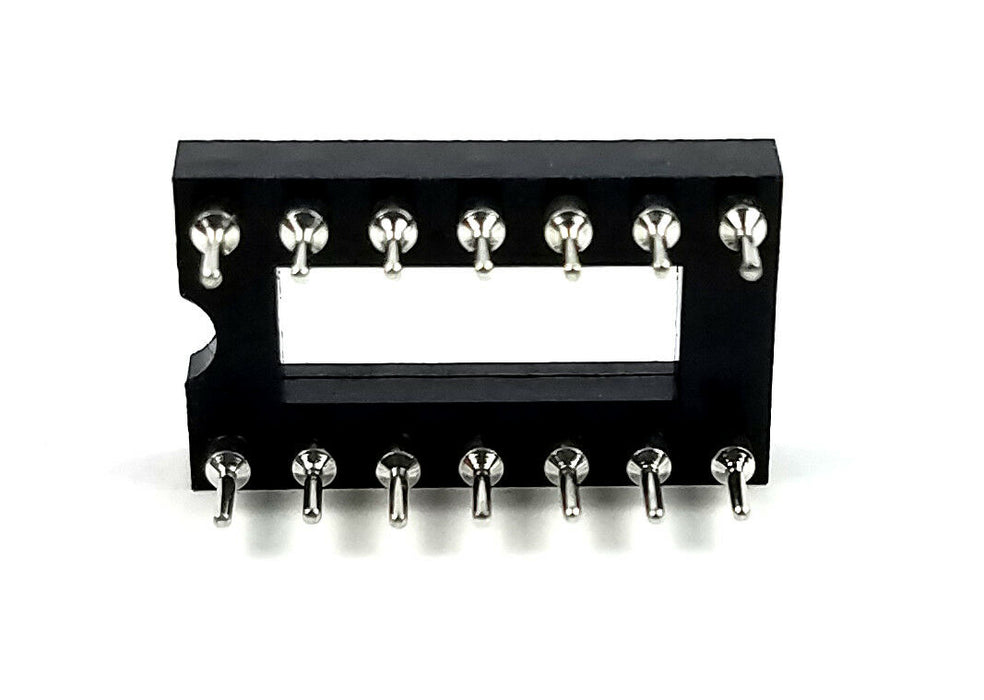

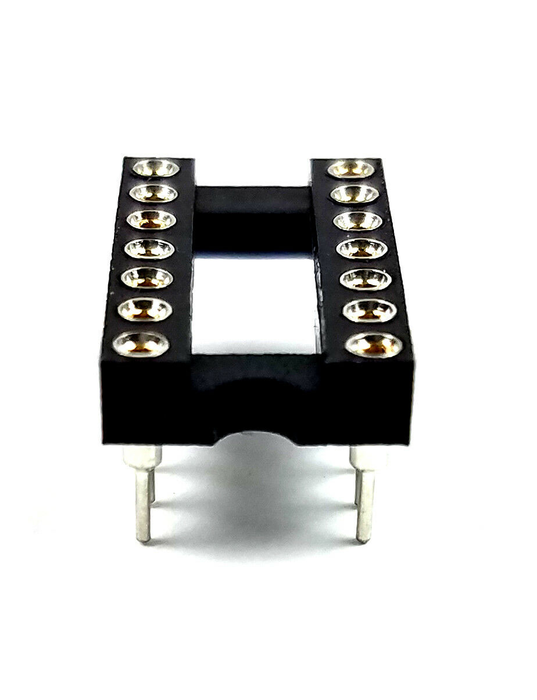

    • 14-Pin DIP Socket with Machined Contact Pins

This item features:

  • 150 mA Output Current Without External Pass Transistor
  • Output Currents in Excess of 10A Possible by Adding External Transistors
  • Input Voltage 40V Max
  • Output Voltage Adjustable from 2V to 37V
  • Can be Used as Either a Linear or a Switching Regulator

Condition:

  • New and Authentic Component(s) - UA723CN Voltage Regulator IC.
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.

General details:

  • We are expanding on a daily basis. If you do not see the part, or quantity of the part, you are looking for, please, let us know. We will do our best to accommodate you.
