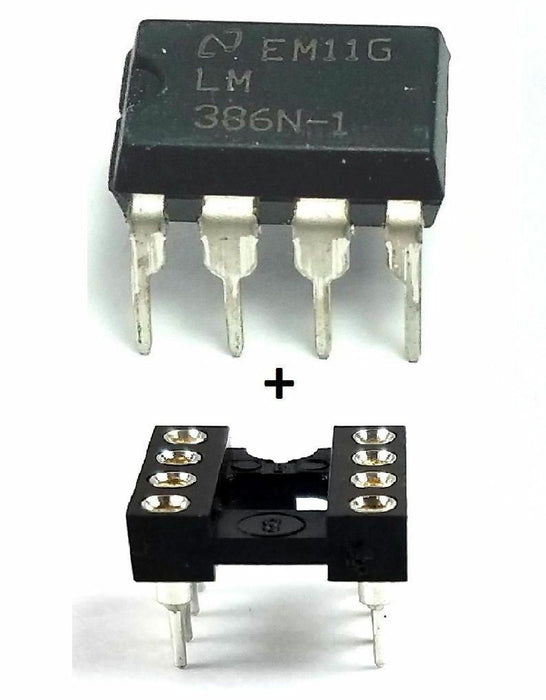

LM386N-1 + Socket - Low Power Audio Amplifier IC

$1.69

Description:

The LM386 is a power amplifier designed for use in low voltage consumer applications. The gain is internally set to 20 to keep external part count low, but the addition of an external resistor and capacitor between pins 1 and 8 will increase the gain to any value from 20 to 200.

Included:

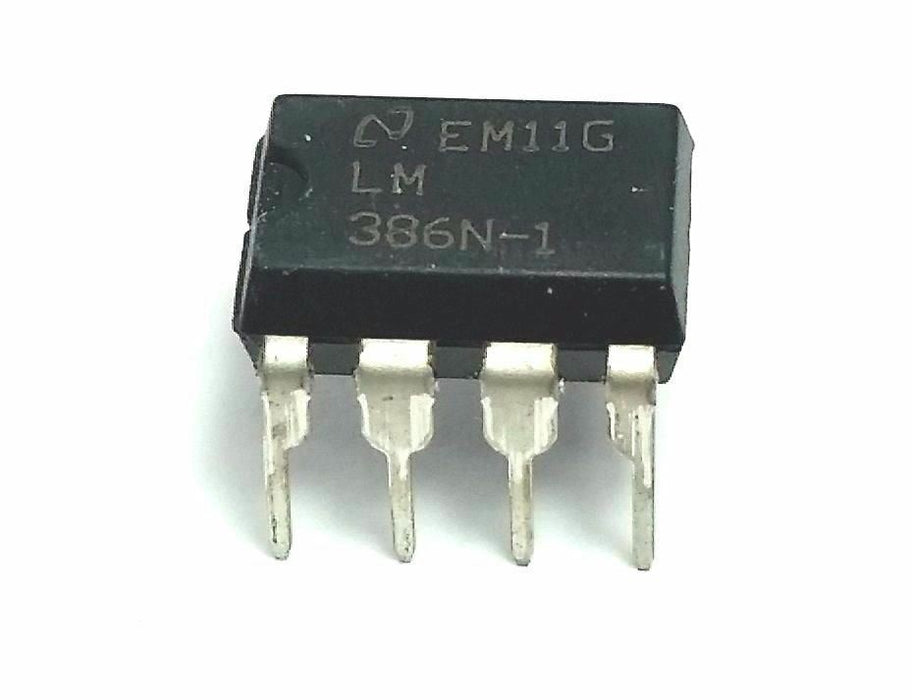

  • LM386N-1

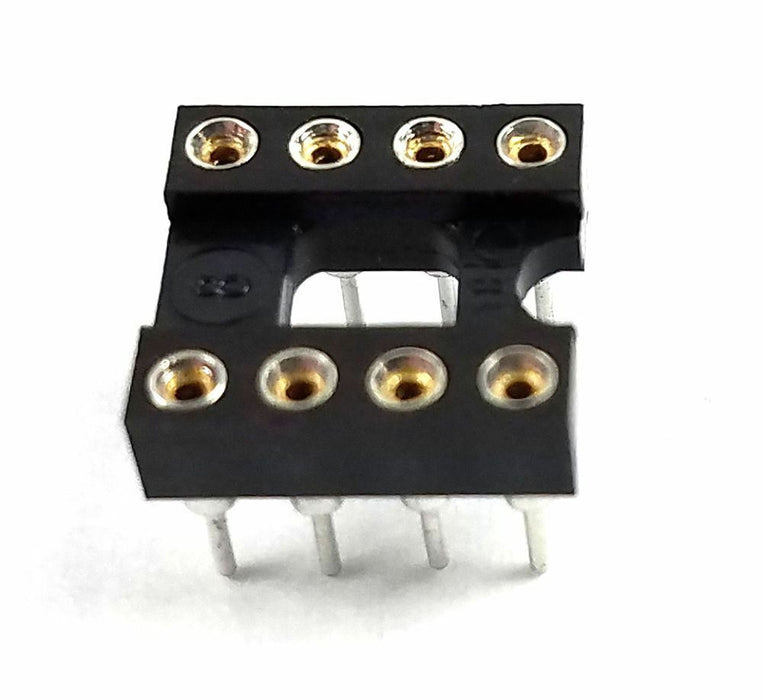

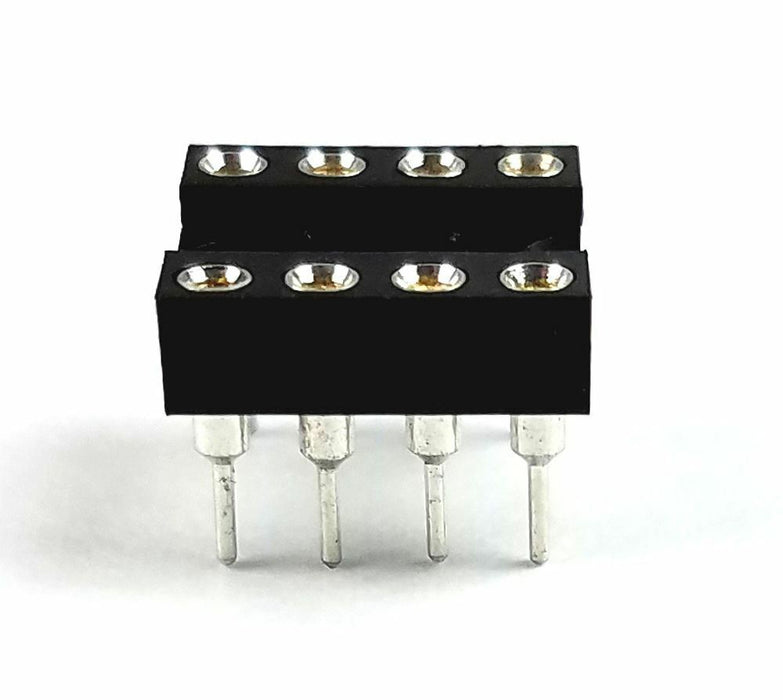

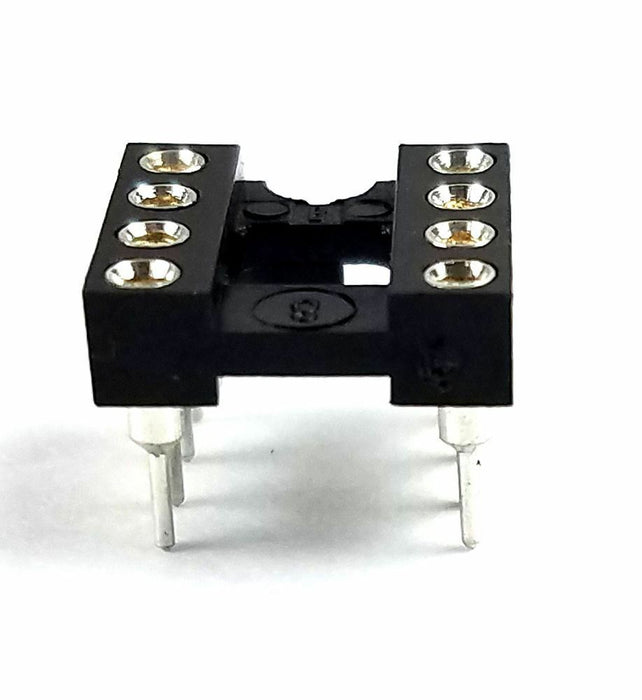

  • 8-Pin DIP Sockets with Machined Contact Pins

This item features:

  • Battery operation
  • Minimum external parts
  • Wide supply voltage range: 4V–12V or 5V–18V
  • Low quiescent current drain: 4mA
  • Voltage gains from 20 to 200
  • Ground referenced input
  • Self-centering output quiescent voltage
  • Low distortion: 0.2% (AV=20, VS = 6V,RL=8?,PO=125mW, f = 1kHz)

Condition:

  • New and Authentic Component(s) - LM386N-1 power amplifier IC + Socket..
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
