LM358P LM358N + Sockets Dual Operational Amplifier

The LM358 consist of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages.

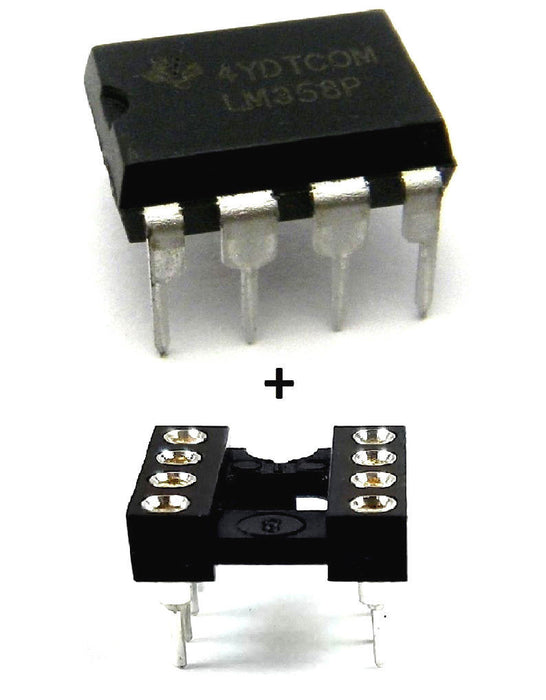

Included:

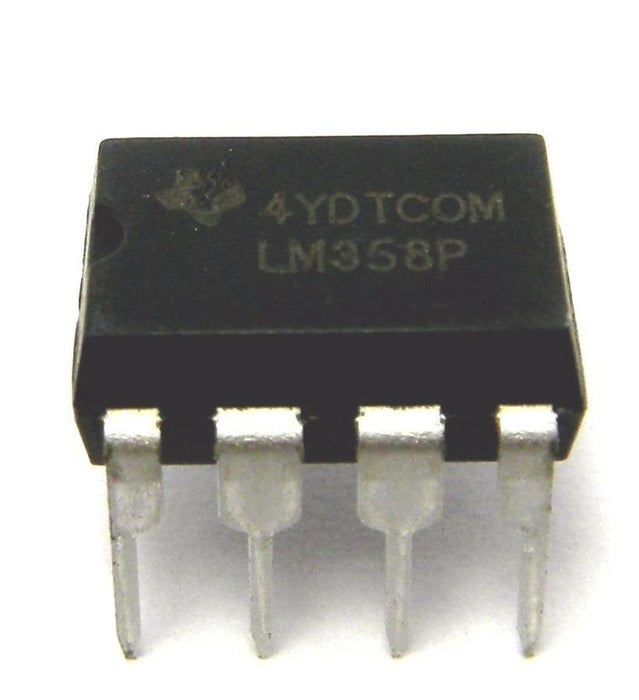

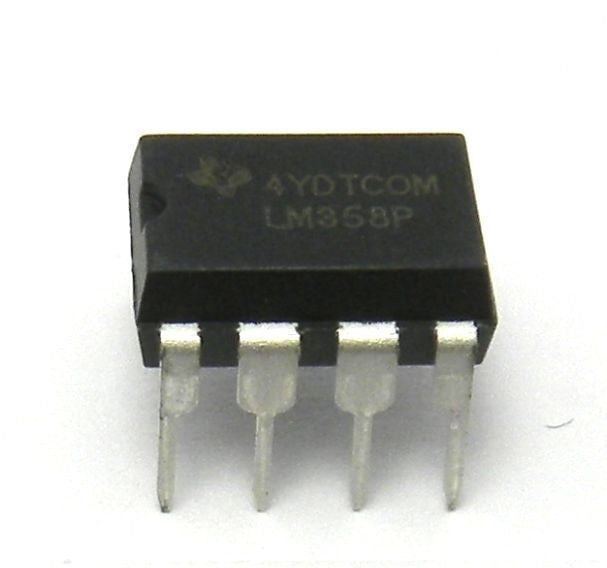

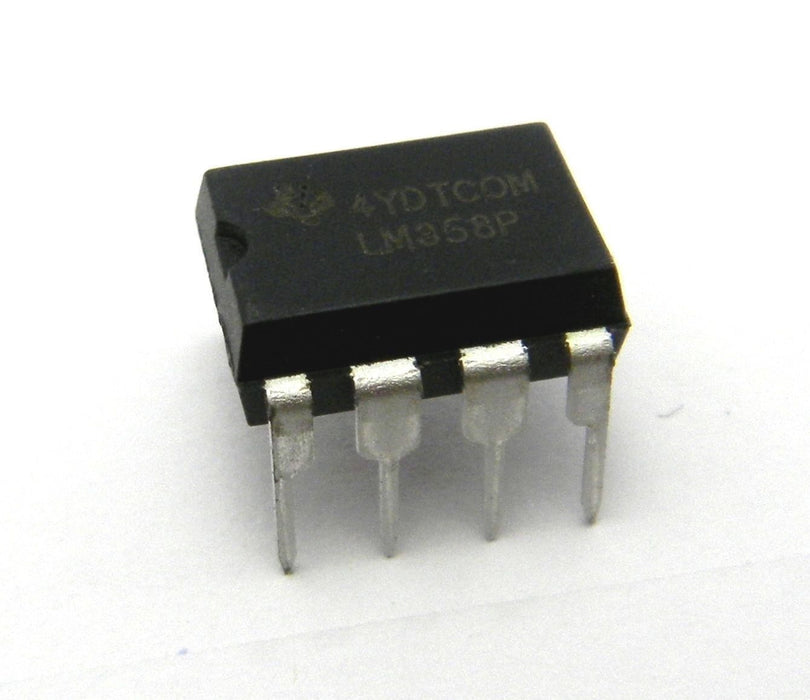

• LM358P

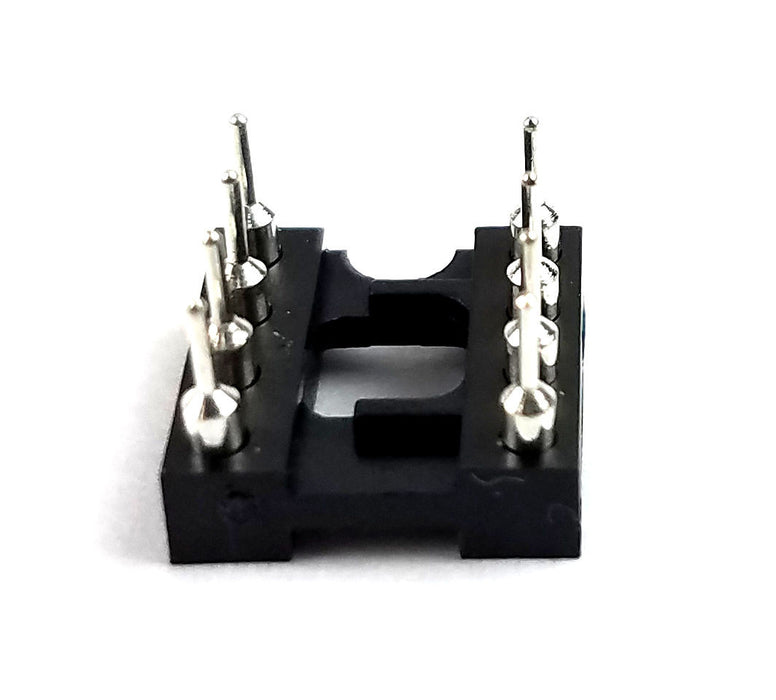

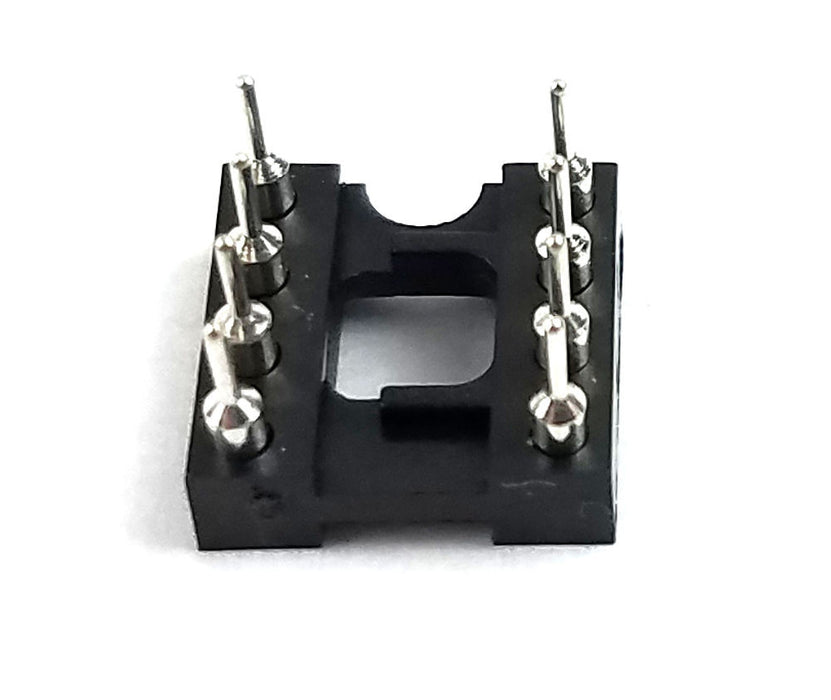

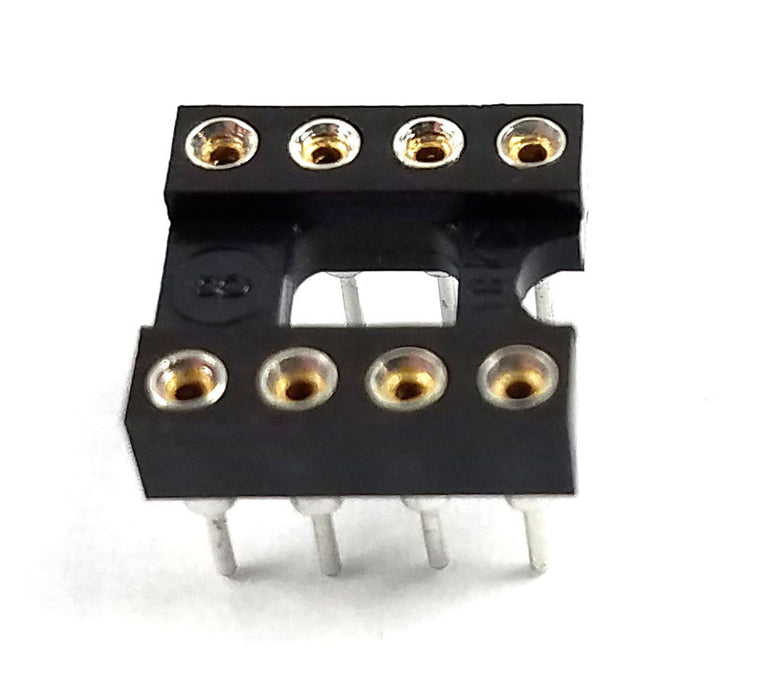

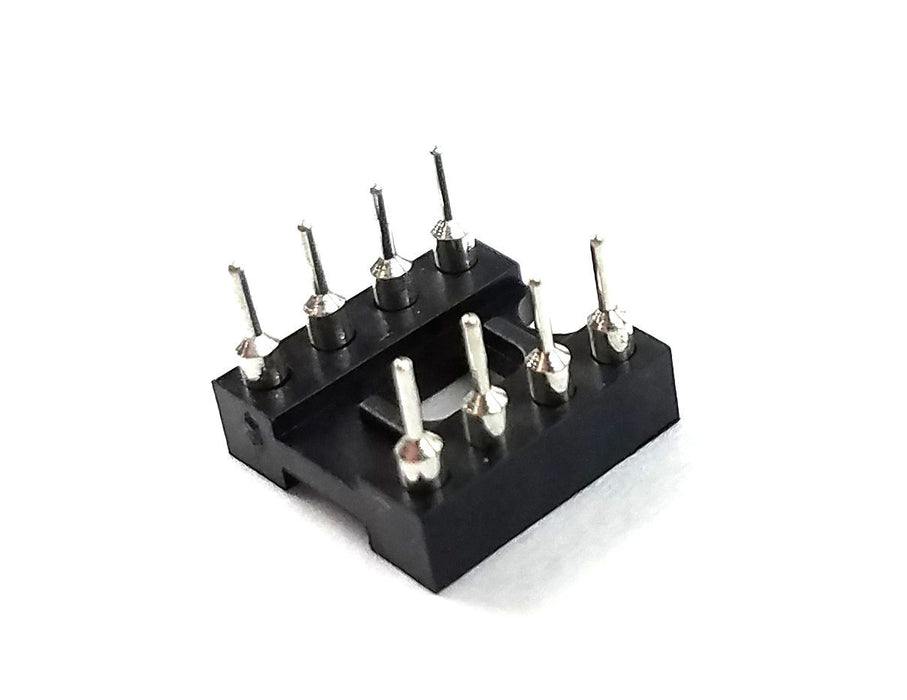

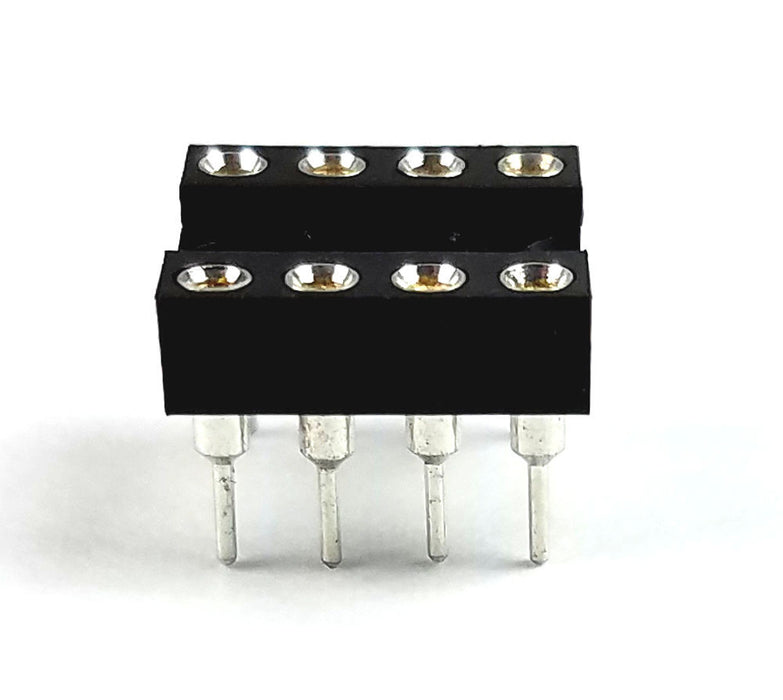

• 8-Pin DIP Sockets with Machined Contact Pins

This item features:

• Wide Supply Ranges
  • Single Supply: 3 V to 32 V
    (26 V for LM2904)
  • Dual Supplies: +-1.5 V to +-16 V
    (+-13 V for LM2904)
• Low Supply-Current Drain, Independent of Supply
  Voltage: 0.7 mA Typical
• Wide Unity Gain Bandwidth: 0.7 MHz
• Common-Mode Input Voltage Range Includes
  Ground, Allowing Direct Sensing Near Ground
• Low Input Bias and Offset Parameters
  • Input Offset Voltage: 3 mV Typical
    A Versions: 2 mV Typical
  • Input Offset Current: 2 nA Typical
  • Input Bias Current: 20 nA Typical
    A Versions: 15 nA Typical
• Differential Input Voltage Range Equal to
  Maximum-Rated Supply Voltage: 32 V
  (26 V for LM2904)
• Open-Loop Differential Voltage Gain:
  100 dB Typical
• Internal Frequency Compensation
• On Products Compliant to MIL-PRF-38535,
  All Parameters are Tested Unless Otherwise
  Noted. On All Other Products, Production Processing
  Does Not Necessarily Include Testing
  of All Parameters.

Condition:

• New and Authentic Component(s) - LM358P operational amplifier IC + Socket.
• Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.



General details:

• We are expanding on a daily basis. If you do not see the part, or quantity of the part, you are looking for, please, let us know. We will do our best to accommodate you.
