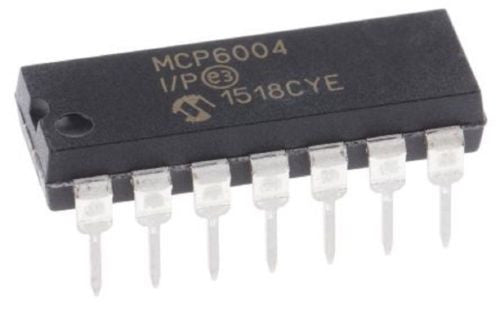

MCP6004-E/P MCP6004 Quad 1 MHz Low-Power Operational Amp



The Microchip Technology Inc. MCP6004 operational amplifiers (op amps) are specifically designed for general-purpose applications. This MCP6004 has a 1 MHz Gain Bandwidth Product (GBWP) and 90° phase margin (typical). It also maintains 45° phase margin (typical) with a 500 pF capacitive load. This Op Amp operates from a single supply voltage as low as 1.8V, while drawing 100 µA (typical) quiescent current. Additionally, the MCP6004 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300 mV to VSS – 300 mV. The MCP6004 is designed with Microchip’s advanced CMOS process.


  • MCP6004-E/P

This item features:

  • Gain Bandwidth Product: 1 MHz (typical)
  • Rail-to-Rail Input/Output
  • Supply Voltage: 1.8V to 6.0V
  • Supply Current: IQ = 100 µA (typical)
  • Phase Margin: 90° (typical)


  • New and Authentic Component(s) - MCP6004-E/P MCP6004 Quad 1 MHz Low-Power Operational Amplifier.
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
