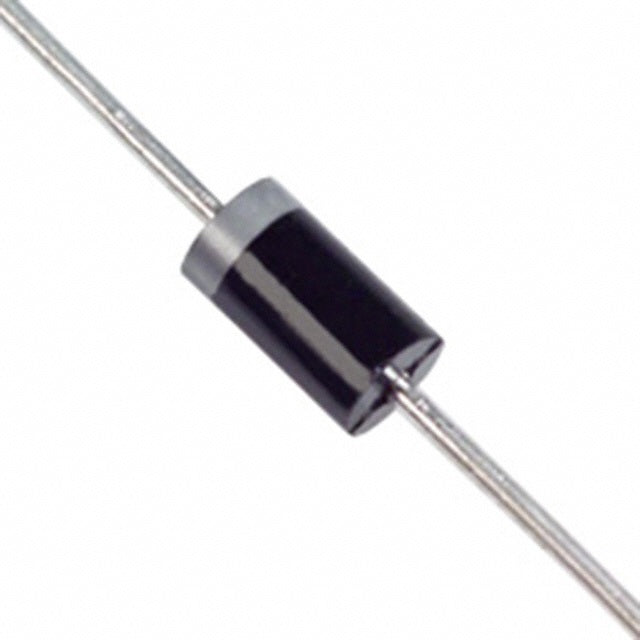

UF4007 Glass Passivated High Efficient Rectifier Switching Diode 1KV 1A 75ns 2-Pin DO-41



The UF4007 are Ultra Fast Rectifier Diodes in a JEDEC DO-204AL(DO-41) moulded plastic package with a Maximum Repetitive Peak Reverse Voltage: 1000 Volts.


  • UF4007

This item features:

  • Diffused junction
  • Ultra fast switching for high efficiency
  • Low reverse leakage current
  • Low forward voltage drop
  • High current capability
  • Plastic package has Underwriters Laboratories Flammability Classification 94V-0 ‹
  • Ideally suited for use in very high frequency switching power supplies, inverters and as free wheeling diodes ‹
  • Ultrafast recovery time for high efficiency ‹
  • Excellent high temperature switching ‹
  • Soft recovery characteristics ‹
  • Glass passivated junction ‹
  • High temperature soldering guaranteed: 250o C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension
  • New and Authentic Component(s) - UF4007 are Ultra Fast Rectifier Diodes.
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
