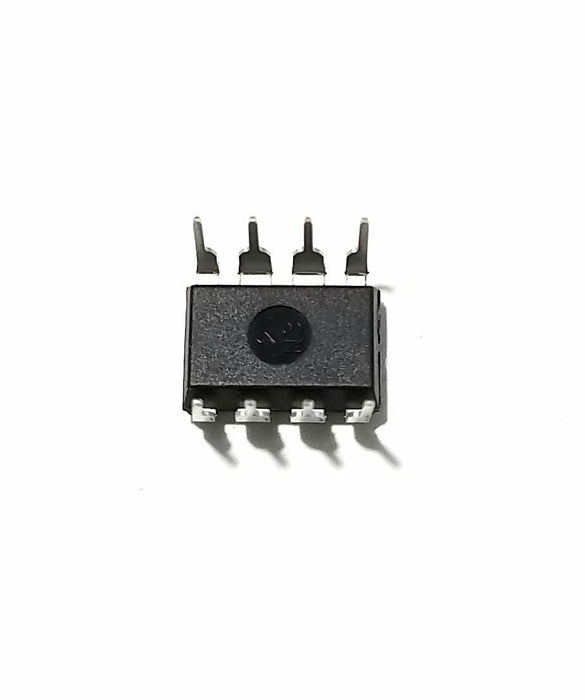

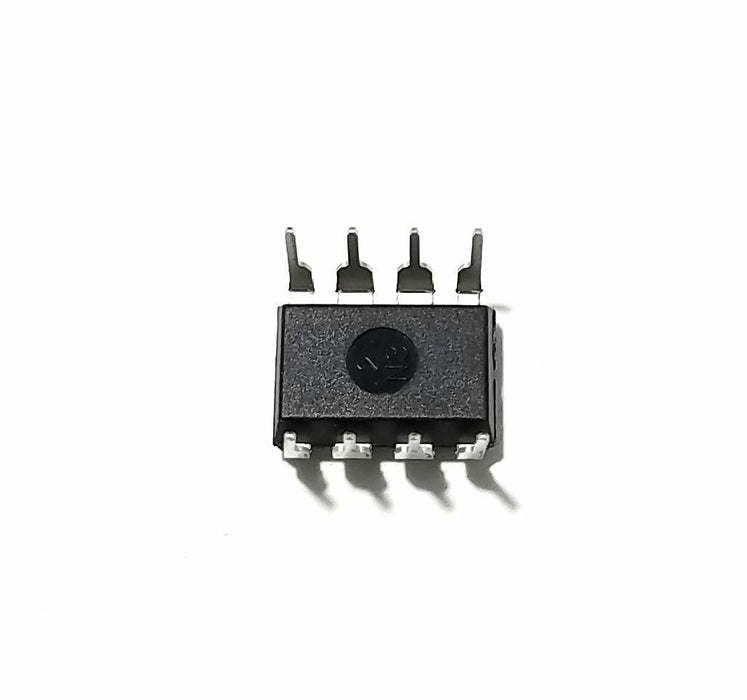

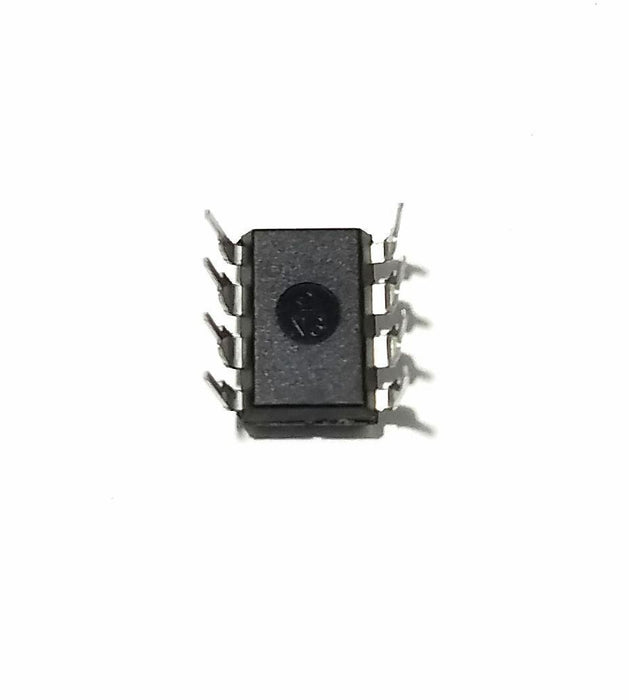

TLE2141CP TLE2141 Low Noise High-Speed Op Amp IC

$3.95

Description:

The TLE2141 devices are high-performance, internally compensated operational amplifiers built using Texas Instruments complementary bipolar Excalibur process. The design incorporates an input stage that simultaneously achieves low audio-band noise of 10.5 nV//100-pF load is useful in fast actuator/positioning drivers. Under similar test conditions, settling time to 0.01% is 400 ns.

The devices are stable with capacitive loads up to 10 nF, although the 6-MHz bandwidth decreases to 1.8 MHz at this high loading level. As such, the TLE2141 are useful for low-droop sample-and-holds and direct buffering of long cables, including 4-mA to 20-mA current loops.

Included:

  • TLE2141CP

This item features:

  • Low Noise
  • 10 Hz...15 nV/Hz
  • 1 kHz...10.5 nV/Hz
  • 10000-pF Load Capability
  • 20-mA Min Short-Circuit Output Current
  • 27-V/µs Min Slew Rate
  • High Gain-Bandwidth Product...5.9 MHz
  • Low VIO ...500 µV Max at 25°C
  • Single or Split Supply...4 V to 44 V
  • Fast Settling Time
  • 340 ns to 0.1%
  • 400 ns to 0.01%
  • Saturation Recovery...150 ns
  • Large Output Swing
  • VCCâ +0.1 V to VCC+ â1 V

 Condition:

  • New and Authentic Component(s) - TLE2141CP Low Noise High-Speed Precision ICs.
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
