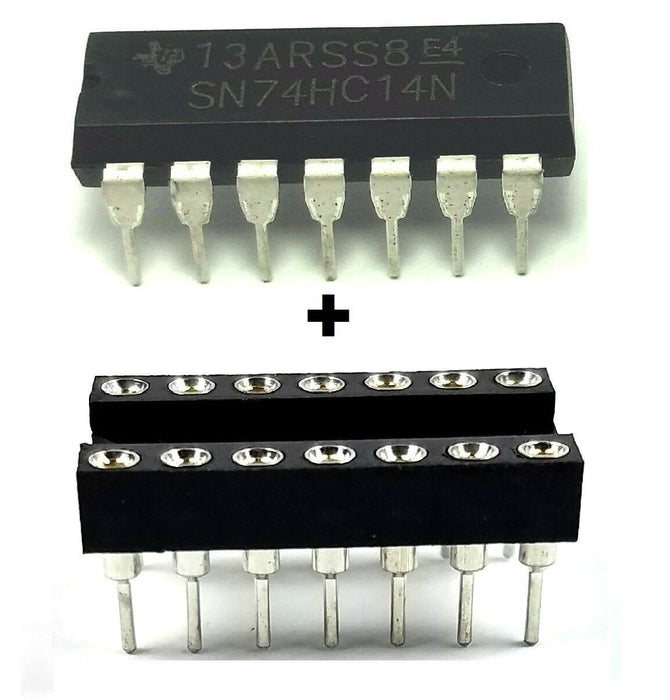

SN74HC14N 74HC14 Hex Schmitt-Trigger Inverters and Machined DIP Sockets Breadboard-Friendly IC DIP-14



These Schmitt-trigger devices contain six independent inverters. They perform the Boolean function Y = A in positive logic.

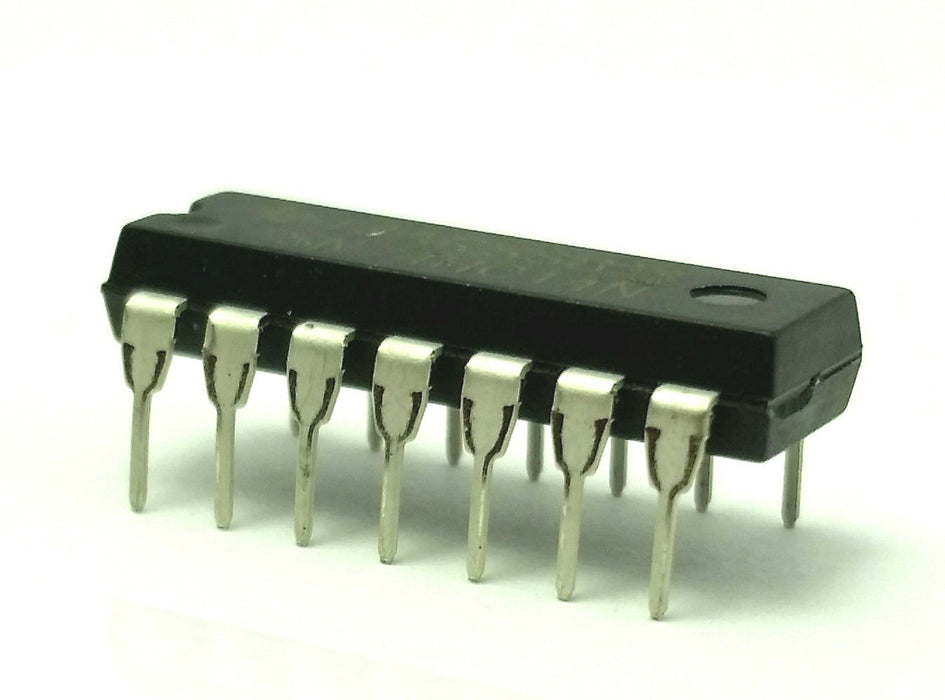

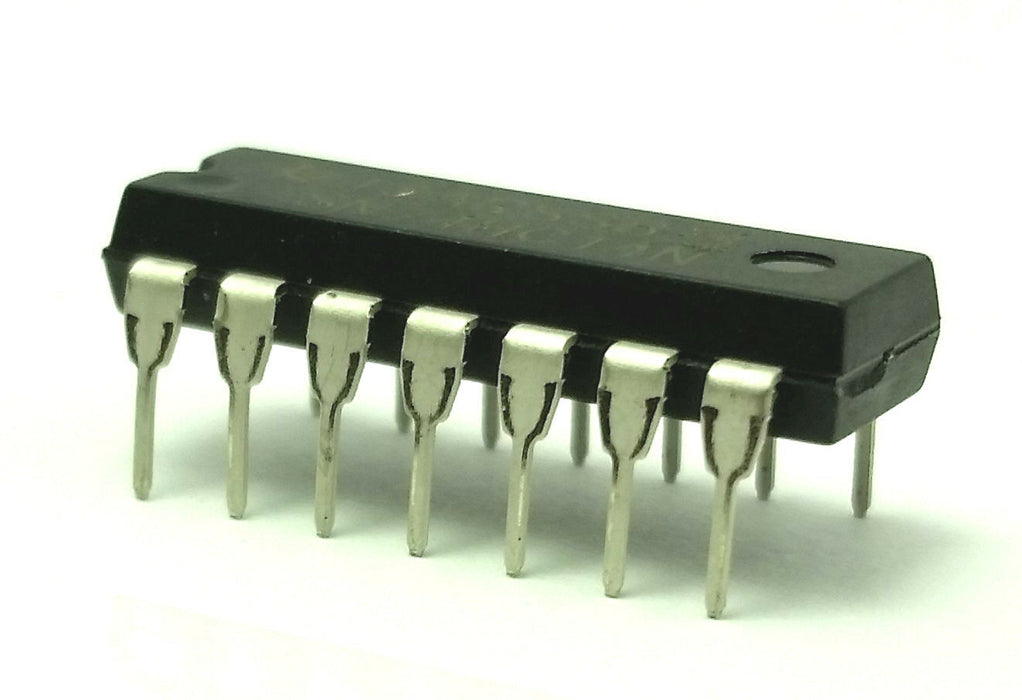

  • SN74HC14N

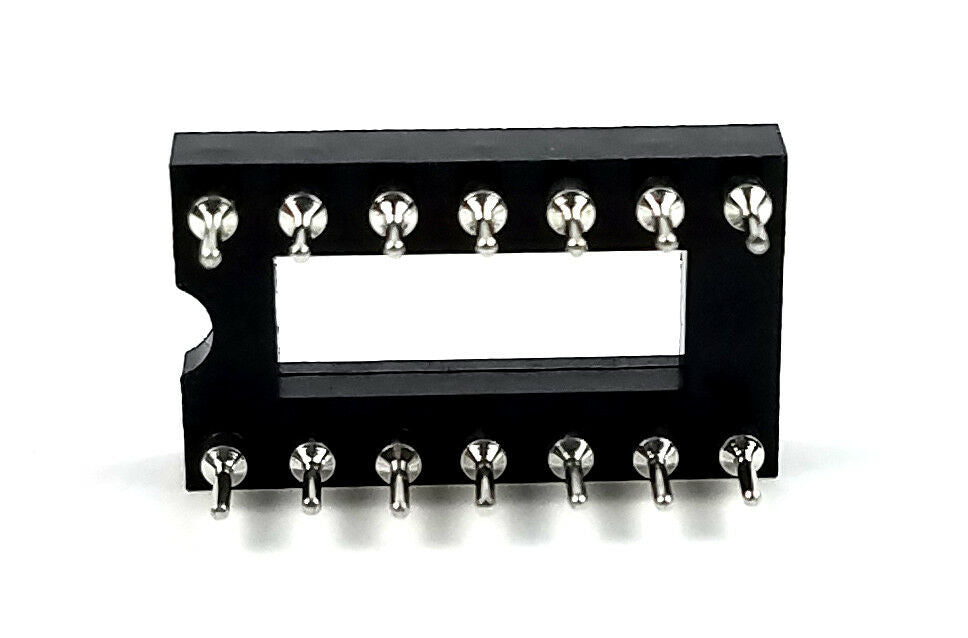

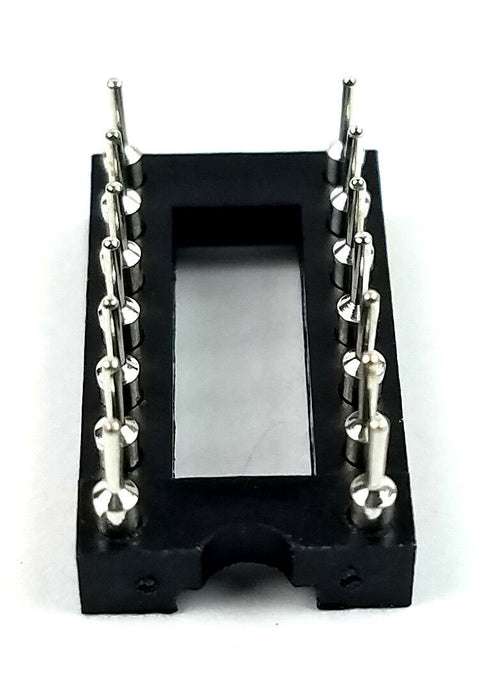

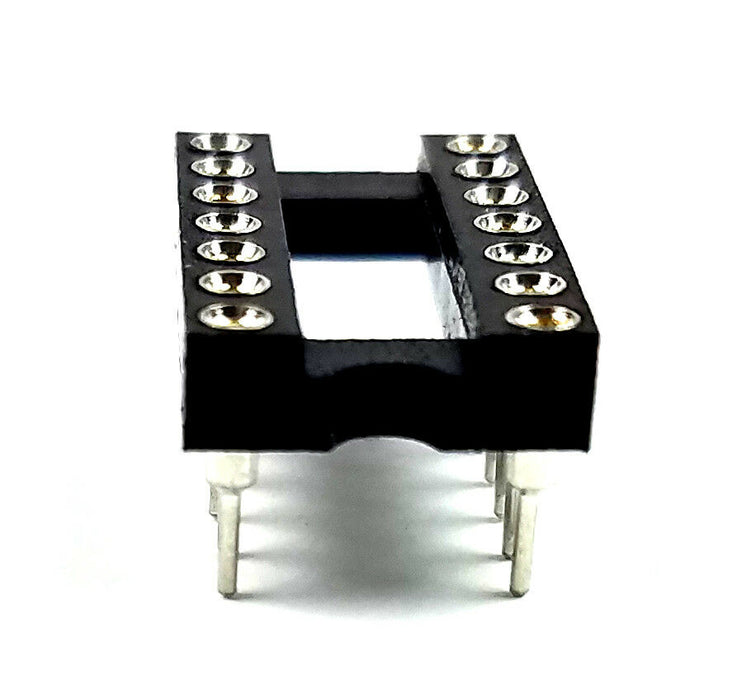

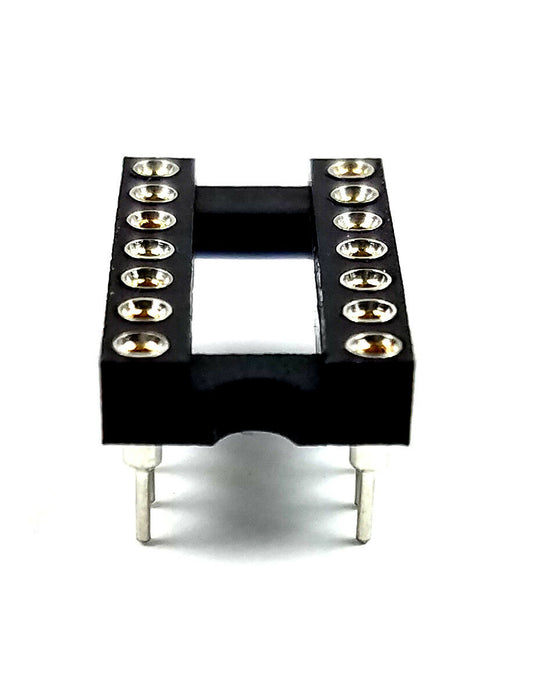

  • 14 Pin DIP Machined Socket

This item features:

  • Wide Operating Voltage Range of 2 V to 6 V
  • Outputs Can Drive Up To 10 LSTTL Loads
  • Low Power Consumption, 20-uA Max Icc
  • Typical tpd= 11 ns
  • ±4-mA Output Drive at 5 V
  • Low Input Current of 1uA Max


  • New and Authentic Component(s) - SN74HC14N Schmitt-trigger device ICs.
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
