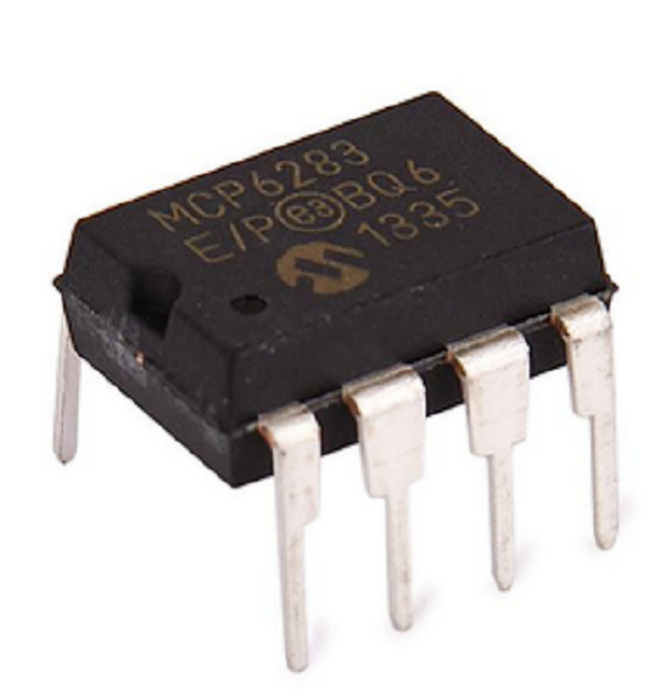

MCP6283-E/P MCP6283 450 µA, 5 MHz Gain Bandwidth Rail-to-Rail Op Amp Operational Amp DIP-8 Breadboard-Friendly

$0.95

Description:

The MCP6283 operational amplifiers (op amps) provide wide bandwidth for the current. This MCP6583 has a 5 MHz Gain Bandwidth Product (GBWP) and a 65° phase margin. The MCP6283 also operates from a single supply voltage as low as 2.2V, while drawing 450 µA (typical) quiescent current. Additionally, the MCP6283 supports rail-to-rail input and output swing, with a common mode input voltage range of VDD + 300mV to VSS – 300 mV and is designed with Microchip’s advanced CMOS process. The MCP6285 has a Chip Select (CS) input for dual op amps in an 8-pin package. This device is manufactured by cascading the two op amps (the output of op amp A connected to the non-inverting input of op amp B). The CS input puts the device in Low-power mode. The MCP6283 operates over the Extended Temperature Range of -40°C to +125°C. It also has a power supply range of 2.2V to 6.0V.

Included:

  • MCP6283-E/P

This item features:

      • Input Offset Voltage: ±3 mV (max)
      • Quiescent Current: 445 µA (typical)
      • Common Mode Rejection Ratio: 65 dB (typical)
      • Power Supply Rejection Ratio: 70 dB (typical)
      • Rail-to-Rail Input/Output
      • Supply Voltage Range: 2.2V to 6V
      • Gain Bandwidth Product: 5 MHz (typical)
      • Slew Rate: 2.5V/µs (typical)
      • Unity Gain Stable
      • Chip Select/ Shutdown feature available on the MCP6283
      • Extended Temperature Range: -40°C to +125°C

Condition:

  • New and Authentic Component(s) - MCP6283-E/P MCP6283 5 MHz Gain Bandwidth Operational Amplifier.
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
