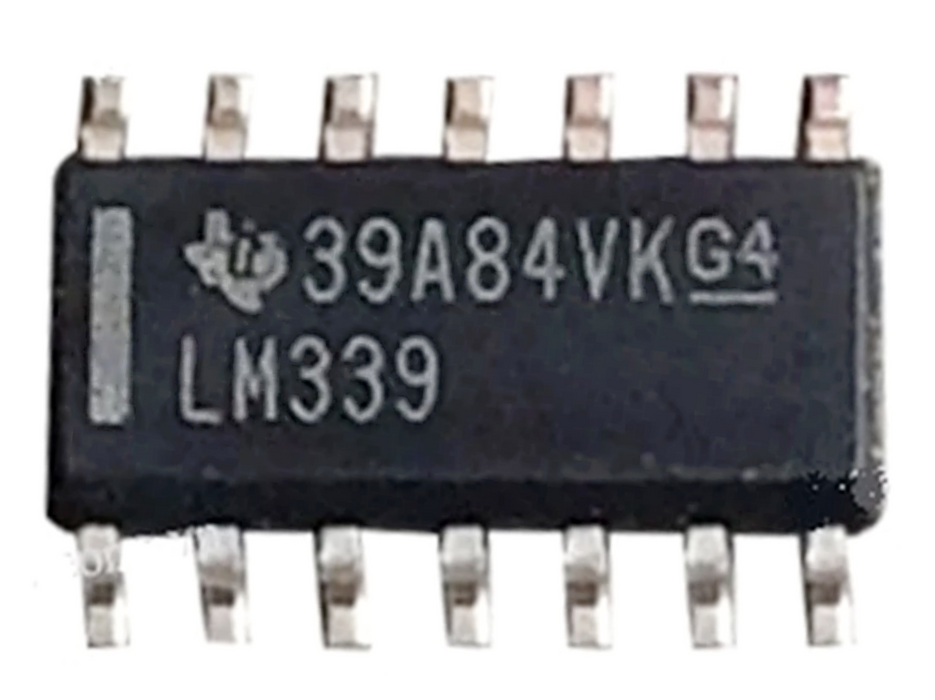

LM339DR LM339 Quad Differential Comparator Industrial Grade Breadboard-Friendly IC SOIC



The LM339 devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.


  • 1 x LM339DR (SOIC)

This item features:

  • Wide Supply Ranges
  • Single Supply: 2 V to 36 V
  • (Tested to 30 V for Non-V Devices and
  • 32 V for V-Suffix Devices)
  • Dual Supplies: ±1 V to ±18 V
  • (Tested to ±15 V for Non-V Devices and
  • ±16 V for V-Suffix Devices)
  • Low Supply-Current Drain Independent of
  • Supply Voltage: 0.8 mA (Typical)
  • Low Input Bias Current: 25 nA (Typical)
  • Low Input Offset Current: 3 nA (Typical) (LM139)
  • Low Input Offset Voltage: 2 mV (Typical)
  • Common-Mode Input Voltage Range
  • Includes Ground
  • Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: ±36 Volts
  • Low Output Saturation Voltage
  • Output Compatible With TTL, MOS, and CMOS


  • New and Authentic Component(s) - LM339DR Quad Differential Comparator SOIC ICs.
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
