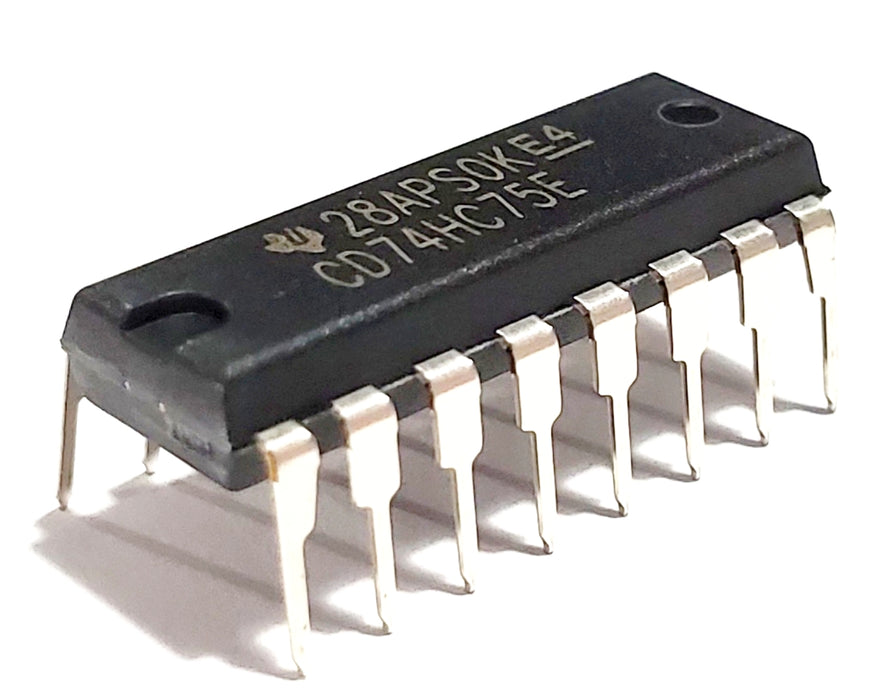

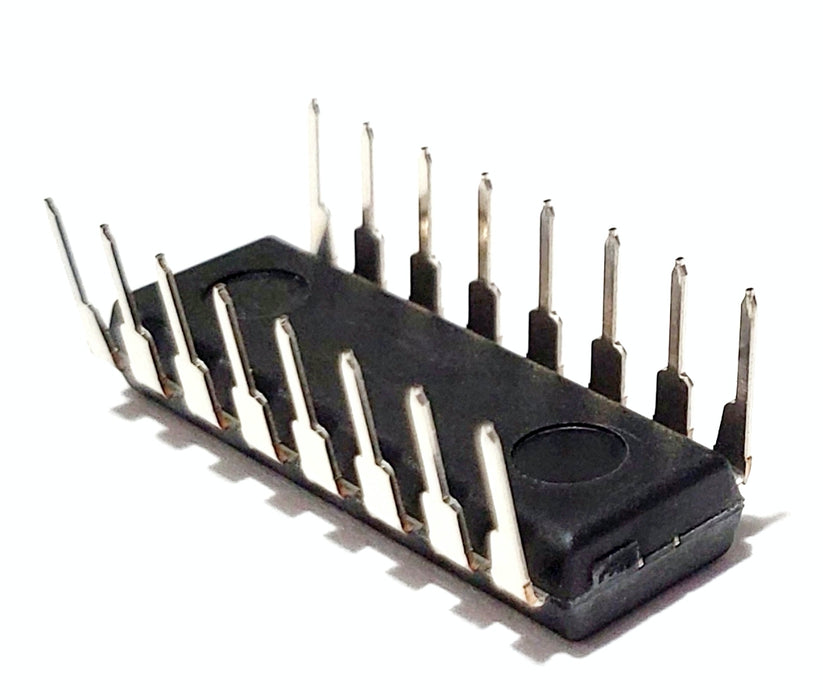

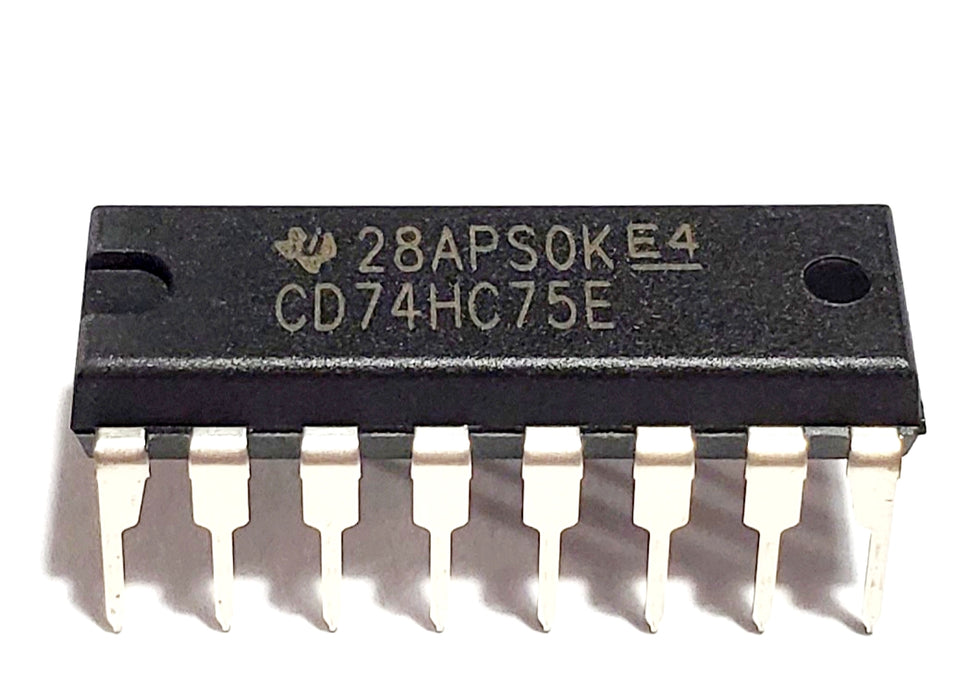

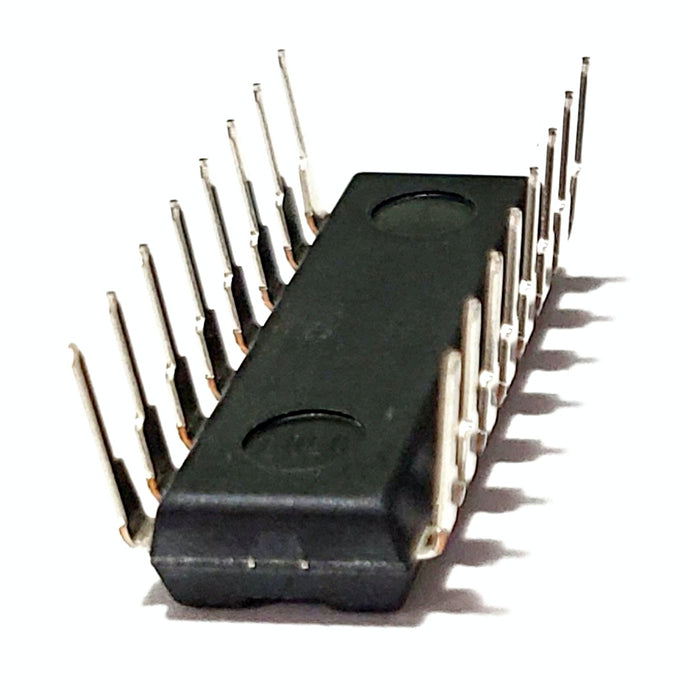

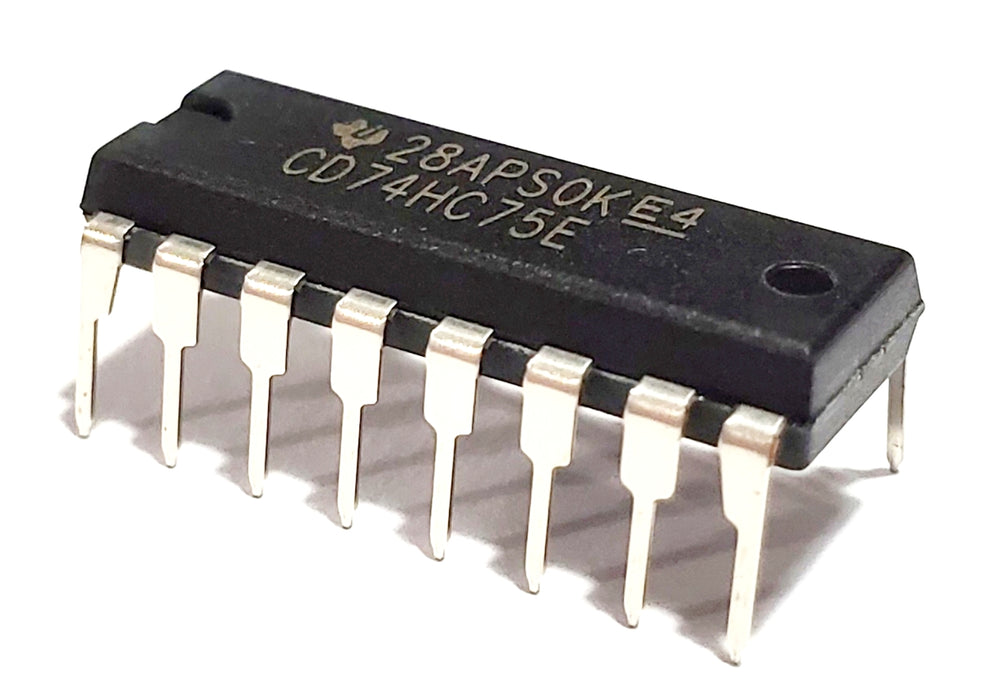

CD74HC75E 74HC75 High Speed CMOS Logic Dual 2-Bit Latch
CD74HC75E 74HC75 High Speed CMOS Logic Dual 2-Bit Latch
CD74HC75E 74HC75 High Speed CMOS Logic Dual 2-Bit Latch
CD74HC75E 74HC75 High Speed CMOS Logic Dual 2-Bit Latch
CD74HC75E 74HC75 High Speed CMOS Logic Dual 2-Bit Latch
CD74HC75E 74HC75 High Speed CMOS Logic Dual 2-Bit Latch

CD74HC75E 74HC75 High Speed CMOS Logic Dual 2-Bit Latch

by Juried Engineering
$0.97

Description:

The CD74HC75E are dual 2-bit bistable transparent latches. Each one of the 2-bit latches is controlled by separate Enable inputs (1E\ and 2E\) which are active LOW. When the Enable input is HIGH data enters the latch and appears at the Q output. When the Enable input (1E\ and 2E\) is LOW the output is not affected.

Included:

CD74HC75E

This item features:

  • True and Complementary Outputs
  • Buffered Inputs and Outputs
  • Fanout (Over Temperature Range)
  • Standard Outputs...10 LSTTL Loads
  • Bus Driver Outputs...15 LSTTL Loads
  • Wide Operating Temperature Range . . . –55°C to 125°C
  • Balanced Propagation Delay and Transition Times
  • Significant Power Reduction Compared to LSTTL Logic ICs

HC Types:

  • 2V to 6V Operation
  • High Noise Immunity: NIL = 30%, NIH = 30% of VCC at VCC = 5V

 Condition:

  • New and Authentic Component(s) - Texas Instruments High Speed CMOS Logic Dual 2-Bit Bistable Transparent Latches ICs.
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.

General details:

  • We are expanding on a daily basis. If you do not see the part, or quantity of the part, you are looking for, please, let us know. We will do our best to accommodate you.
