CD14538BE CD14538 CMOS Dual Precision Monostable IC



The CD14538B dual precision monostable multivibrator provides stable retriggerable/resettable one-shot operation for any fixed-voltage timing application.An external resistor (RX) and an external capacitor (CX) control the timing and accuracy for the circuit. Adjustment of RX and CX provides a wide range of output pulse widths from the Q and Q\ terminals.

The time delay from trigger input to output transition (trigger propagation delay) and the time delay from reset input to output transition (reset propagation delay) are independent of RX and CX. Precision control of output pulse widths is achieved through linear CMOS techniques.

Leading-edge-triggering (+TR) and trailing-edge-triggering (-TR) inputs are provided for triggering from either edge of an input pulse. An unused +TR input should be tied to VSS. An unused -TR input should be tied to VDD. A RESET (on low level) is provided for immediate termination of the output pulse or to prevent output pulses when power is turned on. An unused RESET input should be tied to VDD. However, if an entire section of the CD14538B is not used, its inputs must be tied to either VDD or VSS.

In normal operation the circuit retriggers (extends the output pulse one period) on the application of each new trigger pulse. For operation in the non-retriggerable mode, Q\ is connected to -TR when leading-edge triggering (+TR) is used or Q is connected to +TR when trailing-edge triggering (-TR) is used. The time period (T) for this multivibrator can be calculated by: T = RXCX.The minimum value of external resistance, RX, is 4 K. The minimum and maximum values of external capacitance, CX are 0 pF and 100µF, respectively.

The CD14538B is interchangeable with type MC14538 and is similar to and pin-compatible with the CD4098B* and CD4538B. It can replace the CD4538B which type is not recommended for new designs.



This item features:

Retriggerable/resettable capability

Trigger and reset propagation delays independent of RX, CX

Triggering from leading or trailing edge

Q and Q\ buffered outputs available

Separate resets

Replaces CD4538B Type

Wide range of output-pulse widths

Schmitt-trigger input allows unlimited rise and fall times on +TR and -TR inputs

100% tested for maximum quiescent current at 20 V

Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C

Noise margin (full package-temperature range): 1 V at VDD = 5 V, 2 V at VDD = 10 V and 2.5 V at VDD = 15 V

5-V, 10-V, and 15-V parametric ratings

Standardized, symmetrical output characteristics

Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"


Pulse delay and timing

Pulse shaping

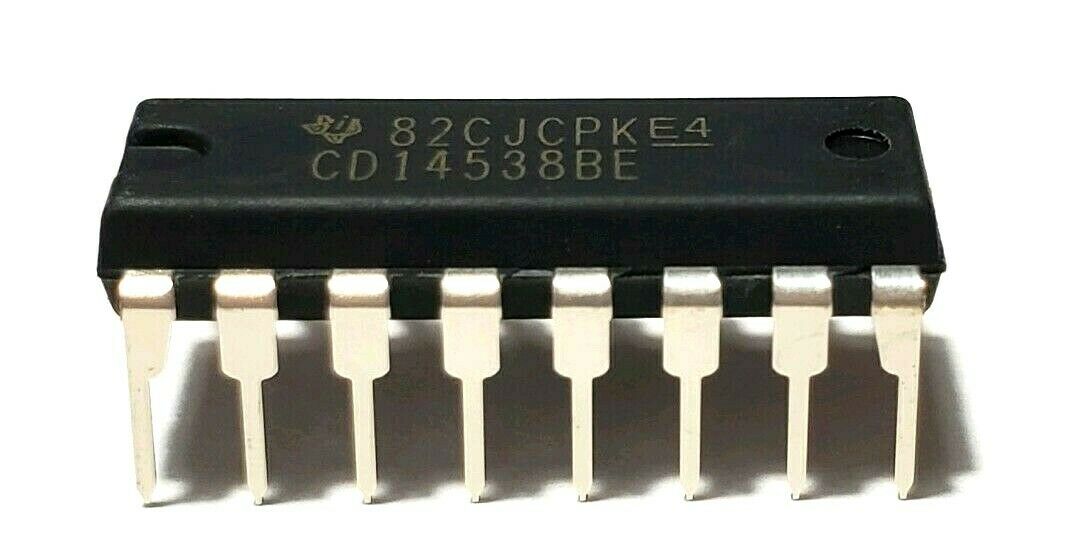

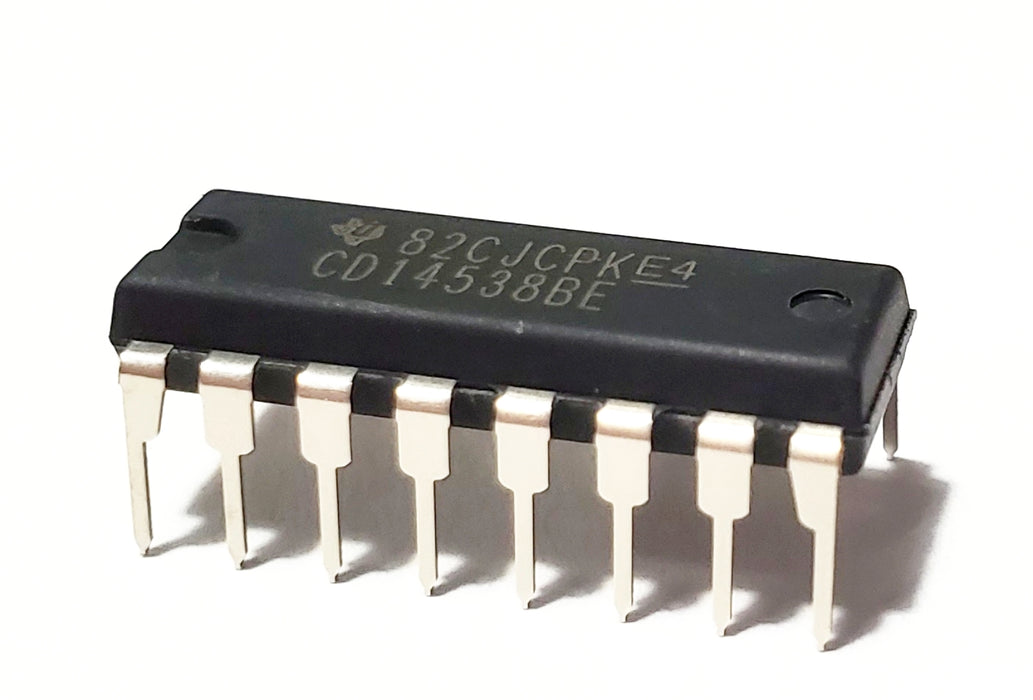

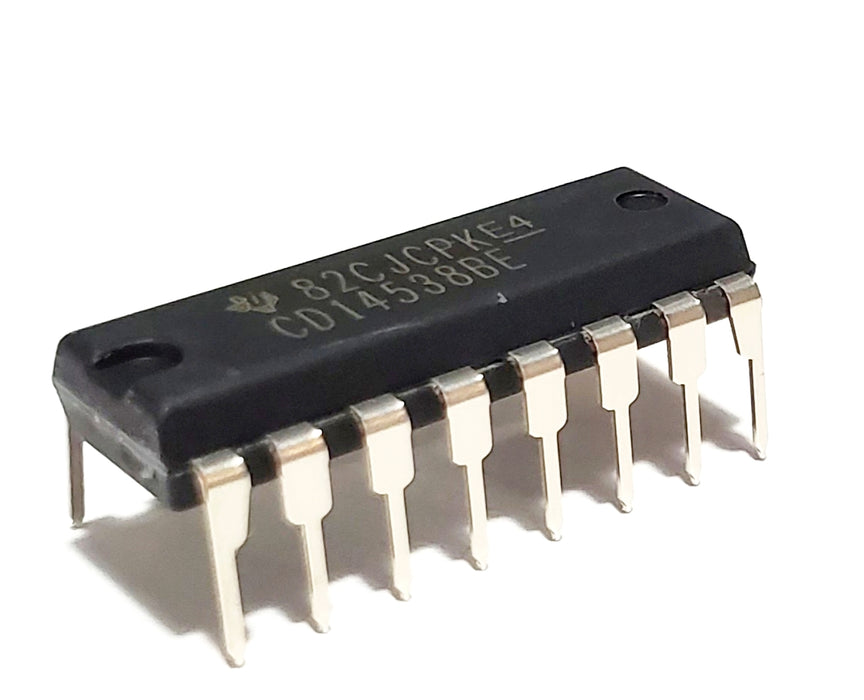

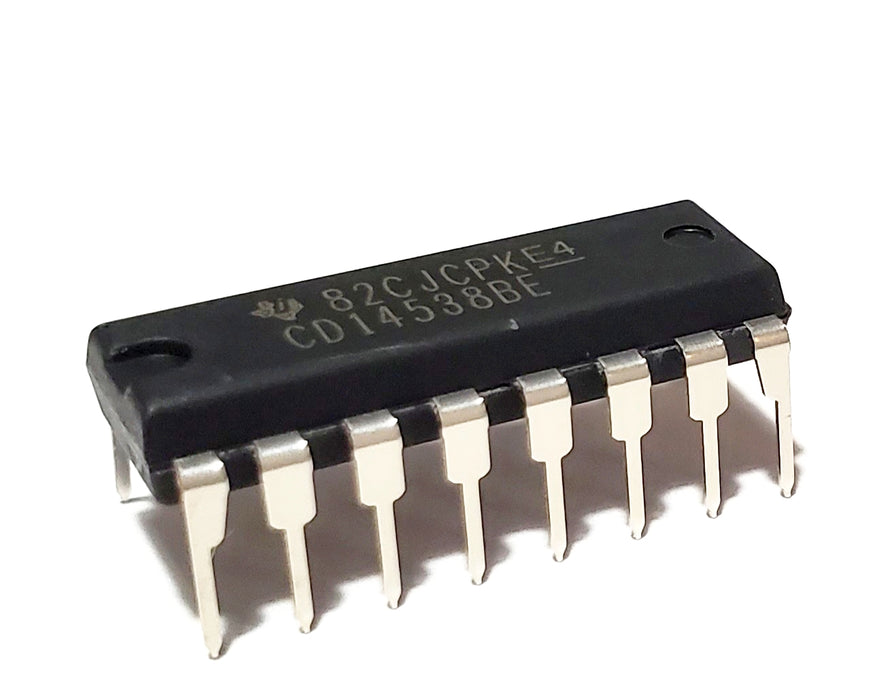

New and Authentic Component(s) - CD14538BE CMOS Dual Precision Monostable Multivibrator IC.

  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
