1N916 Small Signal Diode Switching
1N916 Small Signal Diode Switching
1N916 Small Signal Diode Switching

1N916 Small Signal Diode Switching

by Juried Engineering
$0.17

Description:

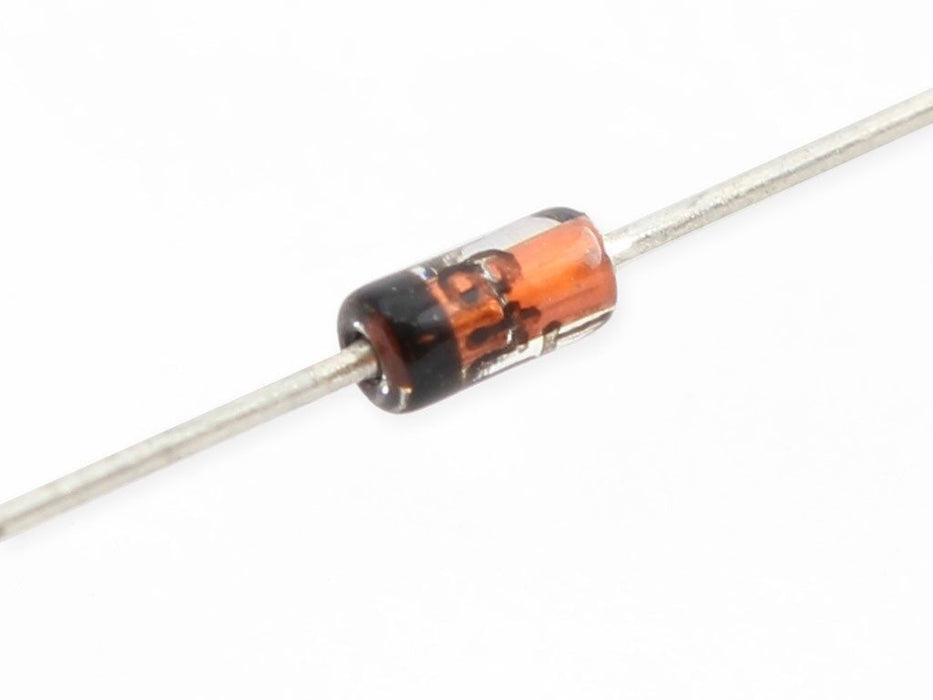

The 1N916 is a silicon epitaxial Switching Diode with compression bond construction.

Included:
  • 1N916

This item features:

  • Compression Bond Construction Package (DO-35)
  • Low Current Leakage
  • Marking: Cathode Band and Type Number
  • Operating Temperature: -55OC to +150OC
  • Storage Temperature: -55O C to +150O C
  • Maximum Thermal Resistance; 300O C/W Junction To Ambient
  • Repetitive Reverse Voltage Vrrm Max: 100V
  • Forward Current If(AV): 300mA
  • Forward Voltage VF Max: 1V
  • Reverse Recovery Time trr Max: 4ns
  • Forward Surge Current Ifsm Max: 4A
Condition:
  • New and Authentic Component(s) - 1N916 Silicon epitaxial Switching Diode with compression bond construction.
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
