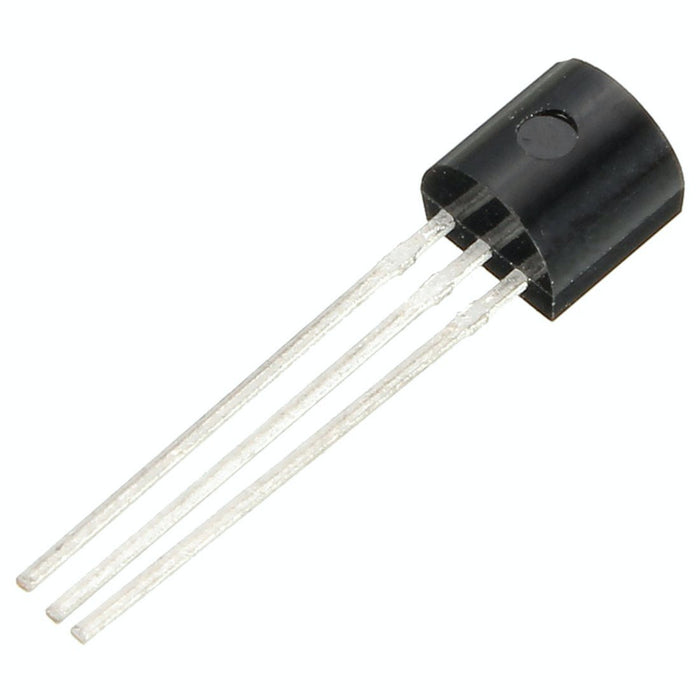

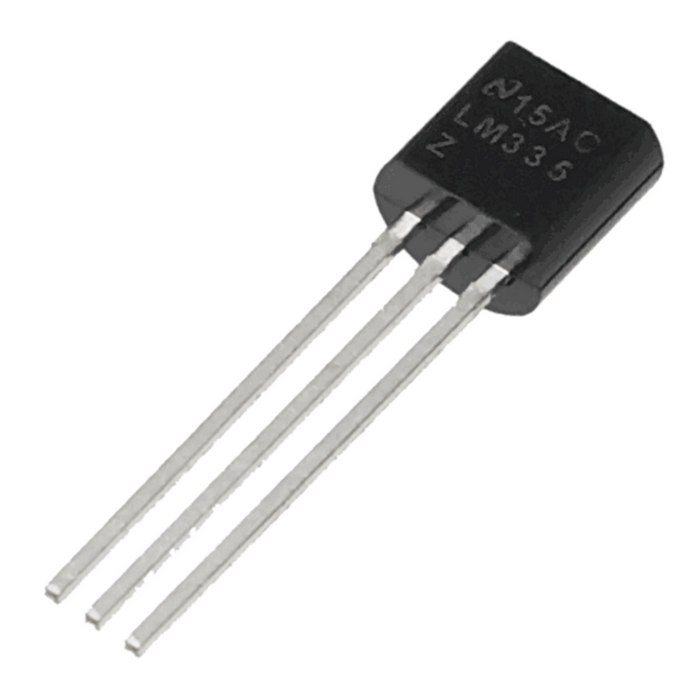

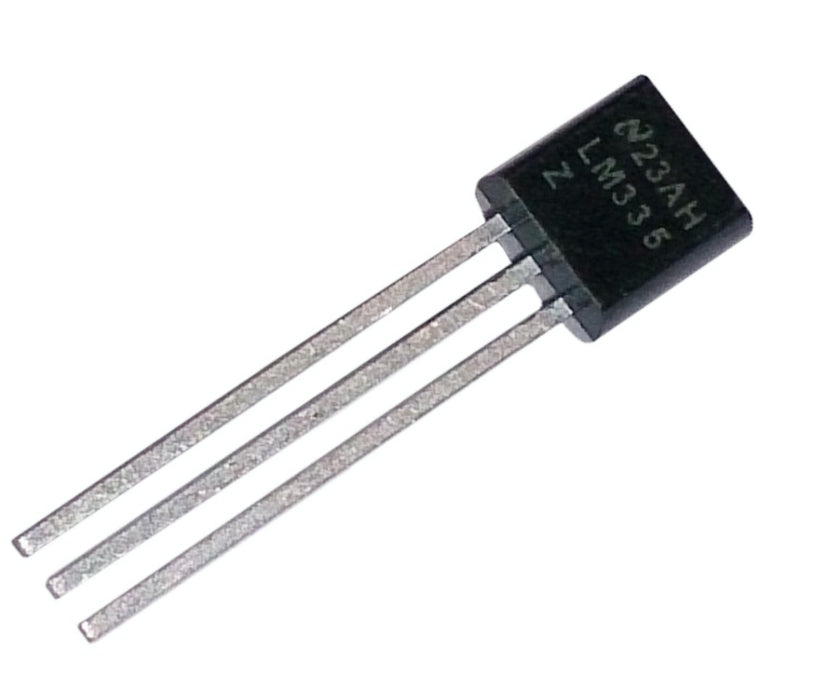

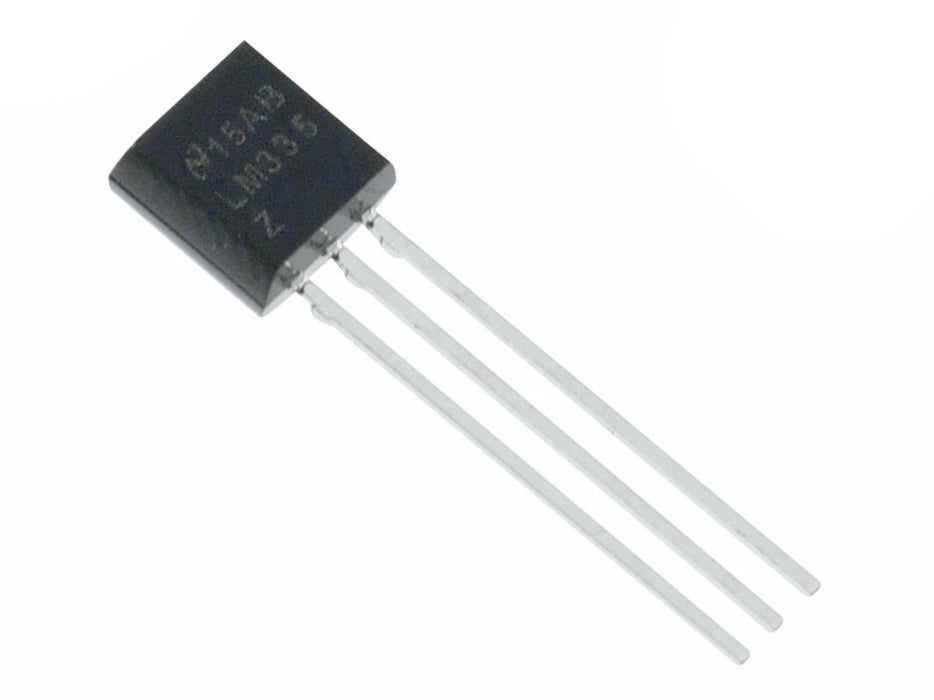

LM335Z/NOPB LM335Z LM335 ±2°C Analog Output Temperature Sensor with 10mV/K Gain in Hermetic Package TO-92

Description:

The LM335 series are precision, easily-calibrated, integrated circuit temperature sensors. Operating as a 2-terminal zener, the LM335 has a breakdown voltage directly proportional to absolute temperature at 10 mV/°K. With less than 1-Ω dynamic impedance, the device operates over a current range of 400 µA to 5 mA with virtually no change in performance. When calibrated at 25°C, the LM335 has typically less than 1°C error over a 100°C temperature range. Unlike other sensors, the LM335 has a linear output.

Applications for the LM335 include almost any type of temperature sensing over a –40°C to 100°C temperature range. The low impedance and linear output make interfacing to readout or control circuitry are especially easy.

Included:

• LM335Z/NOPB

This item features:

• Directly Calibrated to the Kelvin Temperature Scale
• 1°C Initial Accuracy Available
• Operates from 400 µA to 5 mA
• Less than 1-Ω Dynamic Impedance, 200°C Overrange
• Easily Calibrated, Wide Operating Temperature Range

Condition:

• New and Authentic Component(s) - LM335Z/NOPB LM335Z LM335 ±2°C Analog Output Temperature Sensor with 10mV/K Gain in Hermetic Package TO-92.
• Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
