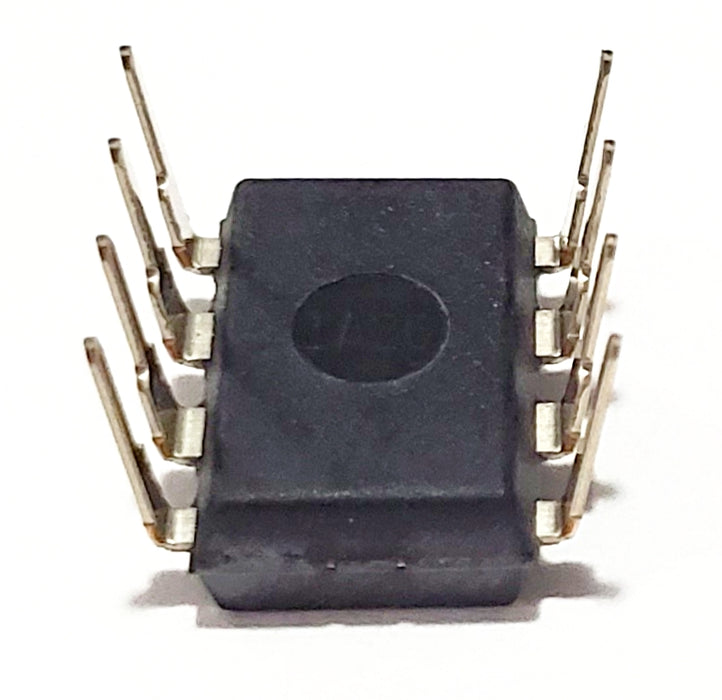

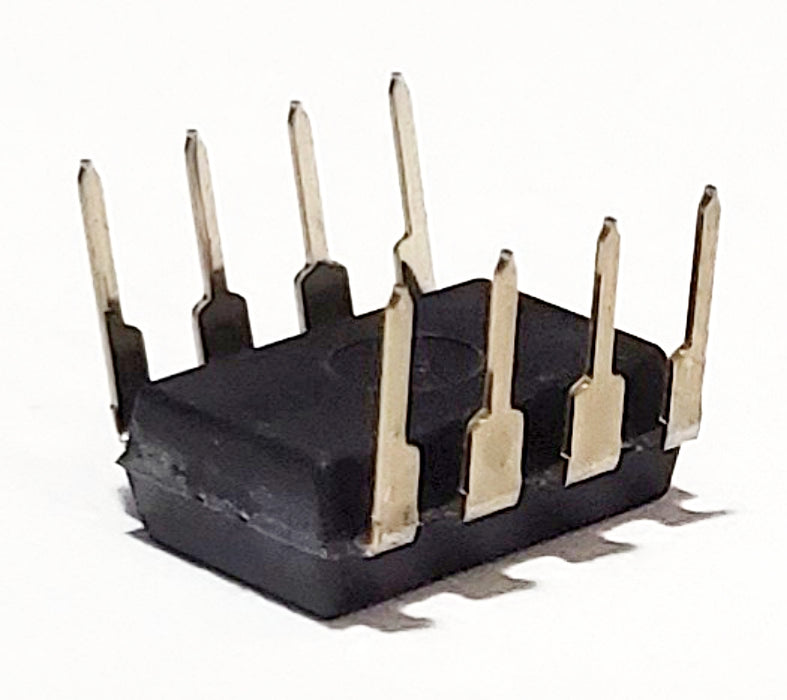

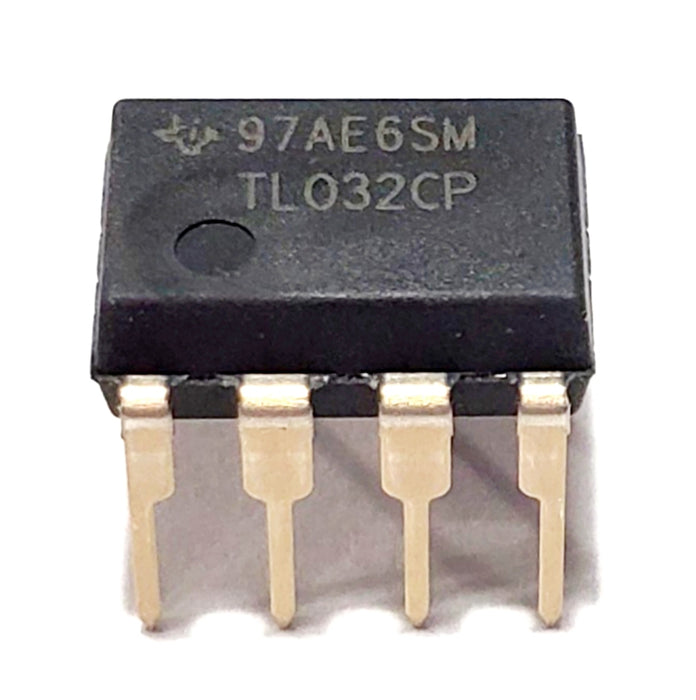

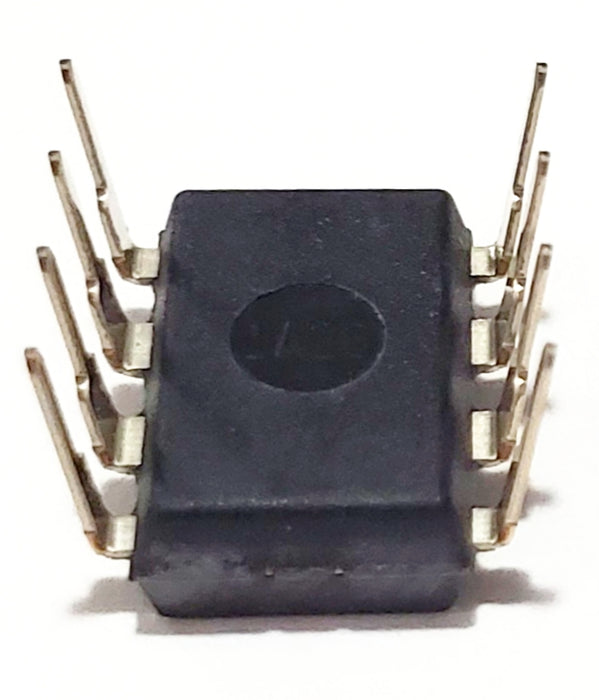

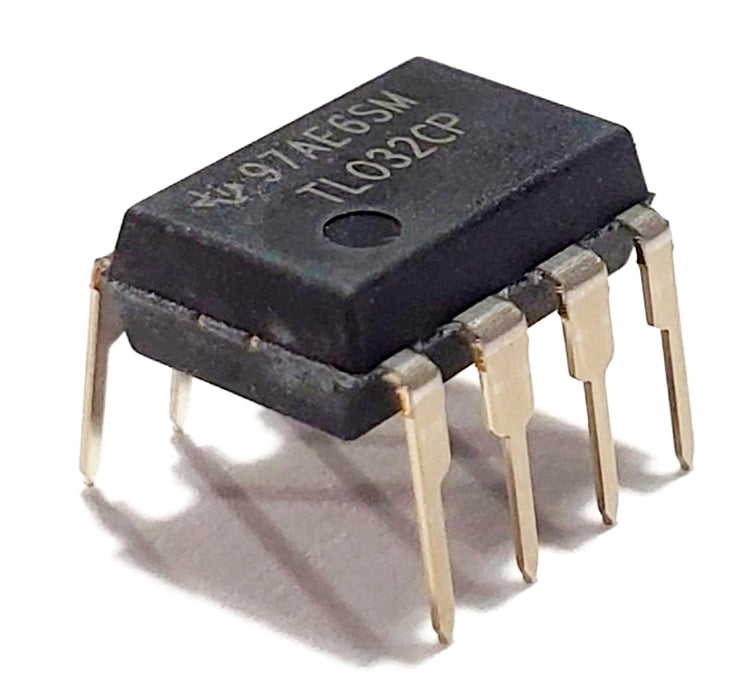

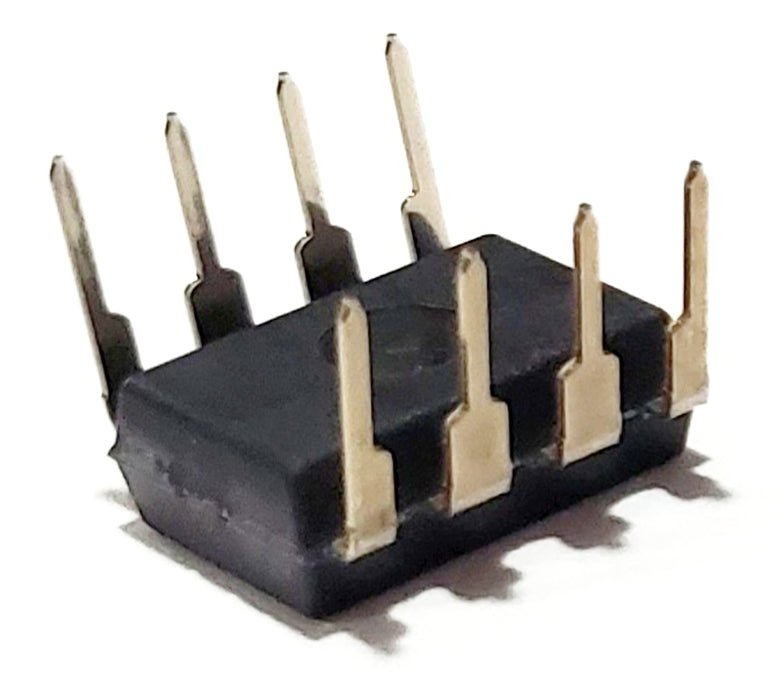

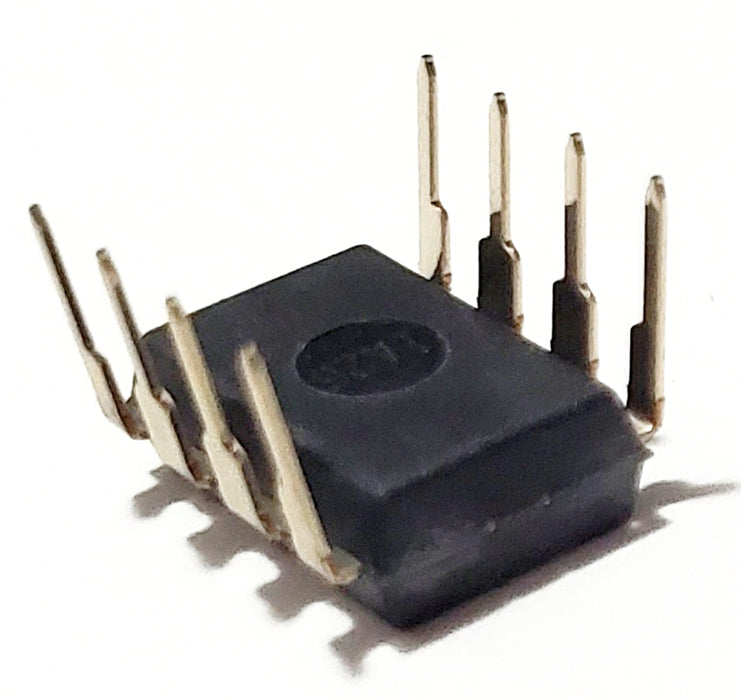

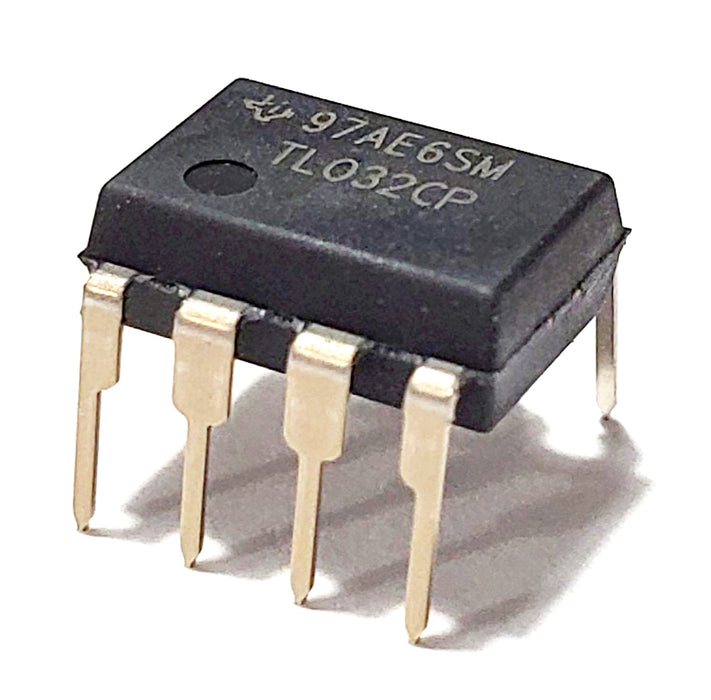

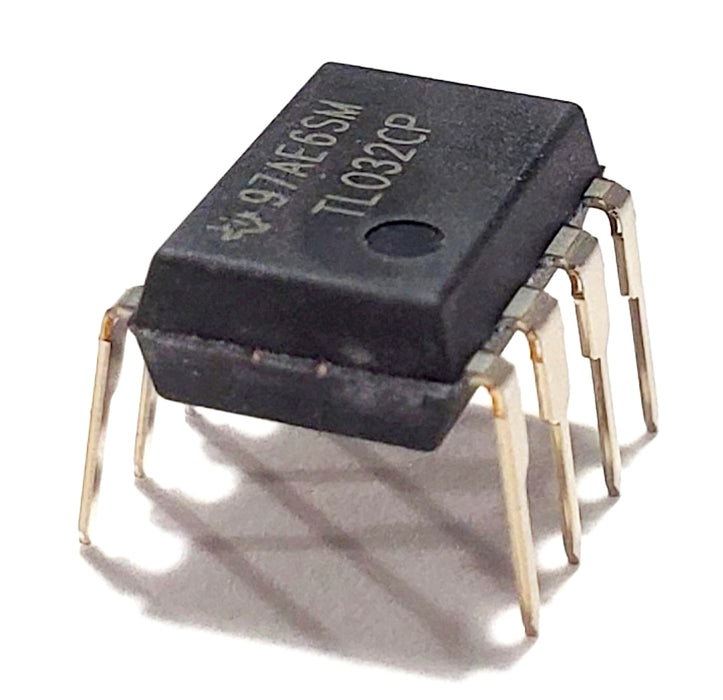

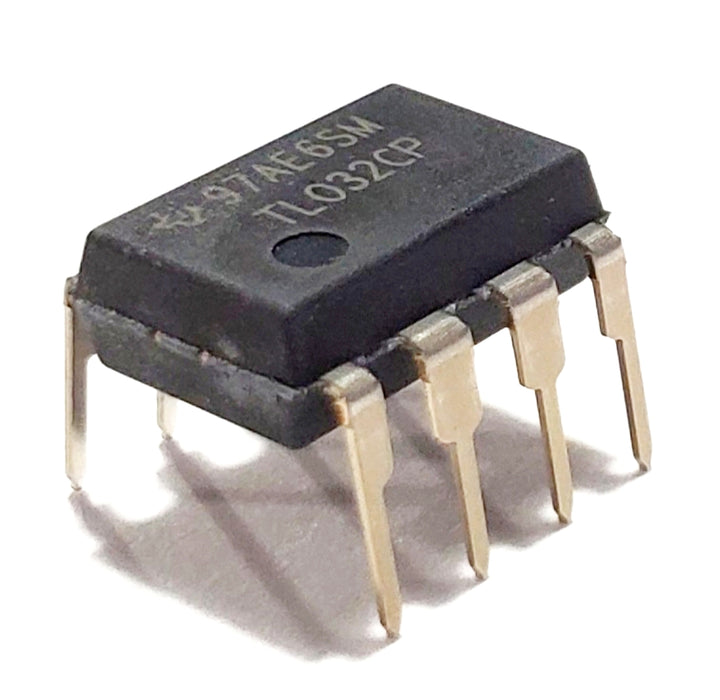

TL032CP TL032 Dual Enhanced JFET Low-Power Precision Operational Amplifier Op Amp Breadboard-Friendly IC DIP-8

Description:

The TL032 series of JFET-input operational amplifiers offer improved dc and ac characteristics over the TL06x family of low-power BiFET operational amplifiers. On-chip zener trimming of offset voltage yields precision grades as low as 1.5 mV (TL031A) for greater accuracy in dc-coupled applications. The Texas Instruments improved BiFET process and optimized designs also yield improved bandwidths and slew rates without increased power consumption. The TL032 devices are pin-compatible with the TL06x and can be used to upgrade existing circuits or for optimal performance in new designs.

BiFET operational amplifiers offer the inherently higher input impedance of the JFET-input transistors without sacrificing the output drive associated with bipolar amplifiers. This higher input impedance makes the TL032 amplifiers better suited for interfacing with high-impedance sensors or very low-level ac signals. These devices also feature inherently better ac response than bipolar or CMOS devices having comparable power consumption.

The TL032 family has been optimized for micropower operation, while improving on the performance of the TL06x series.

Because BiFET operational amplifiers are designed for use with dual power supplies, care must be taken to observe common-mode input-voltage limits and output swing when operating from a single supply. DC biasing of the input signal is required, and loads should be terminated to a virtual-ground node at mid-supply.

The TL032 devices are fully specified at ±15 V and ±5 V. When moving from BiFET to CMOS amplifiers, particular attention should be paid to slew rate, bandwidth requirements, and output loading.

Included:

• 1 x TL032CP

This item features:

• Direct Upgrades for the TL06x Low-Power BiFETs
• Low Power Consumption: 6.5 mW/Channel Typical
• On-Chip Offset-Voltage Trimming for Improved DC Performance
• Higher Slew Rate and Bandwidth Without Increased Power Consumption

Condition:

• New and Authentic Component(s) - Texas Instruments TL032CP Dual Enhanced JFET Low-Power Precision Operational Amplifier
  ICs.
• Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
