Description:
The small size and low power consumption (34µA per channel maximum) of the OPA347 make it ideal for portable and battery-powered applications. The input range of the OPA347 extends 200mV beyond the rails, and the output range is within 5mV of the rails. The OPA347 also features an excellent speed/power ratio with a bandwidth of 350kHz.
The OPA347 can be operated with a single or dual power supply from 2.3V to 5.5V. All models are specified for operation from –55°C to +125°C.
Included:

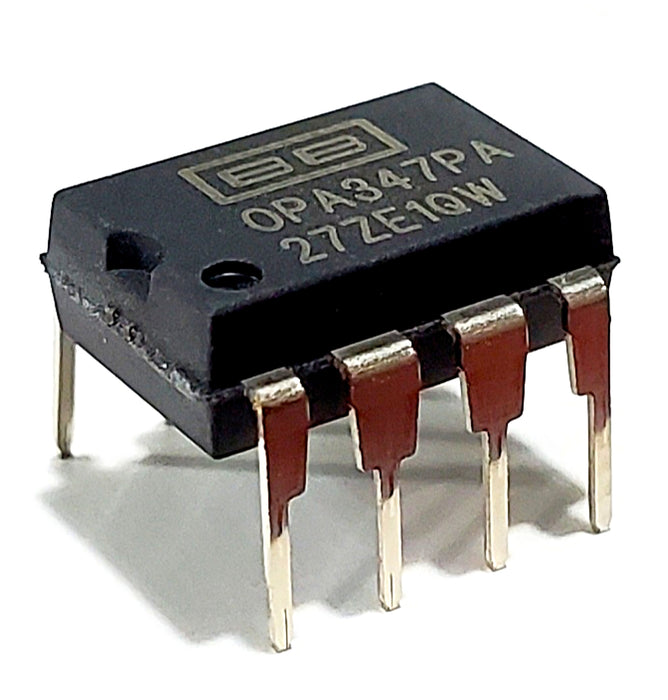

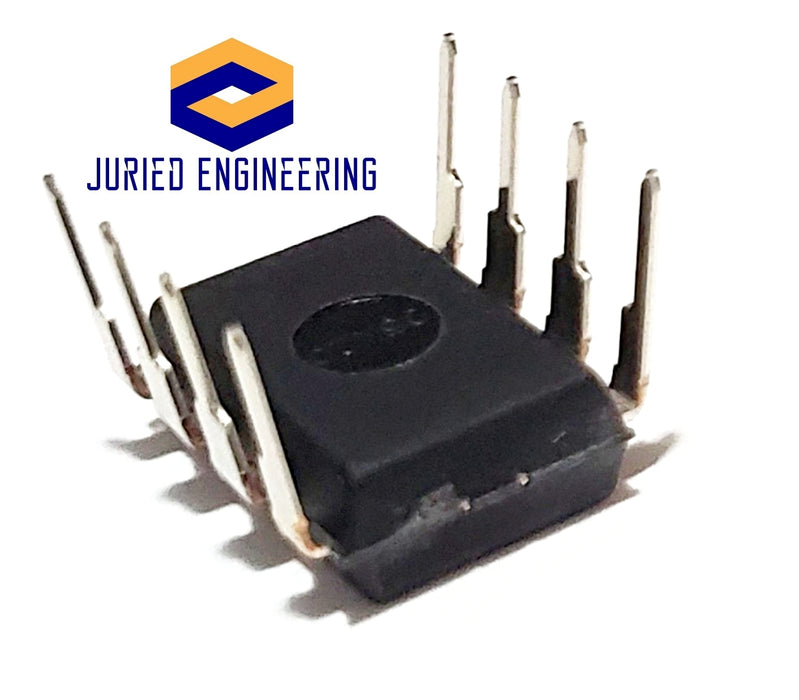

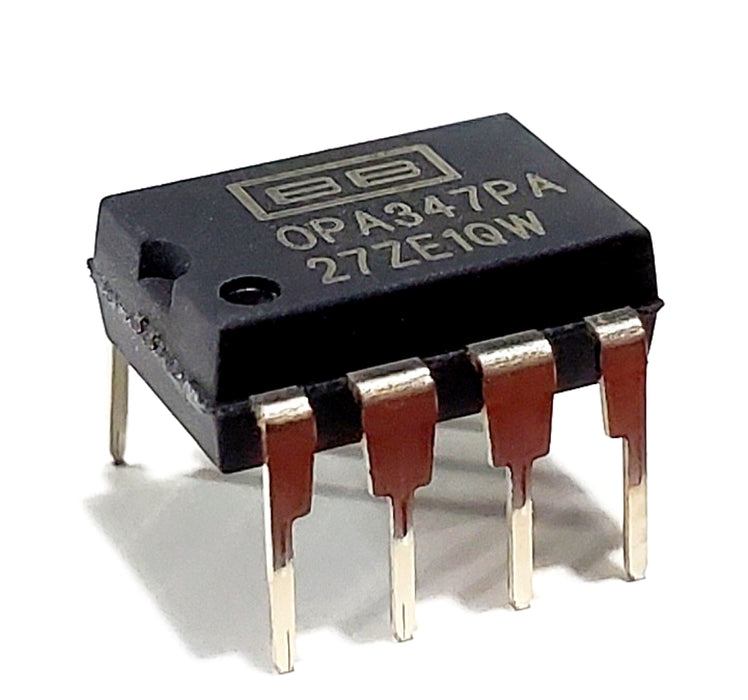

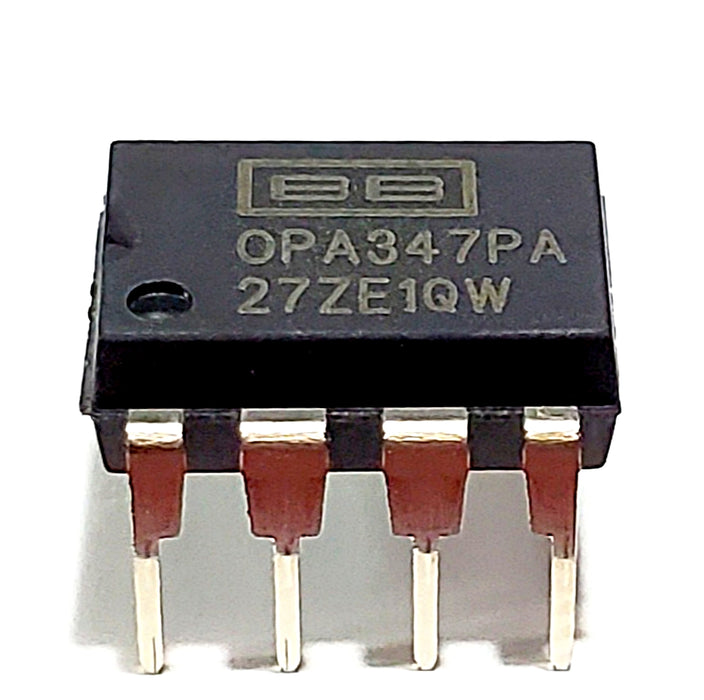

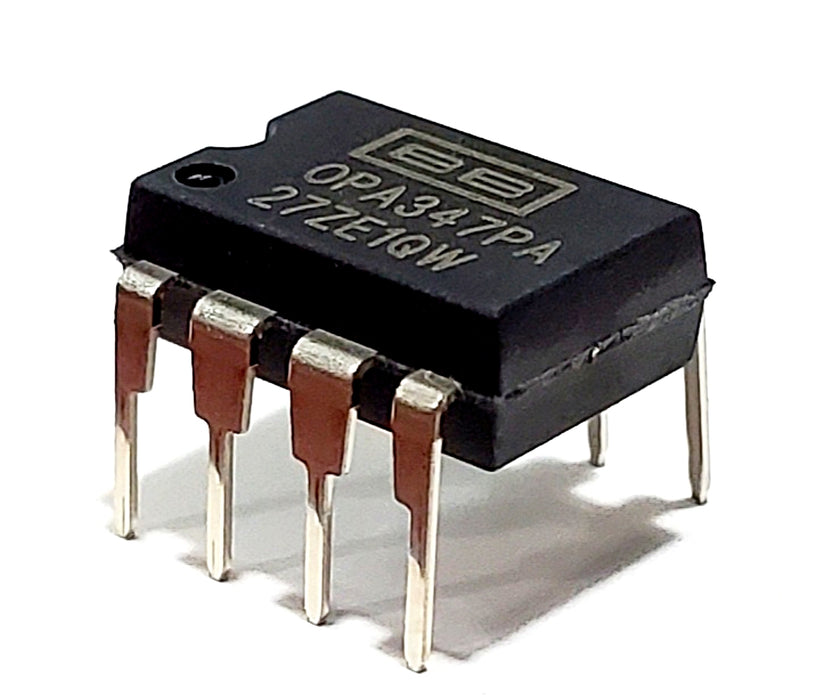

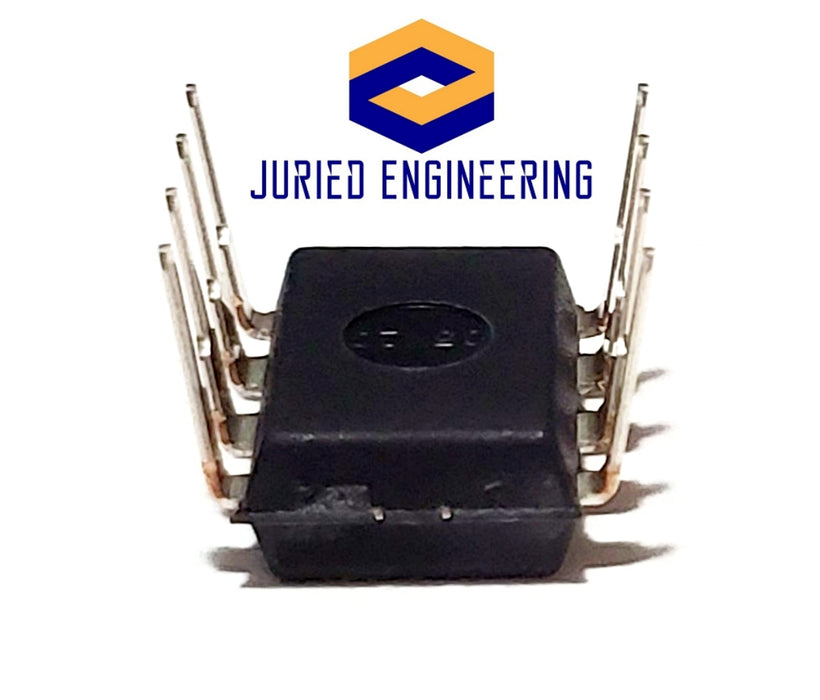

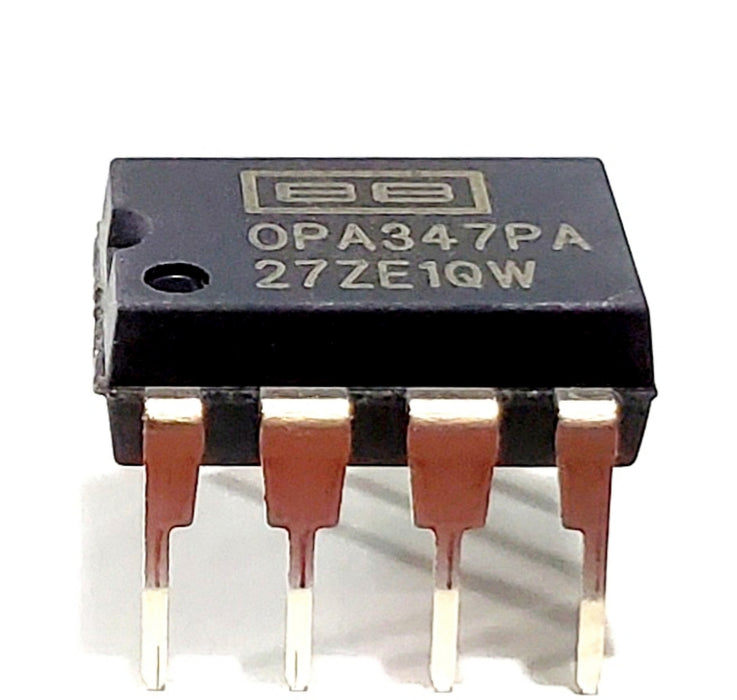

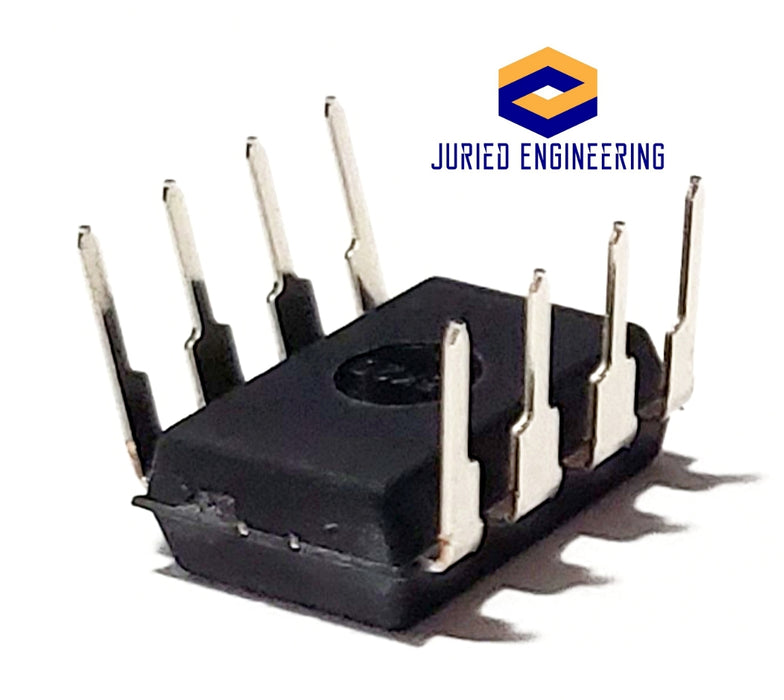

OPA347PA
This item features:
LOW IQ: 20µA
HIGH SPEED/POWER RATIO WITH BANDWIDTH: 350kHz
RAIL-TO-RAIL INPUT AND OUTPUT
SINGLE SUPPLY: 2.3V to 5.5V
Condition:
- New and Authentic Component(s) - OPA347PA Micropower Rail-To-Rail Operational Amplifier
- Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
General details:
We are expanding on a daily basis. If you do not see the part, or quantity of the part, you are looking for, please, let us know. We will do our best to accommodate you.
