by Juried Engineering
$4.95

Description:

The OPA2336 microPower CMOS operational amplifiers are designed for battery-powered applications. They operate on a single supply with operation as low as 2.1V. The output is rail-to-rail and swings to within 3mV of the supplies with a 100k load. The common-mode range extends to the negative supply ideal for single-supply applications.

In addition to small size and low quiescent current (20µA/amplifier), they feature low offset voltage (125µV max), low input bias current (1pA), and high open-loop gain (115dB). The OPA2336 features completely independent circuitry for lowest crosstalk and freedom from interaction between channels.

Included:

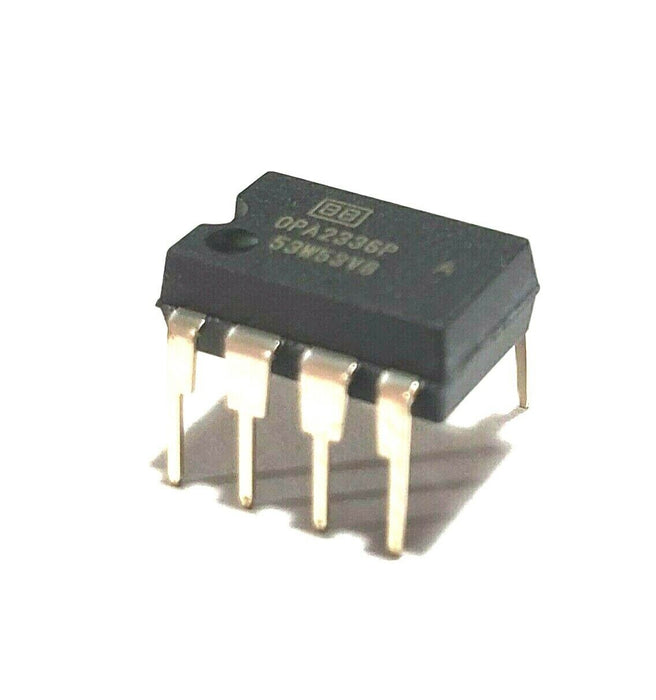

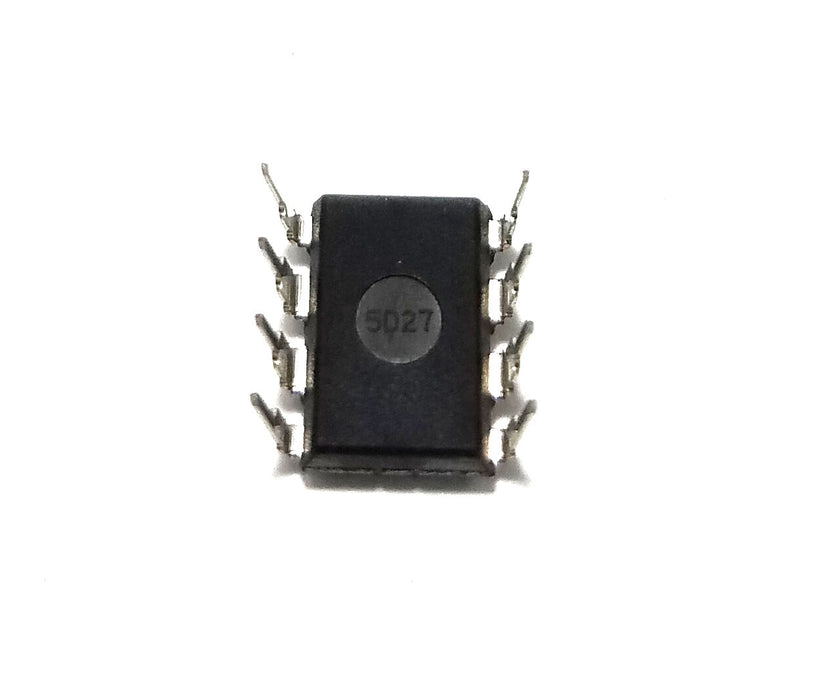

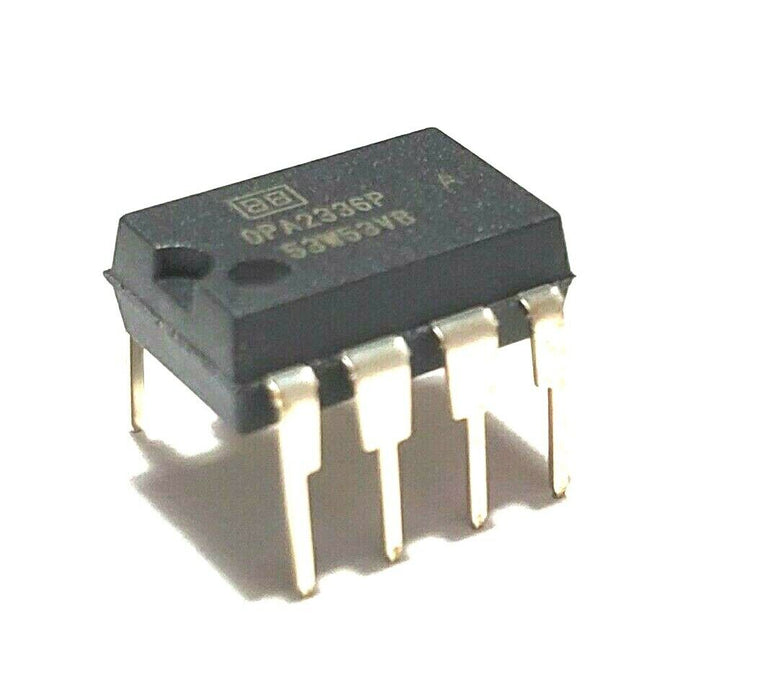

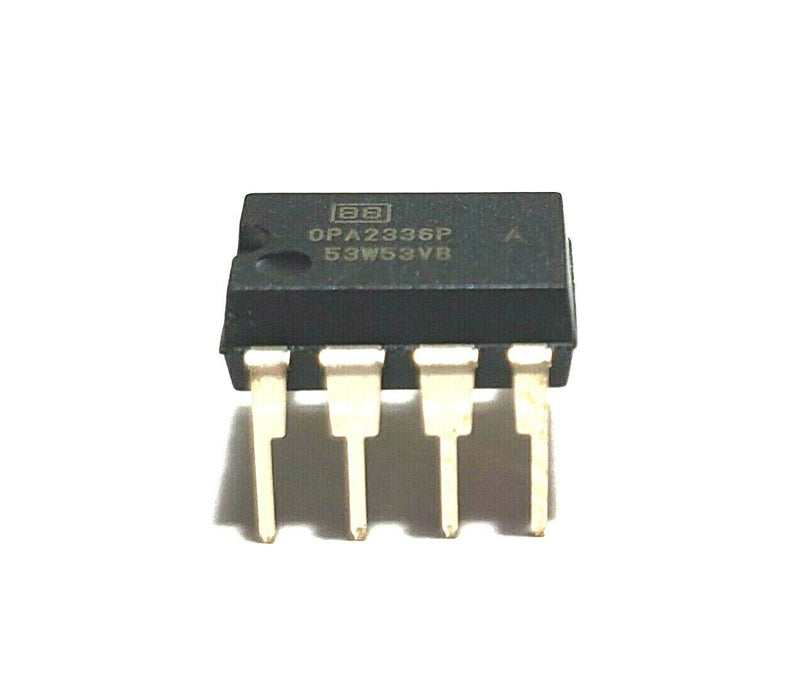

  • OPA2336PA
This item features:
  • SINGLE-SUPPLY OPERATION
  • RAIL-TO-RAIL OUTPUT (within 3mV)
  • microPOWER: IQ = 20µA/Amplifier
  • micro SIZE PACKAGES
  • LOW OFFSET VOLTAGE: 125µV max
  • SPECIFIED FROM VS = 2.3V to 5.5V
  • SINGLE, DUAL, AND QUAD VERSIONS
  • APPLICATIONS
    • BATTERY-POWERED INSTRUMENTS
    • PORTABLE DEVICES
    • HIGH-IMPEDANCE APPLICATIONS
    • PHOTODIODE PRE-AMPS
    • PRECISION INTEGRATORS
    • MEDICAL INSTRUMENTS
    • TEST EQUIPMENT
Condition:
      • New and Authentic Component(s) - OPA2336PA Single-Supply MicroPower CMOS Operational Amplifiers MicroAmplifier Series Operational Amplifiers.
      • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
