Description:
The NE5534 devices are high-performance operational amplifiers combining excellent dc and ac characteristics. Some of the features include very low noise, high output-drive capability, high unity-gain and maximum-output-swing bandwidths, low distortion, and high slew rate.
These operational amplifiers are compensated internally for a gain equal to or greater than three. Optimization of the frequency response for various applications can be obtained by use of an external compensation capacitor between COMP and COMP/BAL. The devices feature input-protection diodes, output short-circuit protection, and offset-voltage nulling capability with use of the BALANCE and COMP/BAL pins.
Included:

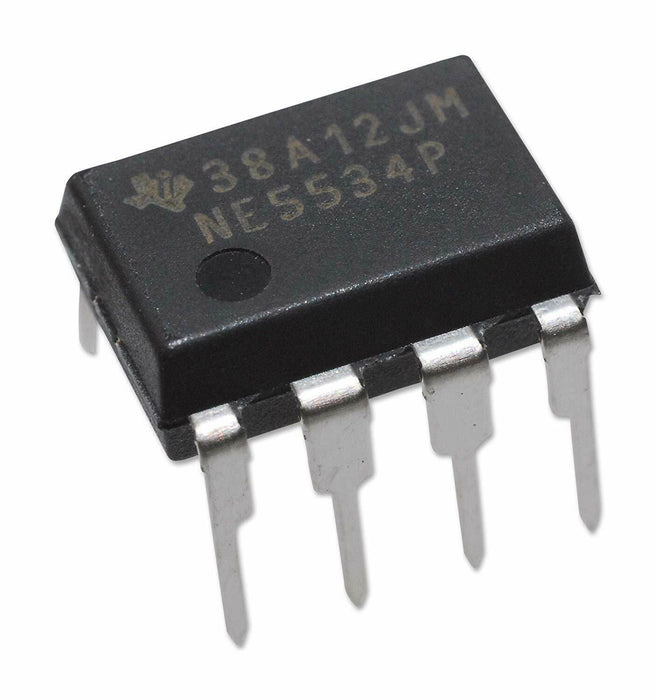

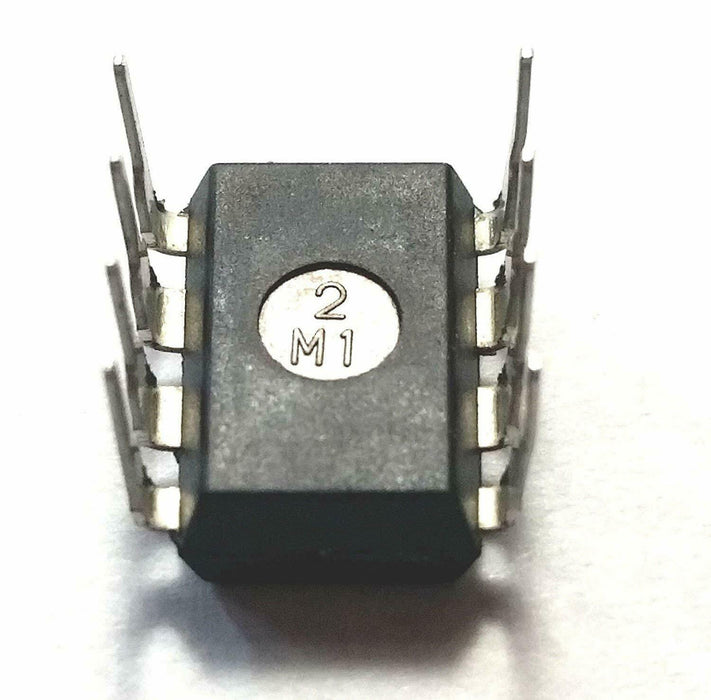

NE5534P
This item features:
- Equivalent Input Noise Voltage 3.5 nV/√Hz Typ and High Slew Rate 13 V/µs Typ
- Unity-Gain Bandwidth 10 MHz Typ and Wide Supply-Voltage Range ±3 V to ±20 V
- Common-Mode Rejection Ratio 100 dB Typ and Low Harmonic Distortion
- High DC Voltage Gain 100 V/mV Typ and Offset Nulling Capability
- Peak-to-Peak Output Voltage Swing 32 V Typ With VCC± = ±18 V and RL = 600 Ω and External Compensation Capability
Condition:
- New and Authentic Component(s) - NE5534P Low-Noise High-Speed Audio Operational Amplifier
ICs. - Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
