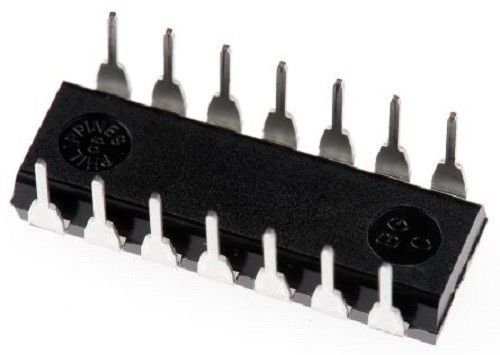

LM319N LM319 - High Speed Dual Comparator IC

$0.55

Description:

The LM319N are precision high-speed dual comparators fabricated on a single monolithic chip. They are designed to operate over a wide range of supply voltages down to a single 5-V logic supply and ground. They have higher gain and lower input currents than devices such as the LM710. The uncommitted collector of the output stage makes the LM119 compatible with RTL, DTL, and TTL, as well as capable of driving lamps and relays at currents of up to 25 mA.

Included:

  • LM319N

This item features:

  • Two Independent Comparators
  • Operates from a Single 5-V Supply
  • Typically 80-ns Response Time at ±15 V
  • Minimum Fan-out of 2 Each Side
  • Maximum Input Current of 1 µA Over Temperature
  • Inputs and Outputs can be Isolated from System Ground
  • High Common-Mode Slew Rate
 Condition:
  • New and Authentic Component(s) - LM319N High Speed Dual Comparator ICs.
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
