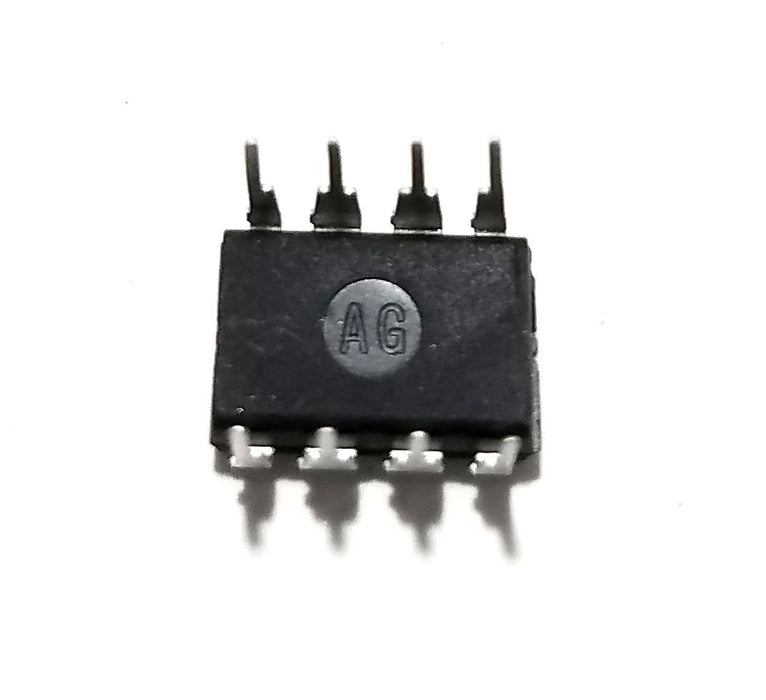

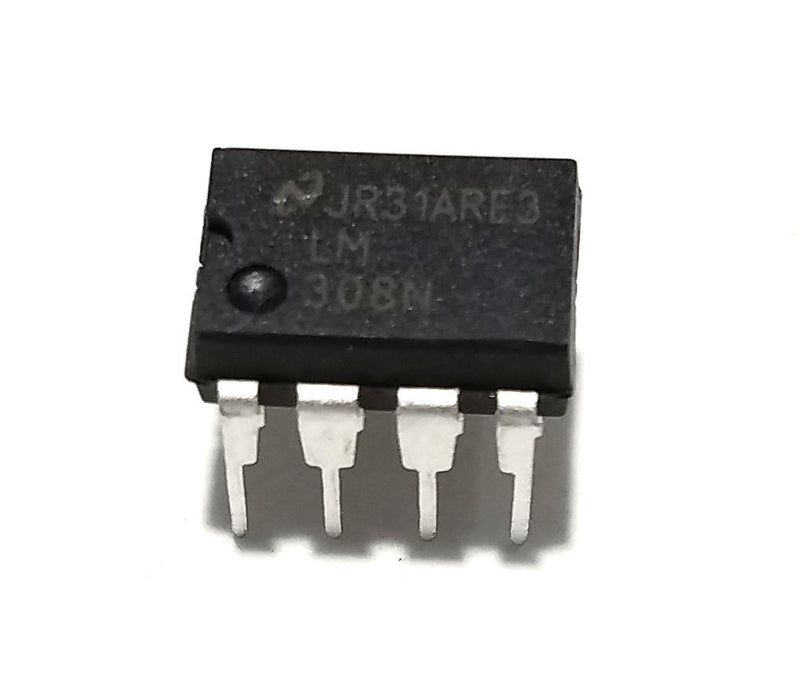

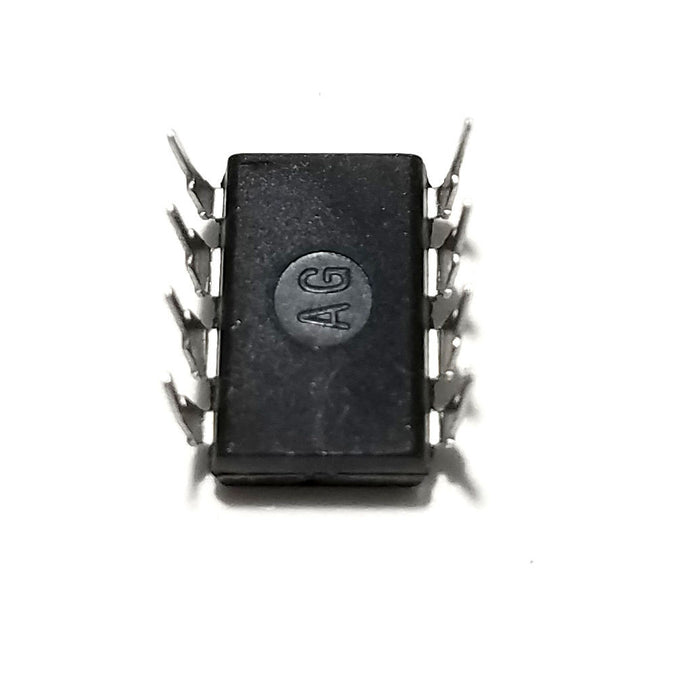

LM308N LM308 Precision Operational Amplifier Op Amp 18V 500mW Breadboard-Friendly IC DIP-8
LM308N — Precision Operational Amplifier
The LM308N is a classic precision op-amp renowned for its exceptionally low input bias current and outstanding DC accuracy. With specs a full order of magnitude better than standard FET amplifiers across a wide temperature range, it's the go-to choice for precision instrumentation, long-duration integrators, and analog timing circuits.
Need to hold a voltage for minutes or hours? The LM308N can drive integrators with drift under 500 μV/sec using capacitors as small as 1 μF — a feat impossible with conventional amplifiers.
Key Specifications
- Max Input Bias Current: 3.0 nA over temperature
- Offset Current: <400 pA over temperature
- Supply Current: Only 300 μA (even in saturation)
- Supply Voltage: ±2V to ±20V
- Max Power: 500 mW
- Package: DIP-8 (Breadboard-Friendly)
What's Included
- 1× LM308N (New & Authentic)
⚠️ Counterfeit Warning: Be mindful of cheap counterfeits on the market. Our components are sourced from authorized distributors.
Need a larger quantity or don't see what you're looking for? Contact us — we're expanding our inventory daily.
