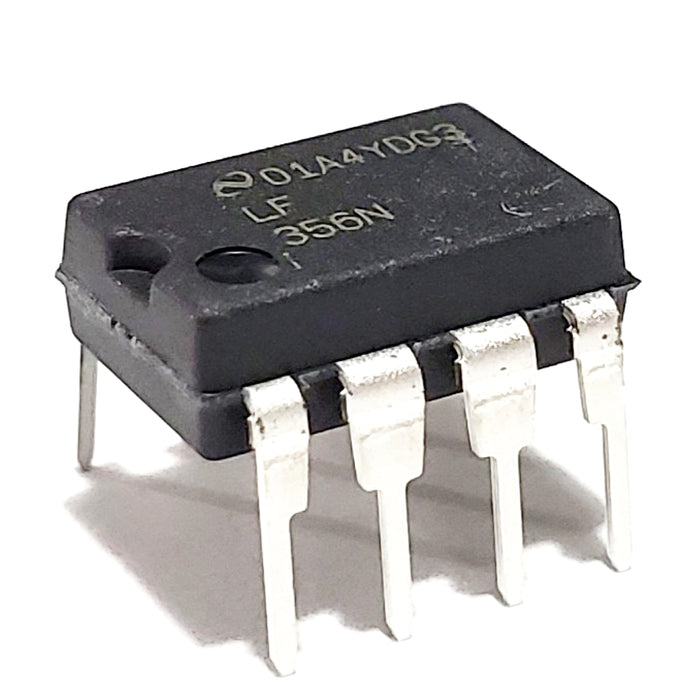

LF356N LF356 Wide Bandwidth JFET Input Op-Amp IC

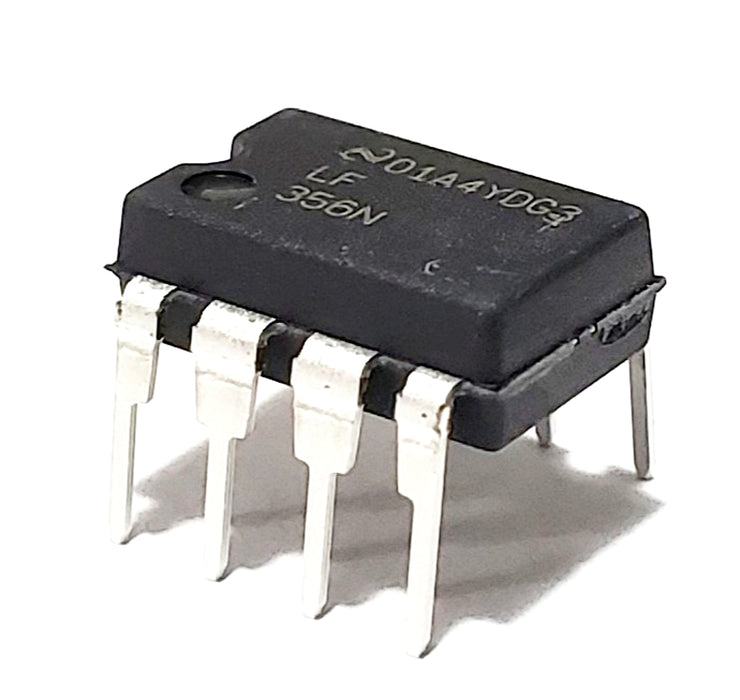

LF356N LF356 Wide Bandwidth JFET Input Op-Amp IC

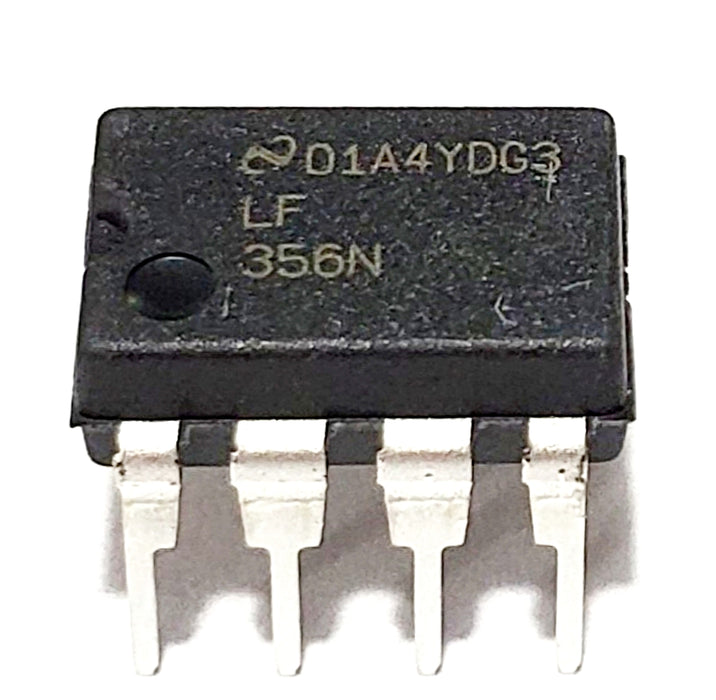

LF356N LF356 Wide Bandwidth JFET Input Op-Amp IC

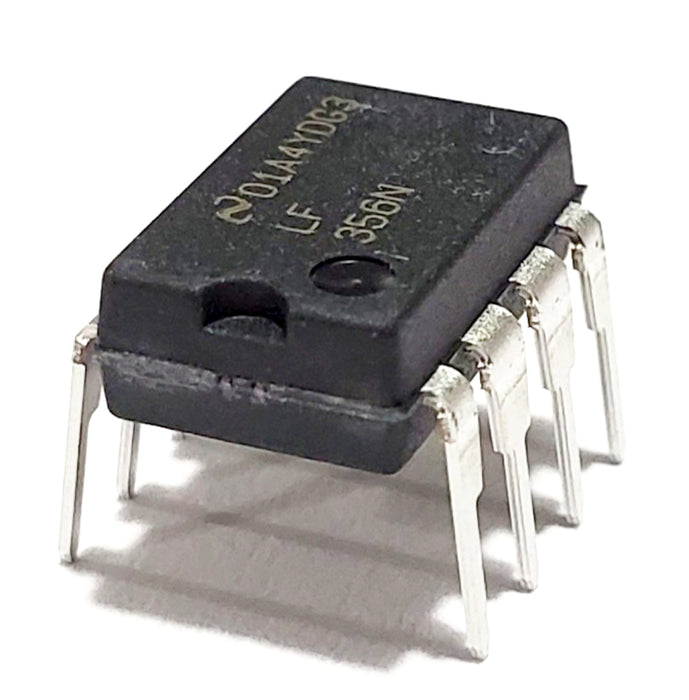

LF356N LF356 Wide Bandwidth JFET Input Op-Amp IC

LF356N LF356 Wide Bandwidth JFET Input Op-Amp IC

by Juried Engineering
$0.79

Description:

The LF356 devices are the first monolithic JFET input operational amplifiers to incorporate well-matched, high-voltage JFETs on the same chip with standard bipolar transistors (BI-FET Technology).

These amplifiers feature low input bias and offset currents/low offset voltage and offset voltage drift, coupled with offset adjust, which does not degrade drift or common-mode rejection.

The devices are also designed for high slew rate, wide bandwidth, extremely fast settling time, low voltage and current noise and a low 1/f noise corner.

Included:

LF356N

This item features:

Advantages:

  • Replace Expensive Hybrid and Module FET Op Amps
  • Rugged JFETs Allow Blow-Out Free Handling Compared With MOSFET Input Devices
  • Excellent for Low Noise Applications Using Either High or Low Source Impedance
  • Very Low 1/f Corner
  • Offset Adjust Does Not Degrade Drift or Common-Mode Rejection as in Most Monolithic Amplifiers
  • New Output Stage Allows Use of Large Capacitive Loads (5,000 pF) Without Stability Problems
  • Internal Compensation and Large Differential Input Voltage Capability
  • Common FeaturesLow Input Bias Current: 30 pA
  • Low Input Offset Current: 3 pA
  • High Input Impedance: 1012 Ω
  • Low Input Noise Current: 0.01 pA/Hz
  • High Common-Mode Rejection Ratio: 100 dB
  • Large DC Voltage Gain: 106 dB

Uncommon Features

  • Extremely Fast Settling Time to 0.01%:1.5¼s for the LF356
  • Fast Slew Rate: 12 V/µs for the LF356
  • Wide Gain Bandwidth: 5 MHz for the LF356
  • Low Input Noise Voltage: 12 nV/Hz for the LF356

Applications:

  • Precision High-Speed Integrators
  • Fast D/A and A/D Converters
  • High Impedance Buffers
  • Wideband, Low Noise, Low Drift Amplifiers
  • Logarithmic Amplifiers
  • Photocell Amplifiers
  • Sample and Hold Circuits

Condition:

  • New and Authentic Component(s) - LF356N Wide Bandwidth JFET Input Operational Amplifier ICs
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.

General details:
