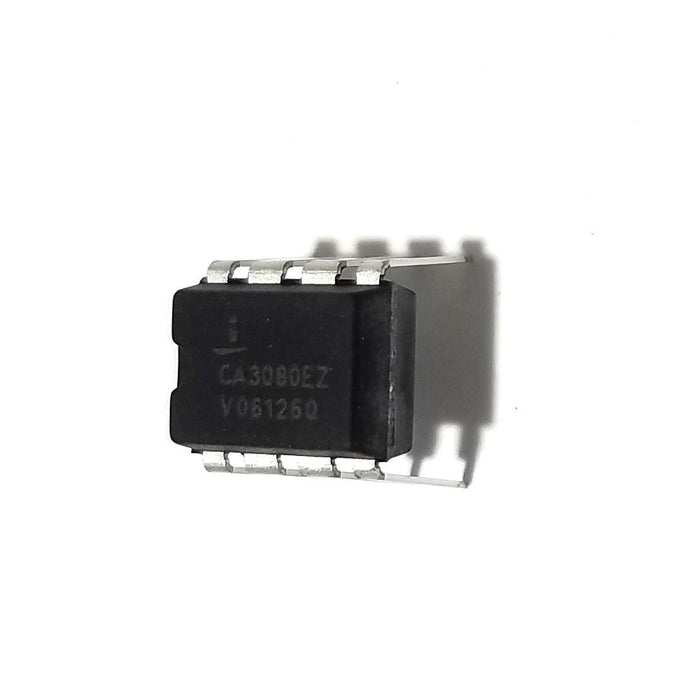

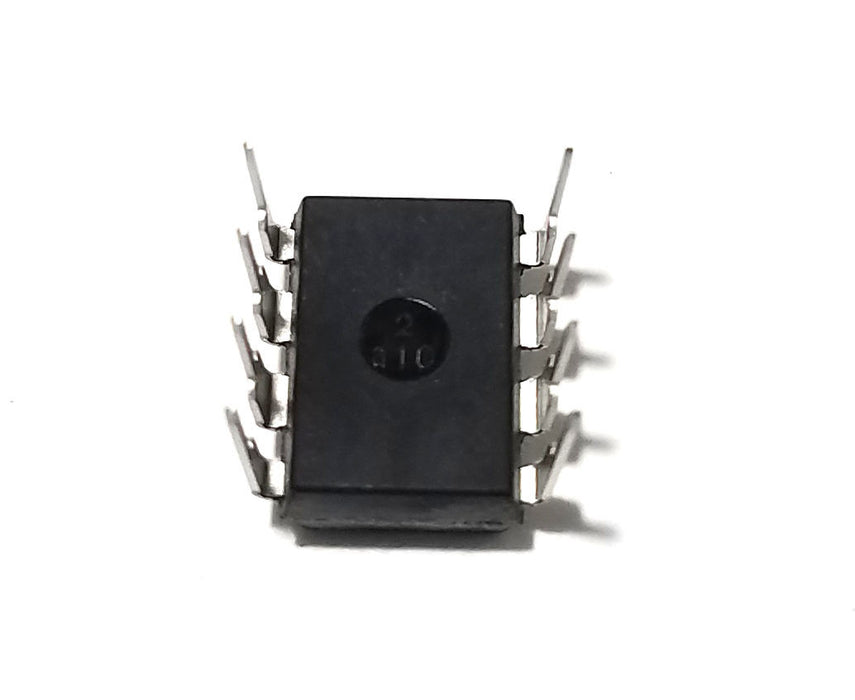

CA3080EZ CA3080 - Operational-Transconductance Amplifier

$6.49

Description:

The CA3080 OTAs are Gatable-Gain Blocks which utilize the unique operational-transconductance amplifier (OTA) concept described in Application Note AN6668, "Applications of the CA3080 and CA3080A High-Performance Operational Transconductance Amplifiers".

The CA3080 OTAs have differential input and a single-ended, push-pull, class A output. In addition, these types have an amplifier bias input which may be used either for gating or for linear gain control. These types also have a high output impedance and their transconductance (gM) is directly proportional to the amplifier bias current (IABC).

The CA3080 OTAs are notable for their excellent slew rate (50V/us), which makes them especially useful for multiplexer and fast unity-gain voltage followers. These types are especially applicable for multiplexer applications because power is consumed only when the devices are in the "ON" channel state.

Included:

  • CA3080EZ

This item features:

  • Slew Rate (Unity Gain, Compensated) 50V/us
  • Adjustable Power Consumption 10uW to 30uW
  • Flexible Supply Voltage Range +-2V to +-15V
  • Fully Adjustable Gain 0 to gMRL Limit
  • Tight gM Spread:
    • CA3080 2:1
    • CA3080A 1.6:1
  • Extended gM Linearity 3 Decades

 Condition:

  • New and Authentic Component(s) - CA3080EZ 2MHz, Operational TransconductanceAmplifier (OTA).
  • Friendly Note: Be mindful of the many, inexpensive, counterfeits available on the market.
